Grizzly T10052 Instructions Manual

1. Overloading this tool can cause injury
from flying parts. Do not exceed the
machine capacities.
2. Secure bench hand brake to a stur-
dy surface before using. Tipping may
occur during use and the machine
could fall, causing injury or property
damage.
4. Always chamfer and de-burr sharp
sheet metal edges before bending.
Sharp edges on sheet metal can result
in severe cuts.
5. NEvER place your hands between the
dies and bending fingers.
6. Always wear
approved safety glasses when using
this machine.
7. Inspect the bench hand brake for any
cracked components or loose fasten-
ers. Correct any problems before use.
Loose hardware or cracks could result
in sudden, unexpected movements dur-
ing use.
8. If at any time you are experiencing
difficulties performing the intended
operation, STOP using the tool and
contact our Technical Support at (570)
546-9663, or ask a qualified expert how
the operation should be performed.
If you need help with your new item, call our Tech
Support at: (570) 546-9663.
WARNINg: NO PORTION OF THIS MANUAL MAy BE REPRODUCED IN ANy SHAPE
OR FORM WITHOUT THE WRITTEN APPROvAL OF gRIzzLy INDUSTRIAL, INC.
leather gloves and
CopyriGhT © oCToBer, 2008 By Grizzly indusTriAl, inC.
#jB11237 prinTed in ChinA
MODEL T10052
14" PORTABLE
BENCHTOP BRAKE
INSTRUCTIONS

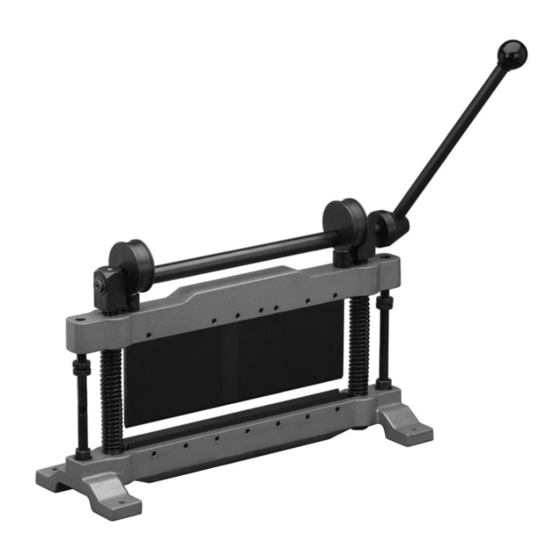

Figure 1.

Specifications

Maximum Bending Width ............................... 14"
Maximum Workpiece Thickness .............. 22 Ga.
Maximum Bending Angle ............................. 180°
Weight .......................................................49 lbs.
Damage to your eyes and hands could result
from using this machine without proper pro-
tective gear. Always wear safety glasses and
heavy gloves when operating this machine.
Model T10052.
