Summary of Contents for Sola AURA-3215

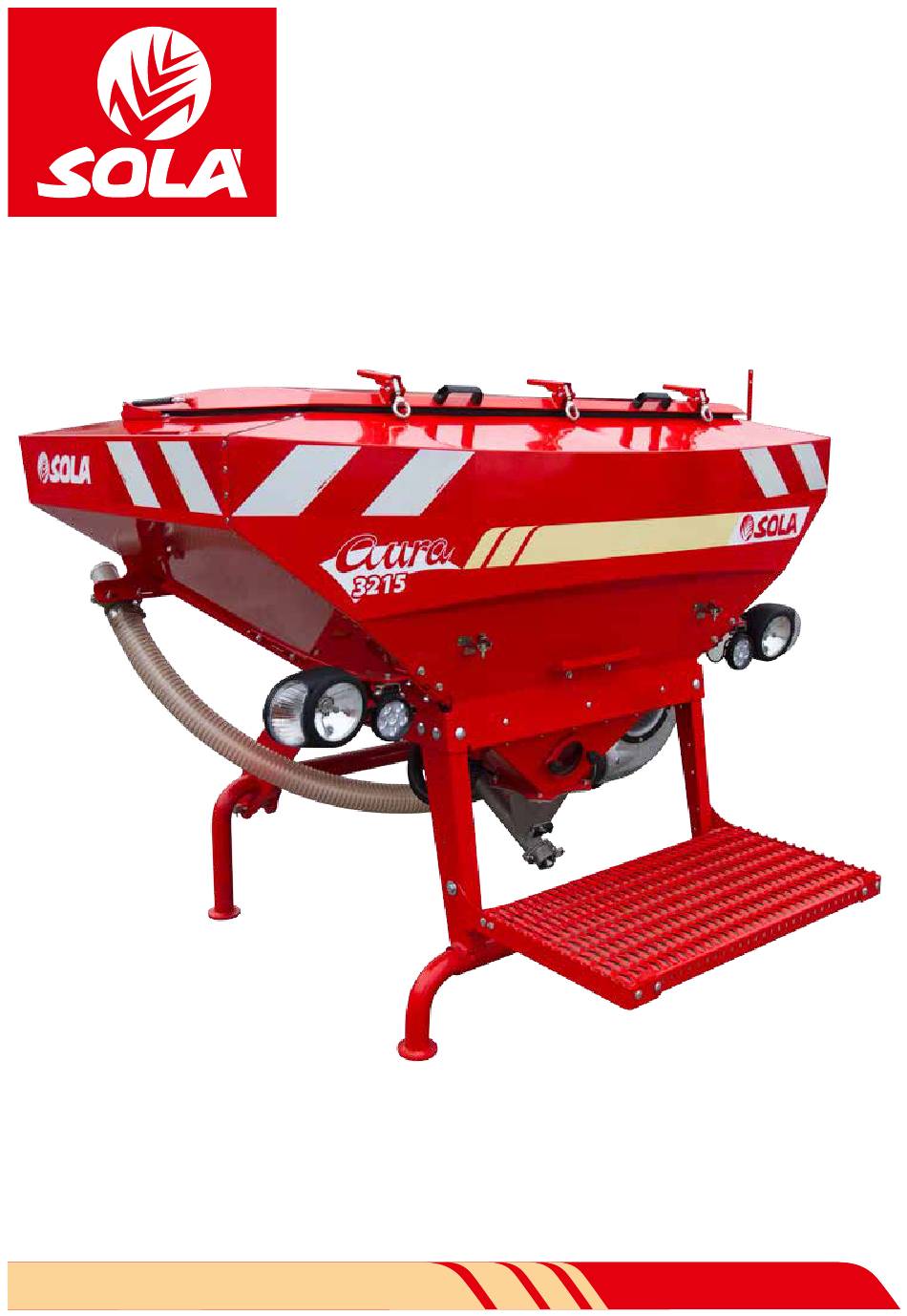

- Page 1 AURA-3215 Pressurized hopper STARTING MANUAL MAINTENANCE AND DOSAGE W W W. S O L A G R U P O. C O M...
- Page 2 SOLÀ seed drills, planters and fertilizer spreaders are manufactured in a highly specialized environment and our factory has a vast network of satisfied customers. SOLÀ machines use highly advanced technology and are guaranteed to work without malfunctions in a large variety of conditions. The SOLÀ machines are provided with easy-to-use and efficient devices and perform excellently with only minimum operator maintenance.
-
Page 3: Table Of Contents
5.3.2 ENDLESS DISPENSER .......................................17 5.3.2.1 ENDLESS DISPENSER WITH A SINGLE OUTLET ..........................17 5.3.2.2 TWO ENDLESS DISPENSERS WITH TWO OUTLETS .........................17 6. USAGE ADVICE ....................................18 6.1 AURA-3215 WITH PERFORMER ....................................18 6.2 AURA-3215 WITH ISOBUS ......................................18 7. MAINTENANCE ....................................19 7.1 CHECK-UP FREQUENCY ......................................19... -
Page 5: 1- Introduction
Safety Instructions. Basic concepts that are required to the presurized . Careful reading enables maximum opera- operate the machine are explained in the Starting, Adjusting hopper AURA-3215 tor efficiency, prevents accidents and damage, and increases and Maintenance sections. the performance’s capacity and life expectancy. -
Page 6: 2- Safetyinstructions
SAFETY INSTRUCTIONS 2- SAFETY INSTRUCTIONS 2.1 SAFETY SYMBOLS It is forbidden to ride on the machine during opera- In this operating manual you will find three different symbols rela- tion. Risk of serious physical injuries caused by ting to safety: falling. -
Page 7: Use Depending On Design
- Mount the group hydraulic multiplier only when the tractor’s engine is off. 2.3 USE ACCORDING TO DESIGN The AURA-3215 front hopper has been specifically designed to be used as FRONT DOSING HOPPER for seeds or fertiliser. The machine has been designed to work using an agricultural tractor with front lifting unity and three-point universal linkage. -
Page 8: Generaldescription
SAFETY INSTRUCTIONS 3- GENERAL DESCRIPTION 3.1 GENERAL OVERVIEW COUPLING ACCESSORIES TO REAR MACHINE TRANSPORT PIPES HOPPER PRESSURIZED cm de agua MANOMETRO TRANSPORTATION LIGHTS WORK LIGHT BULBS STEP TO ACCESS CONTROLLER SUPPORT FEET DISPENSER TURBINE HOPPER... -
Page 9: Technical Features
SAFETY INSTRUCTIONS 3.2 TECHNICAL FEATURES FEATURES VALUES HOPPER CAPACITY 1.350 L Empty weight 320 Kg Maximum Authorized Mass (M.M.A.) 2.100 Kg Width 2,10 m Length 1,36 m Height 1,62 m Height (with optional wheels) 1,82 m Dimensions of the filler opening 1,47 m x 0,82 m Category of the hitch Cat. -
Page 10: Commissioning
4. 1 COUPLING THE MACHINE TO THE TRACTOR DURING THE TRANSPORT OF THE MACHINE CLOSE THE CHOPPER TO PREVENT IT FROM COMPACTING THE MA- The front hopper AURA-3215 is equipped with a three-point linkage TERIAL IN THE METERING BOX. of cathegory 2. -
Page 11: Dosage
DOSAGE 5- DOSAGE IMPORTANT: DEPENDING ON THE WORK AND INS- TALLATION CONDITIONS, THE DISPENSER SYSTEM IS CAPABLE OF WORKING UP TO 180 Kg/Ha WITH AN OUT- 5.1 DISPENSER TYPES LET OF Ø80, AND UP TO 250Kg/Ha WITH AN OUTLET OF Ø120 (WORK WIDTH CONSIDERED IS OF 6 METERS). The machine may be configured with 3 types of dispensers: TO PERFORM SEED TRANSFILLING WITH THIS ROLLING DISPENSER, YOU MUST CONFIGURE IT WITH 7 SECTORS,... -
Page 12: Endless Dispenser
DOSAGE 5.1.2 ENDLESS DISPENSER 5- Configure the number of sectors required depending on the de- sired dose, to modify the configuration of the sectors, the seeger ring must be pulled-out, set-up the sectors as per the dosage gra- ph images and put the seeger ring back in place. This dispenser only works for DOSAGE of micro-granulated fertilizers in low doses. -
Page 13: Transfilling Dispenser
DOSAGE 5.2 CALIBRATION TEST WHEN EXTRACTING THE ENDLESS, BE CAREFUL NOT TO LOSE THE O-RINGS OF THE AXLE. MOUNT THE O- RING CORRECTLY AFTER ASSEMBLING THE ENDLESS. Before working with the machine, a flow test must be performed in order to determine the dose to be distributed. For that, you must: Assembly the distributor’s roller or change the endless, in function of the chosen dosage graph. -
Page 14: Dosage Graphs
DOSAGE 5.3 DOSAGE GRAPHS THE AMOUNTS INDICATED WITHIN THE GRAPHS MUST BE CONSIDERED AS ORIENTATION ESTIMA- TIONS AS THE PROVIDED FLOW MAY VARY DUE TO THE PRESENCE OF DUST, SIZE OF THE PRODUCT TO BE The dose per hectare that may be supplied by the dispenser de- USED, DENSITY, HUMIDITY, ETC. -
Page 15: Roller Dispenser
DOSAGE 5.3.1 ROLLER DISPENSER WITH A SINGLE OUTLET 5.3.1.1 ROLLER DISPENSER WITH A SINGLE OUTLET MÁXIMA Y MÍNIMA DOSIFICACIÓN 1 SECTOR MÁX. MÍN. Km/h VELOCIDAD km/h MÁXIMA Y MÍNIMA DOSIFICACIÓN 2 SECTORS MÁX. MÍN. Km/h VELOCIDAD km/h MÁXIMA Y MÍNIMA DOSIFICACIÓN 3 SECTORS MÁX. -
Page 16: Roller Dispenser With Two Outlets
DOSAGE 5.3.1.2 A ROLLER DISPENSER WITH TWO OUTLETS MÁXIMA Y MÍNIMA DOSIFICACIÓN 1+1 SECTORS MÁX. MÍN. Km/h VELOCIDAD km/h MÁXIMA Y MÍNIMA DOSIFICACIÓN 2+2 SECTORS MÁX. MÍN. Km/h VELOCIDAD km/h... -
Page 17: Endless Dispenser
DOSAGE 5.3.2 ENDLESS DISPENSER 5.3.2.1 AN ENDLESS DISPENSER WITH A SINGLE OUTLET MÁXIMA Y MÍNIMA DOSIFICACIÓN 1 endless MÁX. MÍN. SMALL 38 cm Km/h VELOCIDAD km/h MÁXIMA Y MÍNIMA DOSIFICACIÓN 1 endless MÁX. MÍN. LARGE 75 cm Km/h VELOCIDAD km/h 5.3.2.2 TWO ENDLESS DISPENSERS WITH TWO OUTLETS MÁXIMA Y MÍNIMA DOSIFICACIÓN 2 endless... -
Page 18: Usage Advice
TIPS FOR USE 6- TIPS FOR USE 6.1 AURA-3215 WITHOUT ISOBUS 6.2 AURA-3215 CON ISOBUS 1- Forward speed: 1- Advancing speed: To obtain a uniform work, keep the forward speed without sudden Activate mode <PRESTART>. In this mode, dosage errors during stops, since variations in forward speed modify the amount of pro- start-up and shut-down of the tractor will be minimized. -
Page 19: Maintenance
MAINTENANCE 7- MAINTENANCE 7.1 CHECKING FREQUENCY The periodicity of the check-ups indicated below is solely for orien- IN CASE OF MALFUNCTION, STOP THE PLANTER IM- tation purposes. It may suffer variations depending on the type of MEDIATELY AND REMOVE THE IGNITION KEY. LEAVE service, use of the machine and conditions of use. - Page 20 MAINTENANCE INTERVENTION AREA OPERATION TO BE PERFORMED ● Check light conditions and functioning Road lights and signs ● Make sure that the safety adhesives are in place and readable ● Check the condition of the hoses and hydraulic connectors, make sure there are no leaks Hydraulic components ●...
-
Page 21: Warranty
WARRANTY 8- WARRANTY MAQUINARIA AGRÍCOLA SOLÀ, S.L. ensures the smooth functioning Neither the DEALERSHIP or the BUYER or the USER will be able to of any product according sold to the technical specifications of the claim compensation to MAQUINARIA AGRÍCOLA SOLÀ, S.L. for inci- WARRANTY CERTIFICATE provided with each machine. - Page 22 NOTES NOTES DATE NOTES...
- Page 23 NOTES DATE NOTES...
