- Page 1 Operating Manual SECULIFE UP 3-349-978-03 Digital Ultrasound Meter 2/10.17...
-
Page 3: Table Of Contents
SECULIFE UP GOSSEN METRAWATT SECULIFE UP ULTRASOUND WATTMETER TABLE OF CONTENTS WARNINGS, SAFETY PRECAUTIONS AND NOTES ..............4 INTRODUCTION ..........................8 OPERATING INSTRUCTIONS ...................... 9 LAYOUT ............................11 OPERATING PROCEDURE ......................12 GENERAL OPERATING NOTES ....................14 CALIBRATION ..........................15 ... -
Page 4: Warnings, Safety Precautions And Notes
CAUTION - MODIFICATIONS The SECULIFE UP is intended for use within the published specifications. Any application beyond these specifications or any unauthorized user modifications may result in hazards or improper operation. - Page 5 SECULIFE UP CAUTION - LIQUIDS Do not submerge or spill liquids on the SECULIFE UP. Do not operate the SECULIFE UP if internal components not intended for use with fluids may have been exposed to fluid, as the internal leakage may have caused corrosion and be a potential hazard.
- Page 6 SECULIFE UP NOTICE – DISCLAIMER GMC-I MESSTECHNIK GMBH WILL NOT BE RESPONSIBLE FOR ANY INJURIES SUSTAINED UNAUTHORIZED EQUIPMENT MODIFICATIONS OR APPLICATION OF EQUIPMENT OUTSIDE OF THE PUBLISHED INTENDED USE AND SPECIFICATIONS. NOTICE – DISCLAIMER GMC-I MESSTECHNIK GMBH RESERVES THE RIGHT TO MAKE CHANGES...
- Page 7 SECULIFE UP GMC-I Messtechnik GmbH...
-
Page 8: Introduction

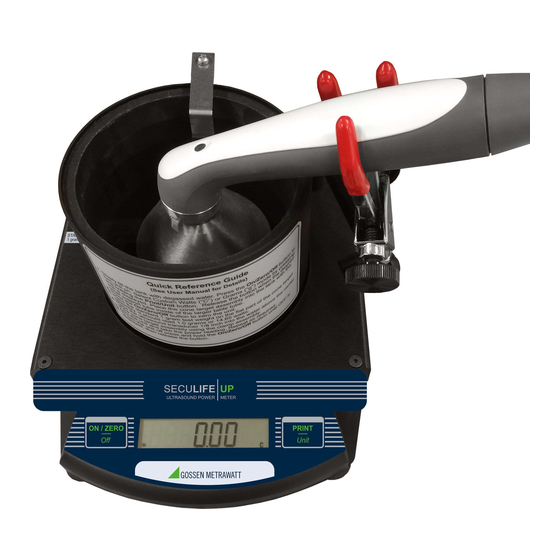

The choice of units (grams or watts) is selected by a front panel push button. The SECULIFE UP is supplied with a plug-in 120 VAC to 12VDC 500 mA adapter (using another adapter not rated or wired the same may damage unit). Unit can be operated off 4 AA batteries for over 40 hours. -
Page 9: Operating Instructions
SECULIFE UP OPERATING INSTRUCTIONS Water as a Measurement Medium* The measurements are to be performed in water because ultrasound propagation in water closely approximates that in tissues. The ultrasonic attenuation in water can be taken as a lower limit on the attenuation that will be encountered in the body. Large areas in the body can consist of low attenuating material such as urine and amniotic fluid. - Page 10 On an unleveled work surface!!! Allow sufficient space around the instrument for ease of operation and keep away from radiant heat sources. Never set any material on the SECULIFE UP or place your hands or fingers on it while taking reading.
-
Page 11: Layout
SECULIFE UP LAYOUT 1. On/Zero – Off - Button: Press to turn unit on or zero, press and hold until OFF is displayed then release to turn off. 2. Print Unit: Press to print, press and hold then release when desired unit is displayed. -
Page 12: Operating Procedure
8. Check response by placing the 1 gram weight on the arm of the cone target (the flat part that is out of the water). The SECULIFE UP should read 1.00 ± 0.10 grams. Change the units to the watts (Custom) mode by pressing and holding the Print Unit button until “C”... - Page 13 13. When finished, turn the unit off by pressing and holding ON/Zero/Off button until OFF is displayed, then re-lease. Unplug the SECULIFE UP, empty the tank and dry. Dry target cone. Place in foam in case along with power adapter. Position transducer holder over tank.
-
Page 14: General Operating Notes
SECULIFE UP GENERAL OPERATING NOTES Line / Battery Power: The SECULIFE UP is supplied with a 120 VAC 60 Hz adapter. Check for correct line voltage before use. 1. Slowly fill tank with degassed water. Press the On/ Zero/Off button to turn unit on. -
Page 15: Calibration
14.65 watts (± .2 watts) or 1.000grams (± .01 grams). If this reading is significantly off, the SECULIFE UP needs to be recalibrated. Send it to GMC Instruments Co. for calibration. It is recommended that the SECULIFE UP be returned to GMC on a yearly basis for calibration and certification. -
Page 16: Theory
SECULIFE UP THEORY Theory of Measuring Ultrasound Power with The Radiation Force Method Ultrasound is a form of energy that sets the particles in the isonated medium into vibrational motion. The particles then possess a kinetic energy. If d*P is the rate of the flow of this energy about an area d*A, then the mean acoustic energy is: Eq. - Page 17 SECULIFE UP Eq. 3 P* = I/C P = Pressure of Radiation, ergs/cm Therefore, from the above two equations, the pressure of radiation (P) is equal to the energy density (E). Eq. 4 P* = E It is this DC pressure of radiation that can be measured. At low frequencies, below 100 KHz, a standard high frequency hydrophone can be used.
-
Page 18: Maintenance
± .05 counts on the watts scale. Avoid mechanical and air movement or variations in magnetic fields while making tests. Out of Measurement Range Warnings: Model SECULIFE UP accommodates weight differential of ± 120 grams. When the scale exceeds this range, “Err 2” will be dis-played. Something may be pressing hard on the target or support. -
Page 19: Manual Revisions
SECULIFE UP MANUAL REVISIONS Revision # Revisions Made Rev 01 Origination Rev 02 Miscellaneous Edits and Additions, Pictures Updated LIMITED WARRANTY WARRANTY: GMC-I MESSTECHNIK GMBH WARRANTS ITS NEW PRODUCTS TO BE FREE FROM DEFECTS IN MATERIALS AND WORKMANSHIP UNDER THE SERVICE FOR WHICH THEY ARE INTENDED. -
Page 20: Specifications
SECULIFE UP SPECIFICATIONS ULTRASONIC POWER MEASUREMENT POWER RANGE 0 to 30 W RESOLUTION ± 50 mW MINIMUM DETECTABLE 50 mW POWER LEVEL ACCURACY ± 3 % + One Count Reading DIGITAL FILTER 2.5 seconds Integration DUT OPERATING 0.5 to 10 MHz... -
Page 21: Service
SECULIFE UP SERVICE Productsupport If required please contact: GMC-I Messtechnik GmbH Product Support Hotline Phone: +49 911 8602-0 Fax: +49 911 8602-709 E-Mail support@gossenmetrawatt.com Service Center If required please contact: Repair and Replacement Parts Service Calibration Center* and Rental Instrument Service... - Page 22 Shipping Instructions To make certain that your Ultrasound Power Meter arrives at our repair department unharmed during shipment, please follow these instructions: 1. Empty water from tank and dry. Place the weight under the screw provided. 2. Place all components in foam in case. Ensure transducer clamp is tighten over tank positioner.
