Summary of Contents for Emcotec LONGGO

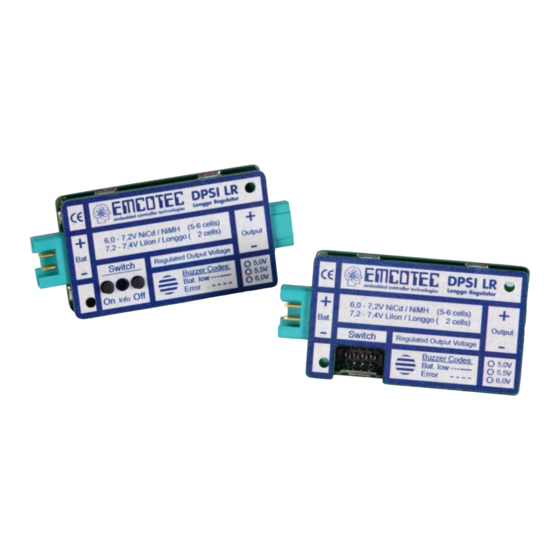

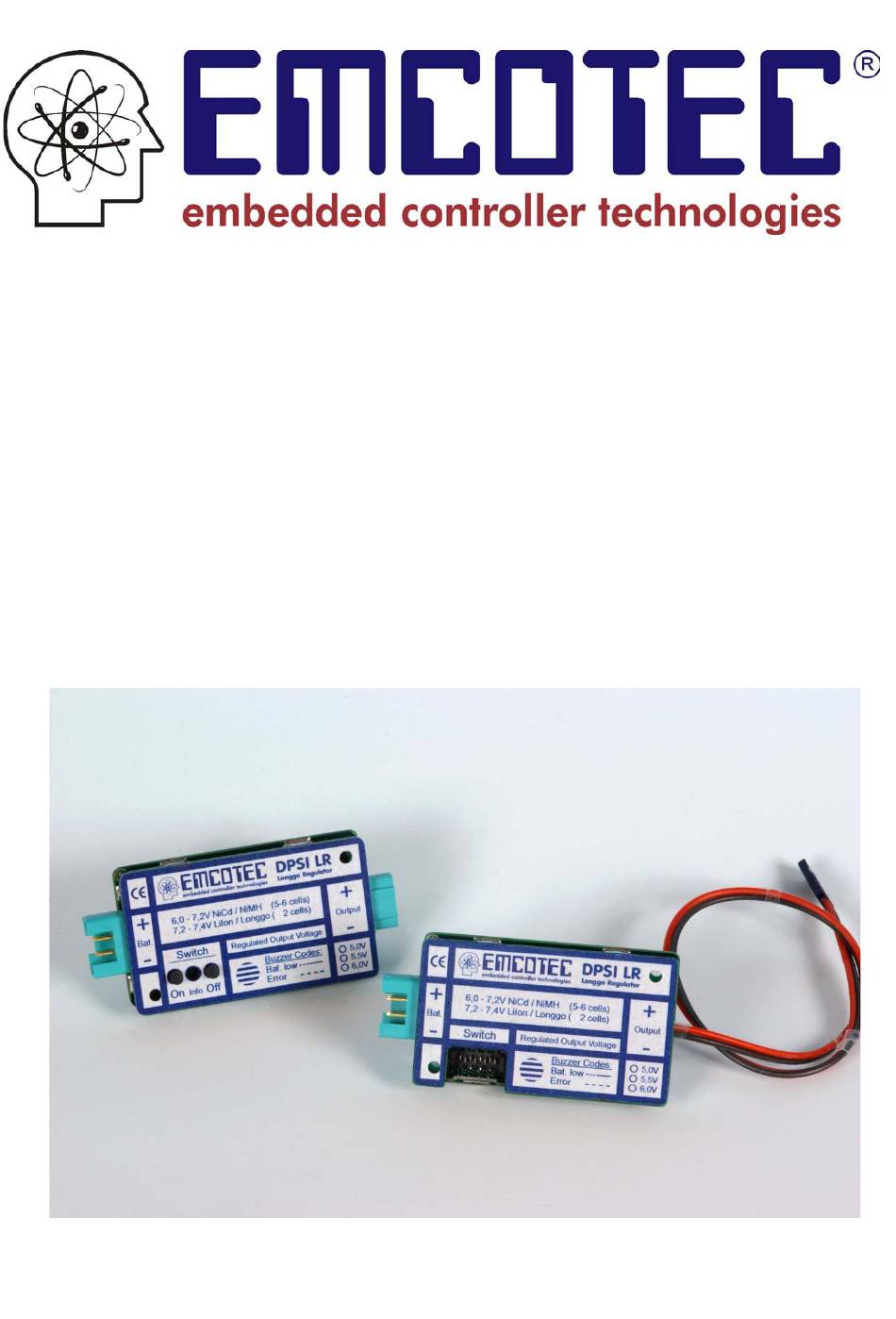

- Page 1 DPSI-LR (S) (LONGGO Regulator) Electronic switch with integrated voltage regulator for RC models Please read! important product information www.emcotec.de www.rc-electronic.com...
- Page 2 Version 1.1 General: The DPSI LR (Longgo-Regulator) is suitable for smaller models, for which a DPSI RV System would be too large (i.e. small gliders, E-models, F3A-engine models, F3C-helicopters). It is an electronic (and therefore breakdown proof) On/Off switch modelled after the approved DPSI principle and a low dropout voltage regulator in line, which generates a regulated voltage from a variable input voltage of 6.0 Volts...
- Page 3 When turning the DPSI LR (S) on, you hear a buzzing signal (1 to 5 beeps, dependent on the programmed battery type). After shipping, the DPSI LR (S) is programmed for LONGGO batteries (LiPo). Therefore, the buzzer sounds 4 times! Programming is possible to adjust the thresholds for the low voltage detection of different battery types.
- Page 4 Prerequisite is, that you programmed the correct battery type (5, 6, 7 cells or Longgo). The error code repeats in a 7 second interval. Whenever the error is qualified, it keeps active until you turn off the DPSI LR (S).
- Page 5 Since you can use different battery types with the DPSI LR (S) you must tell it the intended battery type (e.g. 5, 6, 7 cell or Longgo batteries). This must be done once - the settings stay resident until you eventually reprogram.
- Page 6 5 x beeps Deactivate all checks After shipping, "battery type 4" (Longgo battery) is programmed. If you select "5 times beep" (deactivate all tests), there is no voltage monitoring anymore. So, you don't get indications for an empty battery or any other errors.
- Page 7 DPSI LR Description Version 1.1 Safety Instructions: In general, all connecting lines should be run so that they do not come into contact with moving or hot parts of the model (such as servos, gears or sound absorbers). The DPSI LR must be protected from humidity and moisture. Improper handling of the DPSI LR can result in serious damage/injury to property or persons! Carry out a general inspection of all connections in your model before each use! All plugs must be correctly polarized and have clean contacts (i.e.
- Page 8 You find additional information (among other things FAQ = frequently asked questions) in the internet on our homepage www.rc-electronic.com. This information is constantly updated. Please inform yourself about our other products around RC modeling. Legal information: "DPSI", "LONGGO" und "EMCOTEC" are registered trademarks. EMCOTEC embedded controller technologies GmbH Waldstr. 21 D - 86399 Bobingen Tel.
