Technote 6: Setting up ST-100 Terrestrial IP Streamers
DVB-T to IP streaming equipment (ST-series) broadcasts multicast streams and TV/radio
channels, selected from a DVB-T multiplex (maximum 8), from digital terrestrial reception, over
a TCP-IP network. TV services broadcast as IPTV streams can be viewed on an individual
IPTV receiver or by using video reproduction software. The ST modules are configured via
TCP/IP, using either the HTTP protocol (web browser) or TELNET (virtual terminal).
IMPORTANT:
modules per power supply unit. Each ST module can handle up to 8 MPEG streams; the
IP broadcast, therefore, consists of 8 TV/radio services per module.

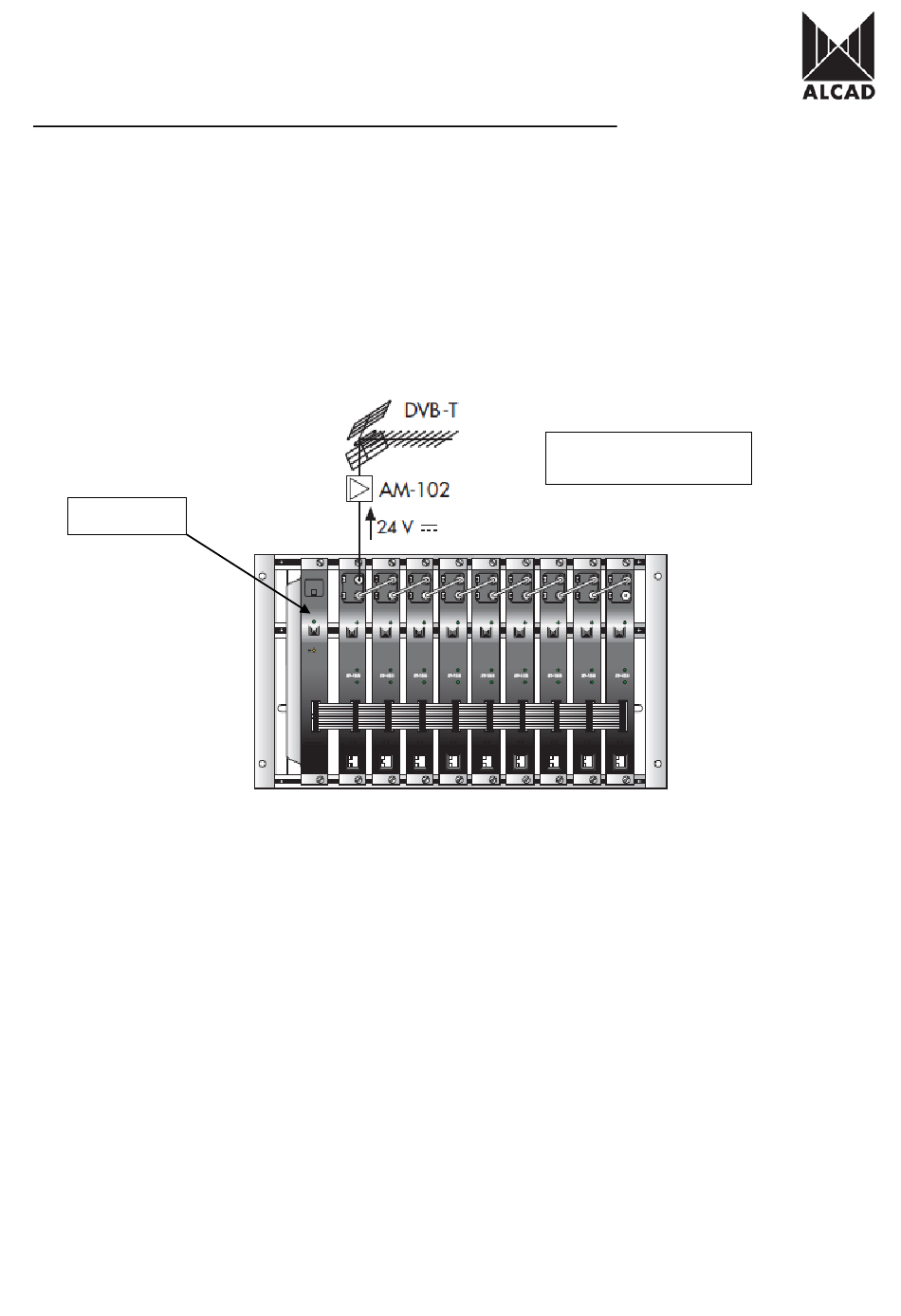

Power Supply
IMPORTANT:
310/312) must be located on the far left hand side and Terrestrial IP streamer must be the next
module in the chain. Please look at the above picture.
Ensure the following prior to programming:
• It is necessary to connect all the modules to the support frame SP-226 (code 9120130)
for the system to function.
• It is also recommended that you make the earth connection to the building using a cable
with a section of at least 4 mm.
• Power supply/Control cable must be plugged into each module.
REMOVE
modules without disconnecting mains supply power from wall outlet. Always
disconnect the equipment, and then reconnect it to the mains supply. Failure to do so
can cause equipment to fail.
It is possible to connect up to 9 ST- 100 modules and 7 ST-110
Layout of the modules must be as shown above. Power Supply (FA-
Automatic power Injection
for masthead amplification
DO NOT ADD OR

Advertisement

loading
Need help?

Need help?

Do you have a question about the ST-100 and is the answer not in the manual?

Questions and answers

Related Manuals for Alcad ST-100

Summary of Contents for Alcad ST-100

  • Page 1 Technote 6: Setting up ST-100 Terrestrial IP Streamers DVB-T to IP streaming equipment (ST-series) broadcasts multicast streams and TV/radio channels, selected from a DVB-T multiplex (maximum 8), from digital terrestrial reception, over a TCP-IP network. TV services broadcast as IPTV streams can be viewed on an individual IPTV receiver or by using video reproduction software.
  • Page 2 In order to avoid conflicts with other IP addresses, it is necessary to perform an initial configuration in local mode. Subsequently, it will be possible to access the DVB-T to IP streaming equipment ST-100 via the local area network (LAN), either to re-programme it or to check is operating status.
  • Page 3 The first page of the ALCAD IPTV graphical user interface will appear on the screen. Access to the site is protected by username and password. By factory default, the first time the module...
  • Page 4 Once you have entered the username and passwords the ALCAD IPTV user interface will be displayed, which can be seen below. Main Navigation Menu This is the main navigation menu. Using it, you can switch between the 5 different configuration menus. The rectangle highlighted in black shows which main menu is active at a given moment.
  • Page 5 DESCRIPTION OF THE ALCAD IPTV Graphical User Interface The different parts of the ALCAD IPTV Graphical User Interface are shown below: 1 - Click on the ALCAD logo to go to our website: www.alcad.net 2 - ST series model 3 - Version of Firmware (FW) and Hardware (HW) of the module...
  • Page 6 MAIN NAVIGATION MENU OF THE ALCAD IPTV Graphical User Interface 1.0 Status This shows information concerning the status and configuration of each block of the ST module. It is a visual menu only and cannot be modified. Streamer status This shows the data of the ST module and a list of the multicast services selected.
  • Page 7 DVB-T NIM Status From the Configuration bar the next sub-menu tab is “DVB-T NIM Status” DVB-T NIM Status Displays the programmed data of the input tuner of the ST module at a point in time. To see the BER values at a given instant, press the button on your web browser.
  • Page 8 Network status From the Configuration bar the next sub-menu tab is “Network Status” Network Status Displays the network data programmed on the streamer. Link: correct connection with the network. Link Speed: bit speed and Ethernet output. Configuration Type: fixed or random IP (Static IP, Automatic DHCP). IP address: IP address of the ST module (Factory-set IP: 192.168.10.100).
  • Page 9 Log status From the Configuration bar the next sub-menu tab is Log Status” Log Status Displays a log of timed events that have occurred within the module. Each event that has occurred in the ST module has a date and time. If events are marked with an asterisk (*), it indicates that at the moment at which the event occurred, the date and time displayed were not synchronised.
  • Page 10 2.0 Network From the “Main Navigation Menu” network settings can be configured from Network tab The network configuration can either have a fixed IP address (Static IP) or have one which is automatically assigned by a DHCP server (Automatic DHCP). Configuration Type: Static IP, Automatic DHCP IP address:...
  • Page 11 DVB-T NIM From the “Main Navigation Menu” changes to the input carrier frequencies are made from the DVB-T NIM tab. DVB-T NIM Displays parameters of the input multiplex and status, levels and quality of the input signal. The data must be entered in compliance with the broadcasting configuration of the transmitter at which the antenna is receiving the signal from.
  • Page 12 Output Stream From the “Main Navigation Menu” selections can be made to the TV/radio services that are to be broadcast on the TCP/IP network, and are made from the Output Streams tab. Service selection From the list of services (acquired from the previously-tuned TDT multiplex) that appears in the screen, a maximum of 8 services can be selected.
  • Page 13 After you have made your selection, confirm it by clicking on the Apply button. Multicast Assignment This is used to configure the multicast addresses for the services to be broadcast. Multicast Base Address/Port: used to assign IP addresses and ports to each TV/radio channel automatically.
  • Page 14 To confirm the configuration, click on the Apply & Start button. SAP MANAGEMENT Within the Multicast Assignment menu, advanced configuration options are available. These allow you to select the Service Announcement Protocol (SAP) data to be sent and the IP address they are to be sent to.
  • Page 15 This is used to control the status of the ST module. There are two possible states: streaming, i.e. sending a stream of data; or stopped, i.e. sending no data through the RJ-45 output. Streamer: Start or stop the ST module by clicking on either Start or Stop. Streamer Status: shows whether the ST module is functioning or not (Streaming, Stopped).
  • Page 16 System Log This sends incident messages generated in the ST module to a syslog server on the network. System Log Messages: enables or disables the error-forwarding feature Enabled, Disabled. Log Server IP Address: IP address of the syslog server to which data concerning incidents will be sent.
  • Page 17 Password This menu item allows you to change the username and password. New Username: enter the new username in this field. New Password: enter the new password in this field. Re-type Password: confirm the new password by re-typing it in this field. Please press button for username and password changes to take effect.
  • Page 18 Utilities Utilities for the ST module. Blink LED: Clicking on the Blink button will cause the TSP indicator of the ST module to flash for several seconds. This option can be used to physically identify, on the headend, the module which is being programmed. Reset to factory defaults: Clicking on the Reset button resets the configuration of the ST module to the factory default values.
  • Page 19 AUSTRALIAN DIGITAL/ANALOGUE FREQUENCY TABLE...
  • Page 20 ACRONYMS ARP- Address Resolution Protocol is a telecommunications protocol used for resolution of network layer addresses into link layer addresses, a critical function in multiple-access networks. ARP has been implemented in many combinations of network and overlaying internetwork technologies, such as IPv4 HTTP - Hypertext Transfer Protocol is a networking protocol for distributed, collaborative, hypermedia information systems.
  • Page 21 SAP - Session Announcement Protocol is a protocol for broadcasting multicast session information. A SAP listening application can listen to the SAP multicast IP address and construct a guide of all advertised multicast sessions. SAP typically uses Session Description Protocol (SDP) as the format of the session descriptions, and the multicast sessions typically stream data using User Datagram Protocol (UDP) or Real-time Transport Protocol (RTP).
