Summary of Contents for HK Audio VX Series

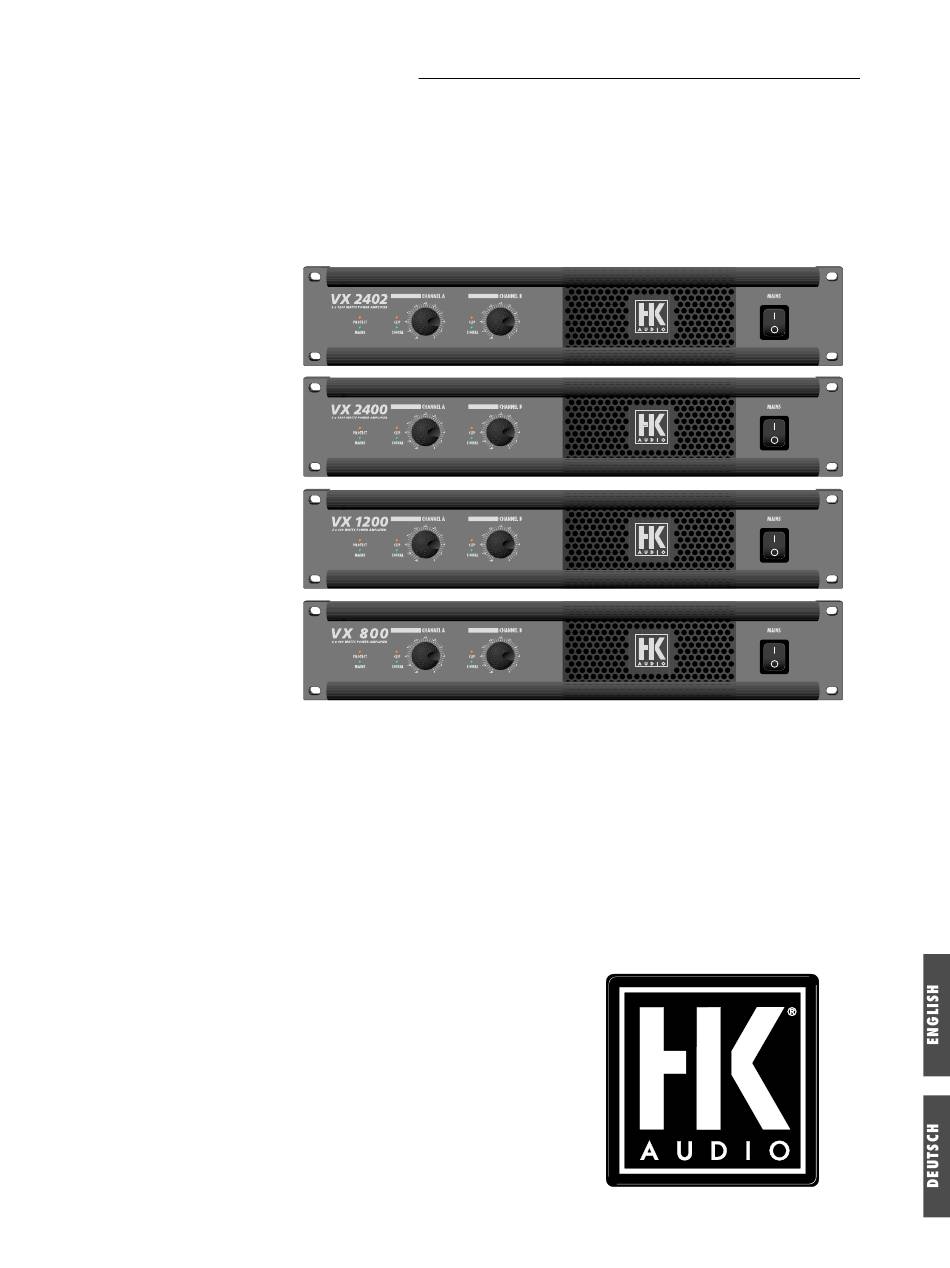

- Page 1 BEDIENUNGSANLEITUNG M ANUA L VX Power Amps...
- Page 2 VX POWER AMPS MANUAL VX 800 4.2 4.4 OUTPUTS A + B INPUTS MONO + BRIDGE MODE: ALL INPUTS ARE PARALLEL GROUND LIMITER MODE STEREO LIFT MONO BRIDGE 2 x 400 W / 4 CIRCUIT VX 800 BREAKER POWER SPEAKON PIN CONFIGURATION: A + B STEREO: AMPLIFIER CAUTION!
- Page 3 2.1 Welcome into the HK Audio family! Content The new HK Audio VX Series of professional power amplifiers combine modern design features with utmost durability and reliability to guarantee dependable, totally trouble-free service for many years to come. Its low weight, compact dual-...
- Page 4 When you shut a system down, always switch off the protection circuits. power amps first and then all the other devices in the signal chain. Caution: HK Audio is not liable for damage to speaker systems due to overload 3.2 Ventilation caused by improper operation of the power amp.
- Page 5 2400 watts). (models VX 800 and VX 1200 only) While the largest model in the VX series of power amps is permanently set 4.4 Limiter Button to a minimum load (4 Ω in the case of the VX 2400, and 2 Ω with the VX 2402), you can select the minimum impedance of the smaller models The internal limiters of the VX power amp can be switched off via this button.
- Page 6 VX POWER AMPS MANUAL 5 TECHNICAL SPECIFICATIONS General Controls All level indications refer to 0 dBV (1 V RMS). Master Power Switch, Input Sensitivity Knob, Operating Mode Switch, Internal Limiters, Ground-Lift. Inputs Displays On, Protect, Signal And Clipping LEDs. A, B Input Protective Circuits Sockets: Full DC fault, thermal and short-circuit protection...
