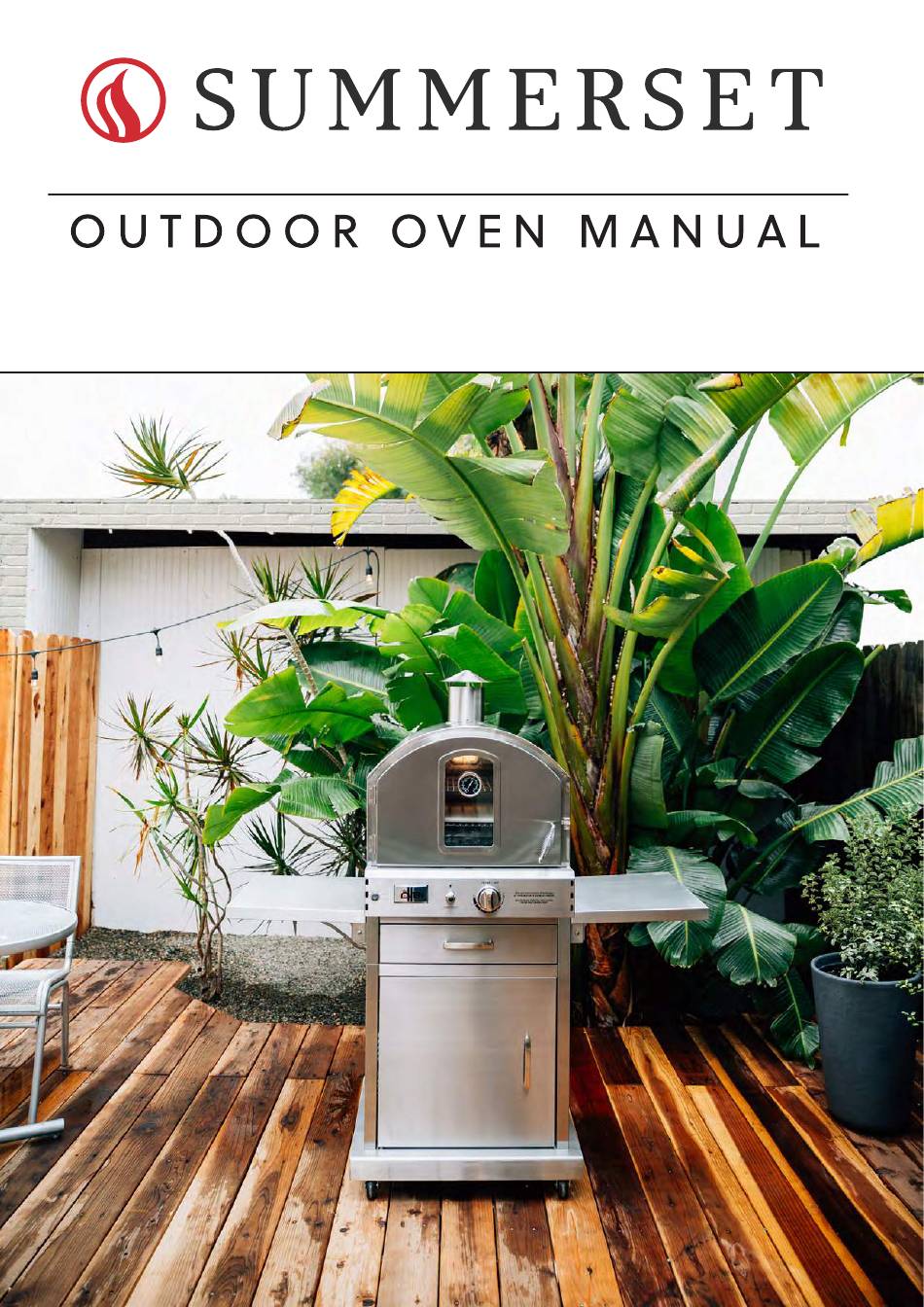

Summerset SS-OVFS Manual

Outdoor free standing, built in ovens and counter top

Hide thumbs

Table Of Contents

Table of Contents

Need help?

Do you have a question about the SS-OVFS and is the answer not in the manual?

Questions and answers

Summary of Contents for Summerset SS-OVFS

Page 2 The Oven Manual Questions, problems, missing parts? Before returning to your retailer, call our customer service department at 1(800) 966 -8126 , Monday - Friday, 8 :30 a.m. - 5 p.m., P ST. FOR QUESTIONS OR SERVICE, PLEASE CALL 800.966.8126 Oven Operation 1 -2-3 Before Cooking : Step 1...
Page 3 The Oven Manual Step 1 Burn oven for 10-15 minutes to burn off food residue. Step 2 Wait until the oven is completely cooled before closing oven door . Step 3 Clean up grease build -up and cover your oven . * Please refer to the owner's manual for deta ils.
Page 4: Table Of Contents
TABLE OF CONTENTS Safety Information………………… ………………….………...….………….………….………… ……. 4 Package Contents…..………………..…..….……...…....……………………………… ……. 6 Hardware Contents… …………………………………………………………….……………………….. 7 Assembly Instructions………… …………..……………….……………………………………… ……. 8 LP Gas Assembly……… ……………………………………………..........15 Natural Gas Conversion …………………………………………………………………………… …... 21 Operating Instruction s.. ………………………….……...… …………………………......
Page 5: Safety Information
Safety Information Please read and understand this entire manual before attempting to assemble, operate install the product. If you have any questions regarding the product, please call customer 1(800) 966 -8126 service at Monday t o Friday from 8 :30 a.m. to 5 p.m. PST. 1.
Page 6 Safety Information This regulator is set for an outlet pressure of 11.0 WC. 16. The cylinder used must include a collar to protect the cylinder valve 17. Do not store a spare LP -gas cylinder under or near the appliance 18.
Page 7: Package Contents
PACKAGE CONTENTS PART DESCRIPTION QUANTITY PART DESCRIPTION QUANTITY Main Body Grease Tray Cooking Grill Smoker Box Pizza S tone Flame Tamer Bottom Grill...
Page 8: Hardware Contents
HARDWARE CONTENTS The following list is included inside the pizza oven carton: Battery 1 pc The following list is not included inside the pizza oven carton, but needed when the user is assembling the pizza oven. Phillips Head S crewdriver 1 pc The following list is NOT included inside the pizza oven carton but is included inside the NG Conversion Kit .
Page 9: Assembly Instructions
ASSEMBLY INSTRUCTIONS Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. Assembly tip! (Please lightly tighten the screws during assembly of the cart. When the cart is completed THEN TIGHTEN ALL THE screws.
Page 10 3. Use screw M6*12 ×2 pcs to fix the left side panel onto the base pan el of the stand. (Note: The panel should have the “small holes at the top” to the front of the cart assembly) 4. Use screw M3*12 ×2 pcs and nut M3×2 pcs to attach the door magnet onto the right side panel.
Page 11 6. Use screw M4*10 ×4 pcs and nut M4×4 pcs to attach the transformer assembly onto the outside of the back panel of the stand. (Note: These screws can be tightened at this time) 7. Use screw M6*12 ×5 pcs to attach the stand base panel onto the base panel, between the two side panels.
Page 12 8. Use screw M4*10 ×4 pcs to fix the stand door horizontal beam between the two side panels. (N ote: Please fasten the upper two screws rst, and then the lower two screws. 9. Use screw M4*10 ×4 pcs to fix the stand top panel on the top of the two side panels and back panel.
Page 13 11. First, insert the door lower axis into the hole in the base panel. Next, push down the door upper spring axis and let go of the spring when it is pointed to the hole in the horizontal beam. (Note: You may need to add 1 or 2 washers 18*6.4*1 on the bottom pin so the door will close evenly)
Page 14 13. Use screw M5*10 ×16 pcs to attach side shelf bracket ×4 pc s onto the drawer side panels. (Note: Arrows face UP) 14. Using one of the screw M5*10 to fix the match holder onto the front bracket of right side shelf. (This step may be skipped if you do not want or need a “match holder”...
Page 15 16. Use screw M4*8 ×3 pcs to fix the chimney assembly onto the top of the oven exterior. (Note: These screws can be tightened at this time) 17. Use screw M5*35 ×4 pcs to fix the back heat shield onto the back panel of the oven.
Page 16: Lp Gas Assembly
19. Insert the grease tray into the back of the oven. 20. Insert the battery into the electronic ignition. Unscrew the button and place battery positive (+) tip facing OUT. Screw button back on. Your complete pizza oven is now assembled.
Page 17 5. Make sure all burner knobs are in the OFF position. 6. Connect the hose and regulator assembly to the tank val ve (See Fig. 6). Hand -tighten the quick coupling nut clockwise to a full stop. Fig. 6 DO NOT use a wrench to tighten because it could damage the quick coupling nut and result in a hazardous condition.
Page 18 WARNING: The Type I connective coupling (see Fig. 7) supplied w ith your oven must not be replaced with a di erent type of grill/tank connection system. Removal will result in loss of warranty, gas leakage, re and severe bodily harm. Thermally Propane Regulator...
Page 19 L.P. TANK INFORMATION Never use a dented or rusted L.P. tank or cylinder with a damaged valve. L.P. cylinders are equipped with an O.P.D. (Overfilling Prevention Device). The device shuts off the flow of gas to a cylinder after 80% capacity is reached. This limits the potential for release of gas when the cylinder is heated, averting a fire or possible injury.
Page 20 PRE -OPERATION LEAK TESTING Although all gas connections on the oven are leak tested prior to shipment, a complete gas tightness check must be performed at the installation site due to possible shifting during shipment, installation or excessive pressure unknowingly being applied to the unit. Periodically check the whole system for leaks and immediately check the system if the smell of gas is detected.
Page 21 Do not use the oven in garages, breezeways, sheds or any enclosed area. WARNING Never operate the oven in enclosed areas as this could lead to a carbon monoxide buildup, which could result in injury or death. Place the oven on a level surface. Avoid moving the oven while it is in operation.
Page 22: Natural Gas Conversion
WARNING : Place the oven on a flat, level surface. Before the conversion, make sure all control knobs are in the OFF position, LP tank valve is closed, and tank is disconnected from regulator and removed from grill. NG CONVERSION INSTRUCTION: Before the conversion, make sure all control knobs are in the OFF position, LP tank valve is closed, and tank is disconnected from regulator and removed from oven...
Page 23 Use a screwdriver to loosen the screw that is used to fasten the burner cover. Turn the burner cover until the hole marked “ NG” overlap s with the fixing hole on the burner. Put the screw back into the holes and tigh ten again. Use orifice removal tool to remove the φ...
Page 24 Put the burner back into the oven and insert the ignition wire into the original po sition. Use the 10x12 mm spanner to fix the thermocouple back into the oven again. Finally , fasten the burner with the original screws. Put back the two cooking grids smoker box, pizza stone and base grill into the right position.
Page 25 Use the screw driver to put the conversion s crew into the knob. When converting to natural gas, please be aware that the low heat setting of the main burners and searing burner is “NG LOW ,” as shown on the control panel. “LP LOW”...
Page 26 IMPORTANT: After y our outdoor oven is converted to natural gas, the working pressure for natural gas is 7-inche water column (WC). Gas pressure is affected by gas line size and the length of gas line run from house. Follow the recommendations in the chart below. From Ho use to Oven Distance Tubing Size...
Page 27 Never attach an unregulated gas line to the appliance. Connection to an unregulated gas line can cause excessive heat or re. Verify the type of gas supply to be used, either Natural Gas (N.G.) or Liquid Propane (L.P.), and make sure the serial plate agrees with that of the supply. Conversion kits are available separately fo r an additional cost , which will enable you to convert your oven from L.P.
Page 28 Clearance to combustible construction: A minimum of 61 cm ( 24 inches) from the sides and back must be maintained from the gas grill above and below the cooking surface to adjacent vertical combustible construction. Clearance to non -combustible construction: A minimum of 61 cm ( 24 inches) clearance from the back of the grill to non -combustible construction is required .
Page 29 Heat and smoke exhaust out of WARNING the chimney and the ventilation holes on the bottom of two oven side panels (See Fig. 8). Make sure to keep anything that could be damaged by heat or smoke away from the heat and smoke exhaust holes.
Page 30: Operating Instructions
Operating Instructions OVEN BURNER LIGHTING Warning: Do not lean ove r oven when lighting. Turn off LP supply at cylinder when appliance is not in use. Main Burner Lighting Illustration: 1. Check that the control knobs are in the OFF position.
Page 31 USING THE GRILL LIGHT Light Operation Instruction 1. Make sure the light’s power switch on the control panel is in the “OFF” position. 2. Connect power plug to properly grounded outlet. 3. Turn the light’s power switch to “ON.” WARNING Keep any electrical supply cord away from any heated surface.
Page 32: Care And Maintenance
Care & Maintenance GENERAL MAINTENANCE - Keep outdoor cooking gas appliance area clear and free from combustible materials, gasoline and other flammable vapors and liquids. - Do not obstruct the flow of combustion and ventilation air. - Keep the ventilation openings of the cylinder enclosure free and clear from debris. - Visually check the burners.
Page 33 The drip tray should be cleaned periodically according to the using situation NOTE: Allow the drip tray to cool before attempting to clean. COOKING GRATES The cooking grates can be cleaned immediately after cooking is completed and after turning off the oven . Wear a barbecue mitt and scrub the cooking grates with a damp cloth. If the oven is allowed to cool down, cleaning the grates will be easier if removed from the oven and...
Page 34 De nitions: (+) Guard – Guard is a portion of portable luminaries unit that prevents inadvertent contact with the bulb. It may be integrated with the UV filter or lamp containment barrier or as part of an enclosure or shade. (+) Lamp containment barrier –...
Page 35 3. Use screw driver to loosen the screw that fix the light assy. 4. Use one hand to hold the metal back part of the light and one handle to hold the front glass cover and then take them apart. Then you can replace the bulb.
Page 36 6. Use M4*10 screw to fix the light assy. on to the back panel of the oven. 7. Use screw M5*35× 4 pcs to fix the back heat shield onto the back panel of the oven. The order is: screw back heat shield heat insulation washer flat washer oven back panel.
Page 37 8. Finally, put back the two cooking grills, smoker box, pizza stone, base grill and flame tamer into the oven. Now you have finished replacing the bulb. Cleaning Method Follow Steps below for glass cov er removal. Use a damp towel to clean the surface of glass cover.
Page 38 Replacing Battery for Electrical Igniter: 1. Remove the igniter cap by turning clockwise; 2. Replace the battery; 3. When installing new battery, ensure it is installed with the proper polarity; 4. Put on the igniter cap back by turning counterclockwise. WARNING: 1.
Page 39 2. Loosen the M4*10 screw * 7 pcs that fix the door exterior and interior, and then loosen the M4*10 screw * 4 pcs that fix the door hinge. Then loosen the shoulder screw that attaches the door handle. 3. Use spanner 19# to loosen the nut that fix the temp erature gauge.
Page 40 5. Use spanner or hand directly to tighten the nut that fix the temp erature gauge on the glass. You can set the torque of the spanner at 4.0kgf*cm . 6. Use M4*10 screw * 4 pcs to fix the door onto the oven. Now you have finished cleaning the oven door.
Page 41: Troubleshooting
TROUBLESHOOTING Many solutions given here can make your grilling experience safer and more enjoyable. can also call the customer service department at 1-866 -410 -0408 , 8 a.m. – 5 p.m., P ST, Monday to Friday. PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION Grill will not 1.
Page 42 TROUBLESHOOTING Burner Orifice Size Main Burner Φ 1.8 mm 2. Clear ports of any obstructions. 3. Refill the LP tank. Low heat, LP The propane regulator assembly Please follow these in structio ns: gas. incorporates an excess flow device 1. Make sure all burners are “OFF .”...
Page 43: Warranty
WARRANTY Summerset Professional Grills Oven Limited Warranty 5 year warranty on workmanship on The Oven covering construction and materials 3 year warranty on burner 1 year warranty all internal parts, grates, burner covers, igniter, light and external parts is required to access this warranty program,...
Page 44: Explored Diagram
Exploded Diagram For replacement parts, call our customer service department at 1(800) 966 -8126 8:30 a.m. – 5 p.m., P ST, Monday to Friday.
Page 45 Exploded Diagram Part Name Part Name Heat s pacer Grease tray left bracket Back heat -shield Oven back support Light assy. Grease tray right bracket Light bracket Oven right supporting assy. Handle latch Light transformer Gas pipe Match holder Chimney assy. Camp stove superior girder Cooking grill Right side shelf bracket...
Page 46: Replacement Parts List
Replacement Parts 2. BG070 -02-00B Oven 3. BG070 -24 Burner 4. BG070B -03-01 Oven 1、BG070 -01 Oven Interior * 1 pc Bracket Beam * 1 pc Back Panel * 1 pc Exterior * 1 pc 5. BG070 -03A Oven 6. BG070 -10-00B Burner 7.
Page 47 Replacement Parts 25. BG070B -38 Oven 26. BG070 -30 Temp. 27. BG070 -12-00 Oven 28. BG070 -76-00 Door Glass * 2 pc Gauge * 1 pc Door Handle Assy. * 1 pc Sideshelf * 2 pcs 29. BG070B -30-01 Left 30.
Page 48 Replacement Parts 49. BG070B -53 Trolley 50. BG070B -54 Trolley 51. BG070B -50-00 52. BG070B -51-00 Top Panel * 1 pc Door Horizontal Beam Trolley Left Sidepanel Trolley Right Sidepanel 1 pc Assy. * 1 pc Assy. * 1 pc 53.
Page 49: Island Installation
Replacement Parts Attach the *REQUIRED “installation flanges” to your oven. This will support your oven in the island. (Sold Separately) After your island is made with the correct cut out dimensions, and you have your flanges attached, slide your oven into your cut out. Then plug in you r electrical and connect gas to your oven.
