- Page 1 Fidelice: RNDAC Precision Digital-to-Analog Converter Serial Number: Operations Manual...
- Page 2 CAUTION: Changes or modifications to this device not expressly 11. Only use attachments/accessories specified by the manufacturer. approved by Rupert Neve Designs LLC, could void the user's authority to 12. Use only with a cart, stand, tripod, bracket, or PORTABLE CART operate the equipment under FCC rules.
-
Page 3: Table Of Contents
Table of Contents Introduction Block Diagram Front Panel Rear Panel RNDAC Features USB Audio Setup DSD Playback Digital Filter Options Micro-USB Firmware Update Specifications Frequency Response Graphs Limited Warranty... - Page 4 Rupert Neve Designs Fidelice RNDAC: Precision DAC Thank you for purchasing the Rupert Neve Designs Fidelice RNDAC: Precision Digital-to-Analog Converter. We hope you enjoy using this product as much as we have enjoyed designing and building it. The RNDAC features custom Rupert Neve Designs transformer-coupled outputs, Class-A analog signal paths, high-quality AKM Digital-to-Analog Conver- sion and a precision reference headphone amplifier.
-
Page 7: Front Panel

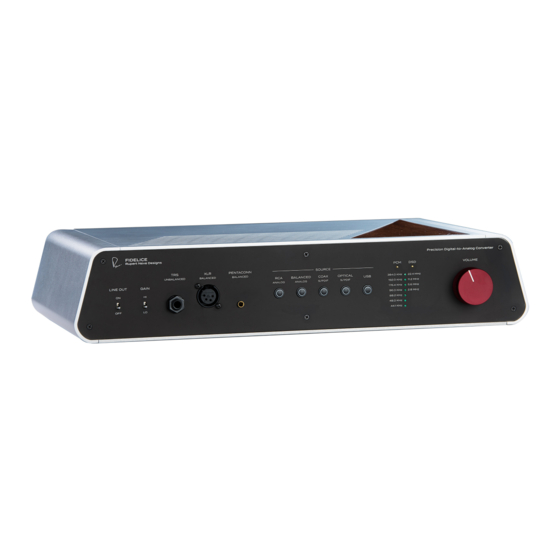

RNDAC Front-Panel Features Line Out The LINE OUT switch toggles the RNDAC’s rear-panel BALANCED XLR and UNBALANCED RCA line outputs ON or OFF. Gain The GAIN switch toggles between LO and HI gain output for the headphone amplifier to allow the user to better opti- mize their listening setup for the variance in headphone impedance and efficiency between manufacturers. - Page 8 RNDAC Rear-Panel Features XLR Balanced Output The stereo XLR line outputs on the RNDAC are balanced by a pair of custom-wound Rupert Neve Designs transformers, achieving very low distortion while still maintaining the musical, harmonic character for which Rupert Neve is known.
- Page 9 Optical S/PDIF Input The Optical S/PDIF digital input is the second of three digital inputs available on the RNDAC rear-panel. Similar to the Coaxial S/PDIF connection, the Optical connection supports PCM playback up to 192 kHz at 24 bit resolution. The Opti- cal S/PDIF connection is a common alternative found on consumer products such as home entertainment systems and televisions.
-
Page 10: Rndac Features
RNDAC USB Audio Setup RNDAC Initial USB Connection for Windows The first time the RNDAC is plugged into your Windows PC, you will need to install the necessary drivers to properly enable the RNDAC features. 1. Visit fidelice.com and download the RNDAC Windows driver installer listed on the RNDAC product page. 2. - Page 11 USB Playback Sample Rate Configuration It is important to understand that some media players (such as Tidal and JRiver Media Center) output the correct USB control transfer data to notify the RNDAC to change sample rate based on the source file. However, some media players do not output this data.
- Page 12 4. Navigate to the “Advanced” tab. The “Advanced” menu allows the user to manually configure the sample rate. Select a Sample Rate from the drop-down list and then click “OK. ” Playback may be momentarily interrupted. Sample Rate Configuration (Mac) 1.
-
Page 13: Dsd Playback
DSD Playback The RNDAC is capable of PCM and DSD playback. PCM (Pulse-Code-Modulation) is by far the most common form of digitally encoded music, however, DSD (Direct-Stream-Digital) is enjoying increased attention from the hi-fi community. Both formats approach audio encoding with different methodologies, and each format has its supporters. It was im- portant that we built in the capability for high-quality PCM and DSD playback within the RNDAC, ultimately allowing the user to decide which format they prefer. -
Page 14: Micro-Usb Firmware Update
Micro-USB Firmwate Update In the event that the RNDAC needs to have its firmware updated, follow this procedure: 1. Start with the RNDAC powered OFF. 2. Connect a USB-Micro to USB-A cable between your computer and the RNDAC rear-panel USB Firmware Update port but DO NOT power ON the RNDAC. - Page 15 5. Now that we know what COM port to use, visit fidelice.com and download the RNDAC Firmware Bootloader and the latest RNDAC Firmware file. Depending on your computer configuration, you may also need to download the Java Runtime Environment from www.java.com/en/download to run the RNDAC Bootloader. 6.
- Page 16 9. Navigate to the “Settings” tab. Click on “Serial” within the settings drop-down menu. A new panel will pop-up. 10. Click on the COM Port drop-down menu. Select the COM Port Number you referenced in Step 4 (in this example: COM7).
- Page 17 11. Manually change the “Bootloader Offset (Byte Address)” to read: 0xA00 12. Click on the “Program Device” button in the bottom right corner. If a successful connection is made, you will see the “Status” change to “Device Connected Successfully” and the firmware update will commence. Once complete, the Status will change to “Disconnected after Programming was Successful.
-
Page 18: Specifications
RNDAC Specifications Analog Path Specifications Balanced XLR Input to Balanced XLR Output (FIXED Volume) = 40 Ω Balanced with 30 ft Output XLR SOURCE Input Impedance 10 kΩ Output Impedance 40 Ω Maximum Input Level (+4dBu Selected) +23.5 dBu Maximum Output Level +23.5 dBu Noise @ FIXED Volume (10 Hz - 22 kHz BW) -101.2 dBV typical... - Page 19 Coaxial S/PDIF Input to Unbalanced Headphone Output 192 kHz SR with Slow Roll-Off Filter Output Impedance 0.01 Ω Noise @ Max Volume (10 Hz - 22 kHz BW) -95.2 dBV typical Frequency Response (5 Hz to 20 kHz) +/- 0.1 dB typical Passband (0.5 Hz to 90 kHz) -3dB typical THD+N (1W into 16 Ω...
- Page 20 Analog Frequency Response - Balanced In to Balanced Out (Z = 40 Ω Balanced, 30 ft. Output XLR SOURCE Analog Frequency Response - Unbalanced In to Unbalanced Out (Z = 470 Ω Unbalanced) SOURCE...
- Page 21 Analog Frequency Response - Balanced In to Unbalanced Headphone Out (Z = 40 Ω Bal, Z = 16 Ω) SOURCE LOAD Digital Filter Frequency Response - 192kHz SR COAX S/PDIF In to Balanced Out...
- Page 22 Digital Filter Frequency Response - 192kHz SR COAX S/PDIF In to Unbalanced Out Digital Filter Frequency Response - 192kHz SR COAX S/PDIF In to Unbalanced Headphone Out...
- Page 23 Digital Filter Frequency Response - 192kHz SR COAX S/PDIF In to Balanced Headphone Out (Z = 16 Ω) LOAD 192kHz SR COAX S/PDIF In - Unbalanced vs. Balanced Headphone Out Frequency Response...
- Page 24 PRODUCT WARRANTY Rupert Neve Designs warrants this product to be free from defects in materials and workmanship for a period of one (1) year from date of purchase, and agrees to remedy any defect identified within such one year period by, at our option, repairing or replacing the product.
