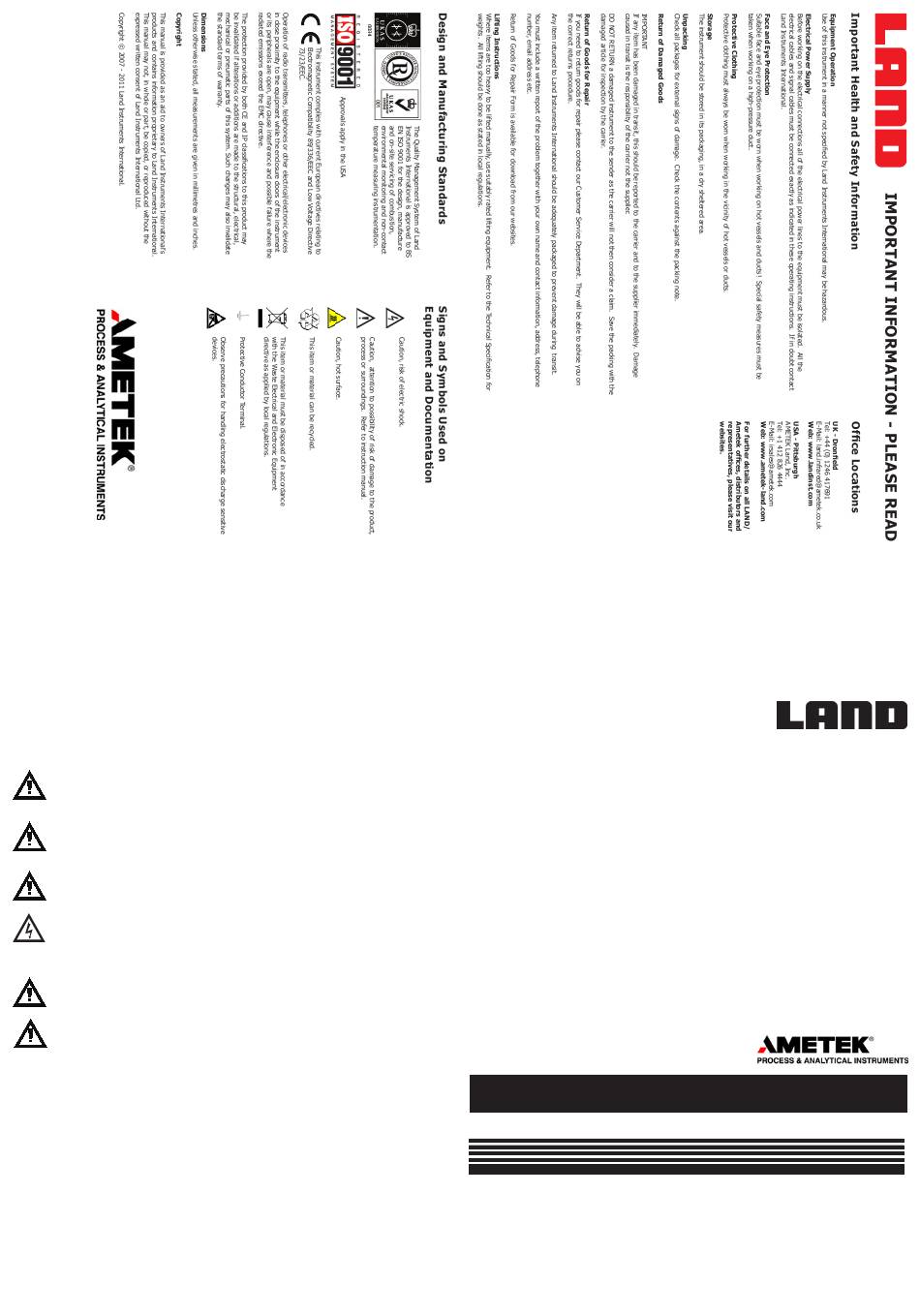

Safety Information
Warnings
To prevent damage to the equipment, ensure that the DPU
(power supply) and signal processor are fully interconnected,
before switching on the mains power supply.
Connections to this equipment must be carried out in
accordance with current IEE regulations, and all wiring must
be separated in accordance with IEC1010.
Before installation, check that the model number and supply
voltage suit your application.
This device has mains voltages connected to its terminals. It
is recommended, therefore, that the device is mounted within
a suitable enclosure in order to avoid unintentional contact
with the mains supply.
This product is designed for Installation class II service.
This product is designed for use in Pollution - Degree 2
environments.

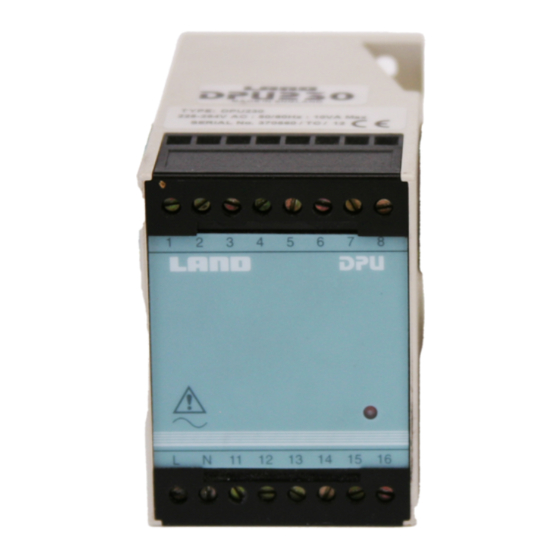

DPU
Installation Guide
Land Instruments International
Dronfield, S18 1DJ
England
Telephone:
+44 (0) 1246 417691
Facsimile:
+44 (0) 1246 410585
Email: land.infrared@ametek.co.uk
Internet: www.landinst.com
Copyright © 2012 Land Instruments International
AMETEK Land, Inc.
150 Freeport Road
Pittsburgh PA 15238 U.S.A.
Telephone: (412) 826-4444
Facsimile: (412) 826-4460
Email: irsales@ametek.com
Internet: www.ametek-land.com
Part Nº 198.023
Issue 6 09/2012
Advertisement
Subscribe to Our Youtube Channel
Summary of Contents for Ametek Land DPU
- Page 1 Safety Information Warnings To prevent damage to the equipment, ensure that the DPU (power supply) and signal processor are fully interconnected, before switching on the mains power supply. Connections to this equipment must be carried out in accordance with current IEE regulations, and all wiring must be separated in accordance with IEC1010.
- Page 2 AC Mains Neutral No connection Notes No connection No connection The DPU is designed to be used with the Land Uno No connection thermometer or the Landmark Basic, Technic and No connection Profibus signal processors. Refer to the relevant User...
