BENSON HEATING CP2 User Handbook

BENSON HEATING
BENSON CP2
DIGITAL REMOTE CONTROL
PANEL USERS HANDBOOK
(Models On/Off & High/Low)

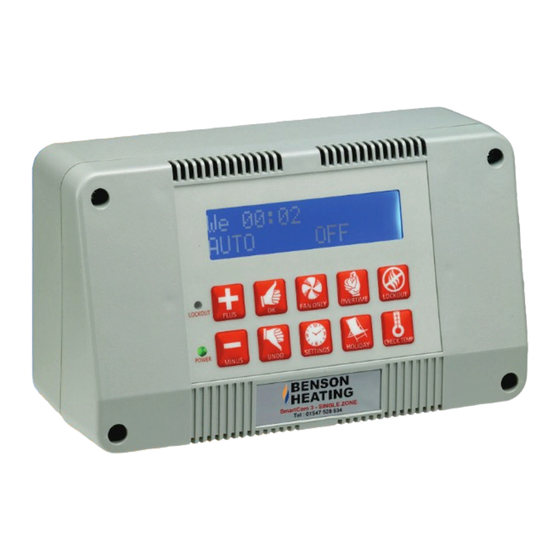

The CP2 is a purpose built remote control panel incorporating a digital control clock & internal
room & frost temperature thermostat (plus optional high/low stat if required). Three externally
mounted switches manually control the unit. Each switch has two positions: these positions being
identified using the convention of bottom of the rocker pushed in as 'ON' and the top of the rocker
pushed in as 'OFF'.

FUNCTION OF SWITCH POSITION

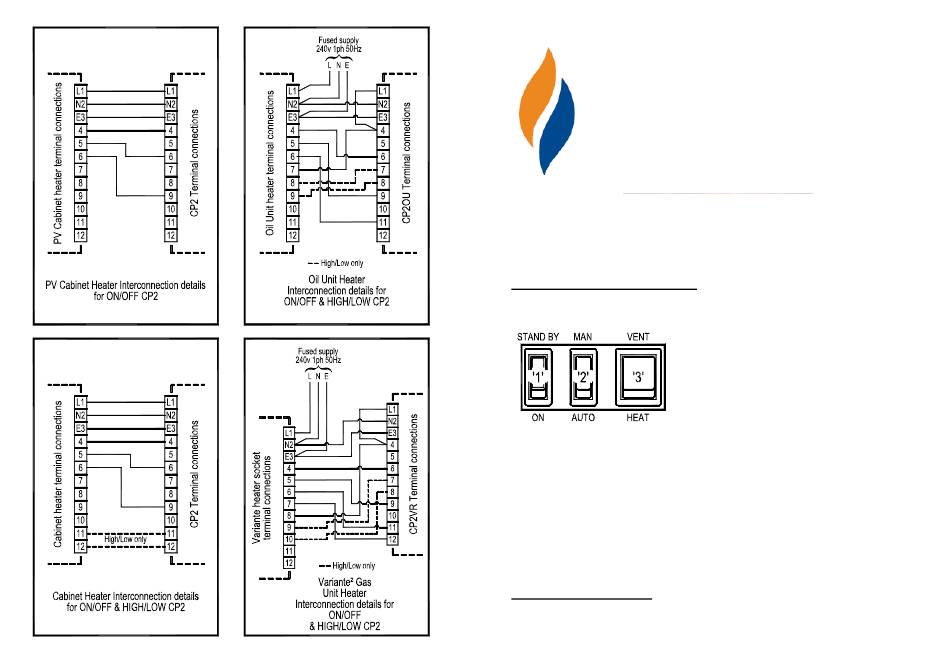

Figure 1 – Control Switches
Switch One – 'STANDBY / ON'
This switch does NOT control the power supply to the
panel. The panel is live and the time switch will run
whichever position this switch is placed in.
When this switch is in the 'STANDBY' position the
burner will not operate. Use this switch to temporarily
stop the burner without changing the time switch.
Switch Two – 'AUTO/MAN'
When this switch is in the 'AUTO' position the time switch will control the burner operation of the
heater. When this switch is in the 'MAN' position this will manually override the time switch
operation.
Switch Three – 'VENT/HEAT'
When this switch is in the 'VENT' position the main blower fan will run and will inhibit burner
operation. When this switch is in the 'HEAT' position the burner will run, subject to the positions
of the other two switches and the internal control thermostat.

THERMOSTAT SETTINGS

The internal thermostats will require setting. Usually the frost thermostat is set at a nominal 5
this can be changed at the discretion of the installer/user for prevailing site conditions.
Part No. 33-40-220 issue 6
