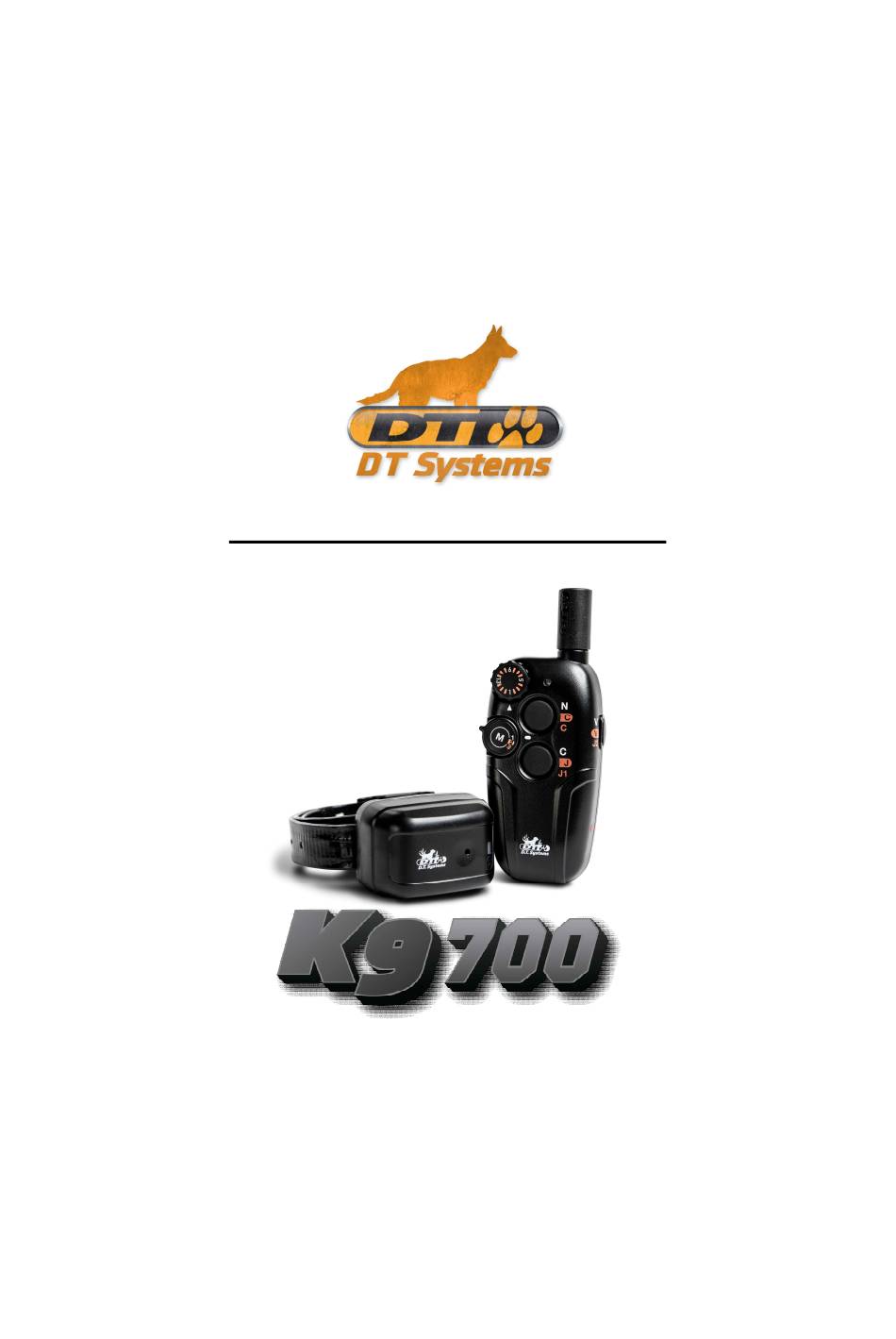

- Page 1 K9 700 remote e-collar trainer With SmartLED Owner’s Manual...
- Page 2 IMPORTANT NOTE: Please read this owner’s manual in its entirety before operating this unit. Should you have any questions about our collars or their operation please contact our Customer Service department (see back page for address, phone number, and email information). NOTICE! According to how you use your transmitter, the transmitting range...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Table of Contents ........3 · Introduction..........4 · Package Contents ........5 · Model Features ........5 · Transmitter Parts & Functions ....6-7 · Installing Transmitter 9V Battery ....8 · Training MODES & Button Functions…….9 · Collar Unit Parts & Functions....10 ·... -
Page 4: Introduction
The new K9 700 is the result of over 30 years of experience researching, producing, and field testing the best E-collars in the business. -
Page 5: Package Contents
PACKAGE CONTENTS · Transmitter with Compact Antenna and Lanyard (9V battery not included) · Collar Receiver with Rechargeable Li-Poly Battery (already installed) · Battery Charger (for collar battery) · Test Light · Owner’s and Training Manuals MODEL FEATURES · Small, Compact, Lightweight design ·... -
Page 6: Transmitter Parts & Functions
TRANSMITTER PARTS & FUNCTIONS Compact Antenna Smart LED Indica- Intensity Button 1 - Nick Level Dial or Continuous Button Button 3 - Vibra- tion or Jump2 Training Mode- Selector Dial Button 2 - Continuous, Jump, or Jump1 Button Battery Cover (back) Magnet On/Off Indicator (red dot) - Page 7 TRANSMITTER PARTS & FUNCTIONS Compact Transmitter Antenna - Always check that the Antenna is securely fastened to the transmitter. Hand tighten only. Use caution when attaching Antenna as over-tightening may cause damage to the Antenna or antenna mount. LED Indicator Light - The LED lights up while pressing any of the Transmitter buttons.
-
Page 8: Installing Transmitter 9V Battery
+/- poles lined up with diagram. Do not over-tighten the screws or you may crack the plastic. INSTALLING TRANSMITTER 9V BATTERY The K9 700 transmitter uses a 9-volt battery (not included). We recommend using a name-brand Lithium long life battery. The Transmitter may not operate properly with a generic brand battery. -
Page 9: Training Modes & Button Functions
TRAINING MODES & BUTTON FUNCTIONS MODE 1: Button 1 N = Button 2 C = Button 3 V = (Denoted by Nick Continuous Vibrate White letters) Function Function Function N—C—V Mode 2: Button 1 C = Button 2 J = Button 3 V = (Denoted by Continuous... -
Page 10: Collar Unit Parts & Functions
COLLAR UNIT PARTS & FUNCTIONS Charging Receptacle Contact points on On Back of Unit Back of unit Smart LED Battery indicator light Magnetic On/ Collar Belt with Maxx Off Switch Range internal Antenna Collar Unit Specifications Unit Dimensions Weight K9 1100 2 1/4”... - Page 11 COLLAR UNIT PARTS & FUNCTIONS Battery Charging Receptacles - The charger cable plugs into the Charging Receptacle for recharging (located on the side of the Collar Receiver facing the dog’s neck). After charging, always close the Charg- ing Receptacle with the rubber plug to prevent foreign particles from getting inside the unit.
-
Page 12: Smartled
SmartLED K9 700 collar units are equipped with the SmartLED battery status system. The SmartLED system lets you know when the unit is charging and when the charging is complete. It also gives you a status on how much charge is remaining in the battery during use, when it needs charging, and when the batteries will need to be replaced. -
Page 13: Charging The Batteries
CHARGING THE BATTERIES The K9 700 collar unit is equipped with rechargeable Quick Charge Lithium (Li-Poly) batteries, which are not memory sensitive and do not require depletion before recharging. Although batteries come partially charged from the factory, it is recommended that they are given a full charge (about 2-3 hours) before initial use. -
Page 14: Turning On And Off
TURNING ON/OFF The Transmitter is always in a permanent sleep state. It is only ON when a button is being pressed and does not need to be turned off by the user. If the Transmitter does not activate, make sure you have a good battery installed. Turning the Collar Unit ON/OFF: Turning the Collar Unit ON and OFF uses the same procedure:... -
Page 15: Programming Jump & Testing Unit
Programming JUMP Levels & Testing Unit Before testing, make sure that both units are fully charged and the power to the Collar Receiver is “ON”. SETTING THE JUMP LEVEL 1. Press and hold Button Jump button. 2. While holding Jump button, turn Intensity Dial to de- sired Jump stimulation level. -
Page 16: Programming The Collar
PROGRAMMING THE COLLAR If your current collar unit is not responding to the transmitter, it may also need to be reprogrammed to the transmitter. 1. Hold the Transmitter Magnet Indicator (red dot) directly against the Magnetic Activation Switch (small bump) on the side of the Collar Unit. 2. -
Page 17: Properly Fitting The Collar
PROPERLY FITTING THE COLLAR NOTE: Proper collar tightness and position are very important to insure safe and consistent collar use. All electronic collars need to be very snug around the dog’s neck to work properly. They must be just tight enough to allow the “contacts”... -
Page 18: Setting The Intensity Level
SETTING THE INTENSITY LEVEL It is very important to set the correct intensity level on your K9 700. Training System before beginning your training sessions to provide the proper level of stimulation without over-stimulating your dog. 1. Place the Intensity Selection dial so that the system is set on Level 1. -
Page 19: Maintenance
MAINTENANCE It is very important to periodically clean your K9 700 system for maximum performance. Regular cleaning will also lengthen the life of your unit. Clean the collar box, belt and buckle with · lukewarm water and a mild anti-bacterial soap. -
Page 20: Important Safety Notes
Do not use with aggressive-tempered dogs. · Your K9 700 collar is a very valuable tool if used · correctly. It is extremely important that you completely understand all the functions of the collar and how to properly train with it before placing it on your dog. -
Page 21: Warranty
WARRANTY · D.T. Systems Premium Lifetime Warranty is the best warranty offered in the industry. This warranty is free to participating U.S. customers (a completed warranty registration card must be returned within 30 days of original purchase). This changes our normal one year parts labor warranty limited... -
Page 22: Fcc/Ic/Ce Compliance
Ce dispositif de radiocommunication de catégorie II respecte la norme CNR-310 d'Industrie Canada. Declaration of Conformity (Directive 1999/5/EC) D.T. Systems, Inc. declares that the K9 700 products are in compliance with the essential requirements under Article 3 of the R&TTE Directive 1999/5/EC by application of the following standards: Article 3.1(a) - EN 60950-1... - Page 23 NOTES: _____________________ _____________________ _____________________ _____________________ _____________________ _____________________ _____________________ _____________________ _____________________ _____________________ _____________________ _____________________ _____________________...
- Page 24 2872 Walnut Hill Lane Dallas, Texas 75229 Tel: (214) 350-9446 Fax: (214) 350-7847 Website: www.dtsystems.com E-mail: customerservice@dtsystems.com K9 700 2019.6. 18 Printed in Korea...
