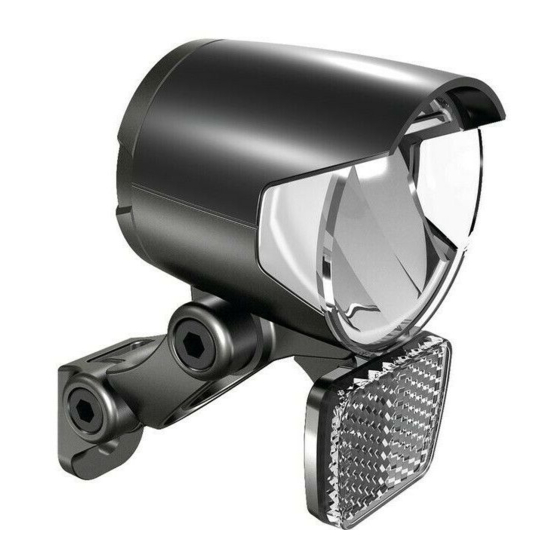

HERRMANS H-BLACK MR4 EBIKE User Manual

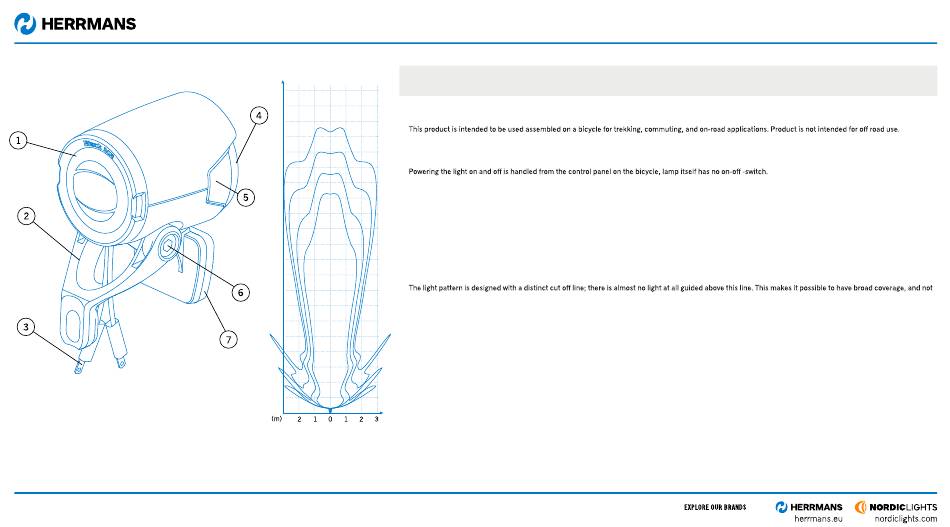

1. Non-rotatable back cover
2. Bracket
3. Power connectors
21
20

General:

19
18
The light works with 6-12V (DC) current. Operation with a dynamo (AC) is not possible, separate dynamo (AC) version available. Total measured light output of this
product is 120 lumens. Product is in accordance with the German StVZO-, and French TP LBi requirements. The supplied clear front retro reflector meets the
17
European EI A, and the German K regulations. Approval numbers can be found on top part of the front lens, and on front surface of the retro reflector.
16
15

Assembly:

14
Fasten the bracket (2) to the front fork of the bicycle. Connect the cables (3) to the electric system according to the drive unit manufacturers specifications. Make
13 sure to connect the cables the correct way. The minus (-) cable is marked with grey; sometimes the minus is also referred to as "ground". The plus (+) cable is plain
black. The front reflector (7) is attached by simply clicking it in below the main body of the light.
12
Notice: Attach the cables properly to the bicycle to prevent them from getting entangled with moving parts, nor getting pulled too tight once operating the bicycle.
11
Please note the lighting equipment must not be concealed.
10
9

Adjusting:

8
to dazzle the oncoming road users at the same time. Keeping this in mind, adjust the light accordingly; make sure not to point the light too high. Road view light
7
pattern can be seen in the second of the two images.
6

Care and disposal:

5
The Light is generally designed to be maintenance free in its intended use scenario. The LED will last the lifetime of the lamp.
When cleaning is needed use a damp cloth, and mild general detergent. Do not submerge the light unit, as this is likely to cause damage. Take care not to scratch
4
the front lens, as this can impair the performance of the light.
3
Do not dispose the product within household waste. Dispose the product according to WEEE -regulations at a certified collection point.
This product is guaranteed against defects in materials, and craftmanship for a period of two years.
2
1
For more information consult your retailer, or contact herrmans@herrmans.eu.
Herrmans Bike Components Ltd
PB36
68601 Jakobstad, Finland
4. Front lens 7 Click-in EIA, K approved front reflector
5. Side windows
6. M4 allen key bolt & M4 nut
+358 20 134 5100
herrmans@herrmans.eu
www.herrmans.eu
USER MANUAL H-BLACK MR4 EBIKE
Made in Finland
EN
