10.2.

Networked Remote or Local Communication

The charger Ethernet port can be c onnected t o an Ethernet switch or router via a standard Ethernet cable in
order to add the charger to network. See Section 10.3 for Manual (Static) M ode configuration instructions for
networked communication.
networked communication. Once the charger has been added t o a net work, it can be accessed via a remote
or local laptop computer, desktop computer, smart phone, or tablet via a standard Internet browser.
10.3.

Manual (Static) Mode

The standard settings from the factory are "Manual (Static) Mode" with an "IP Address" of "10. 10.10.210" and
a "Subnet Mask" of "255.255.255.0".
settings. If thi s i s the ca se, the charger may include a "Quick Start Guide" that li sts the se settings or
you may need to get these settings from your organization's management.
Direct Local Communication
In order to establish direct local communication with a laptop c omputer, after connecting the charger Ethernet
port to the laptop Ethernet port, follow the steps below on a laptop comput er. (The steps below are for
Windows 7. If you are using a different version of Windows or a different operating system, the steps will
vary).

Navigate to:
o
Start >> Control Panel (View by: Category) >> Network and Internet >> Network and Sharing
Cent er >> Change Adapter Settings
-OR-
o
Start >> Control Panel (View by: Large Icons or View by: Small Icons) >> Network and
Sharing Center >> Change Adapter Settings

Right -click on "Local Area Connection" and select "Properties "

Select "Internet Protocol Version 4 (TCP/IP v4)" and click the "Properties " button

Select "Use the following IP address:"

Enter an "IP address:" of "10.10.10. XXX", where "XXX" is any 3-digit number other than "210" (for
example, "10.10.10.220")

Enter a "Subnet mask:" of "255. 255.255.0"

Press the "OK" button

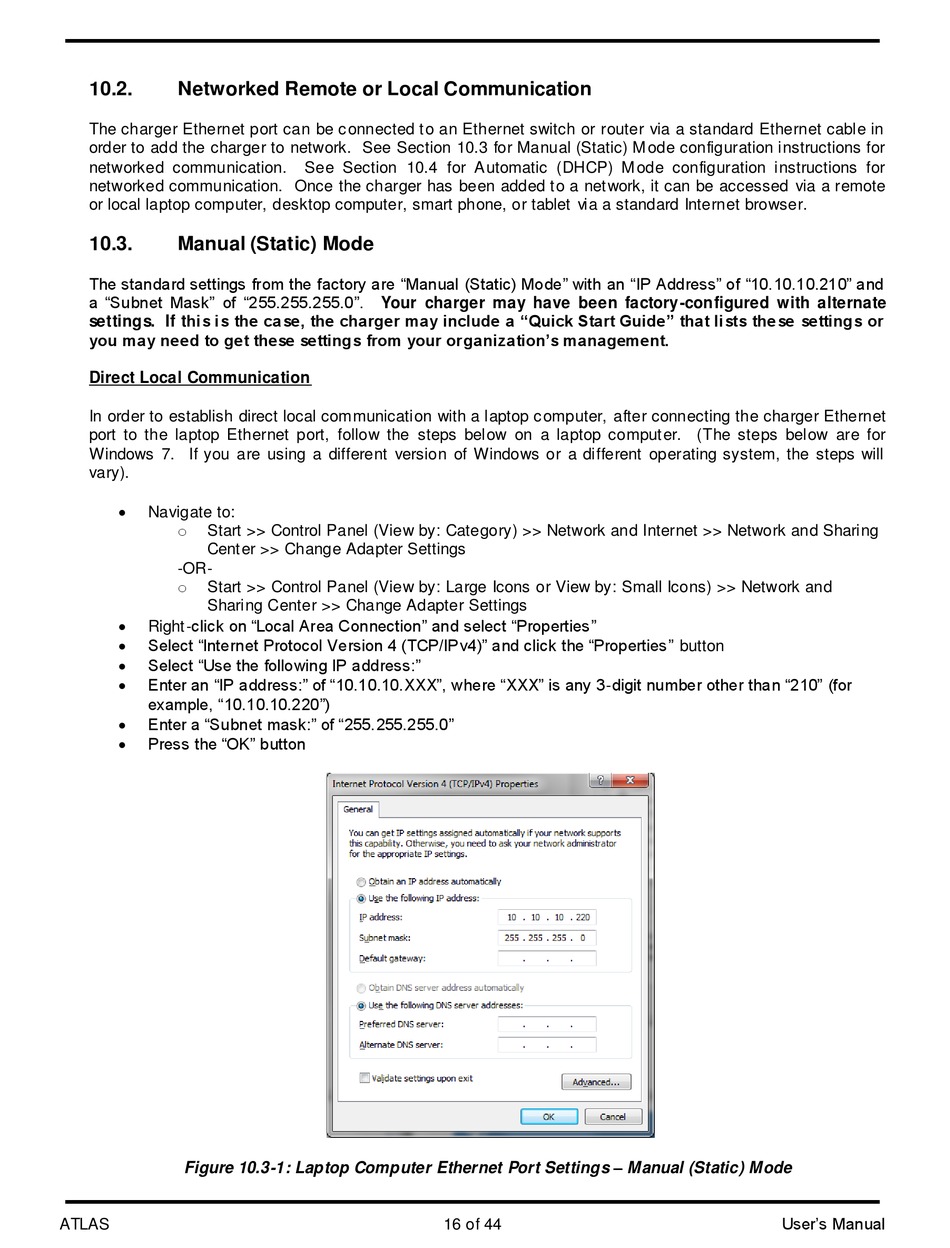

Figure 10.3-1: Laptop Computer Ethernet Port Settings – Manual (Static) Mode
ATLAS
See Section 10.4 for A utomatic (DHCP) M ode configuration instructions for
Your charger may have been factory -configured with alternate
