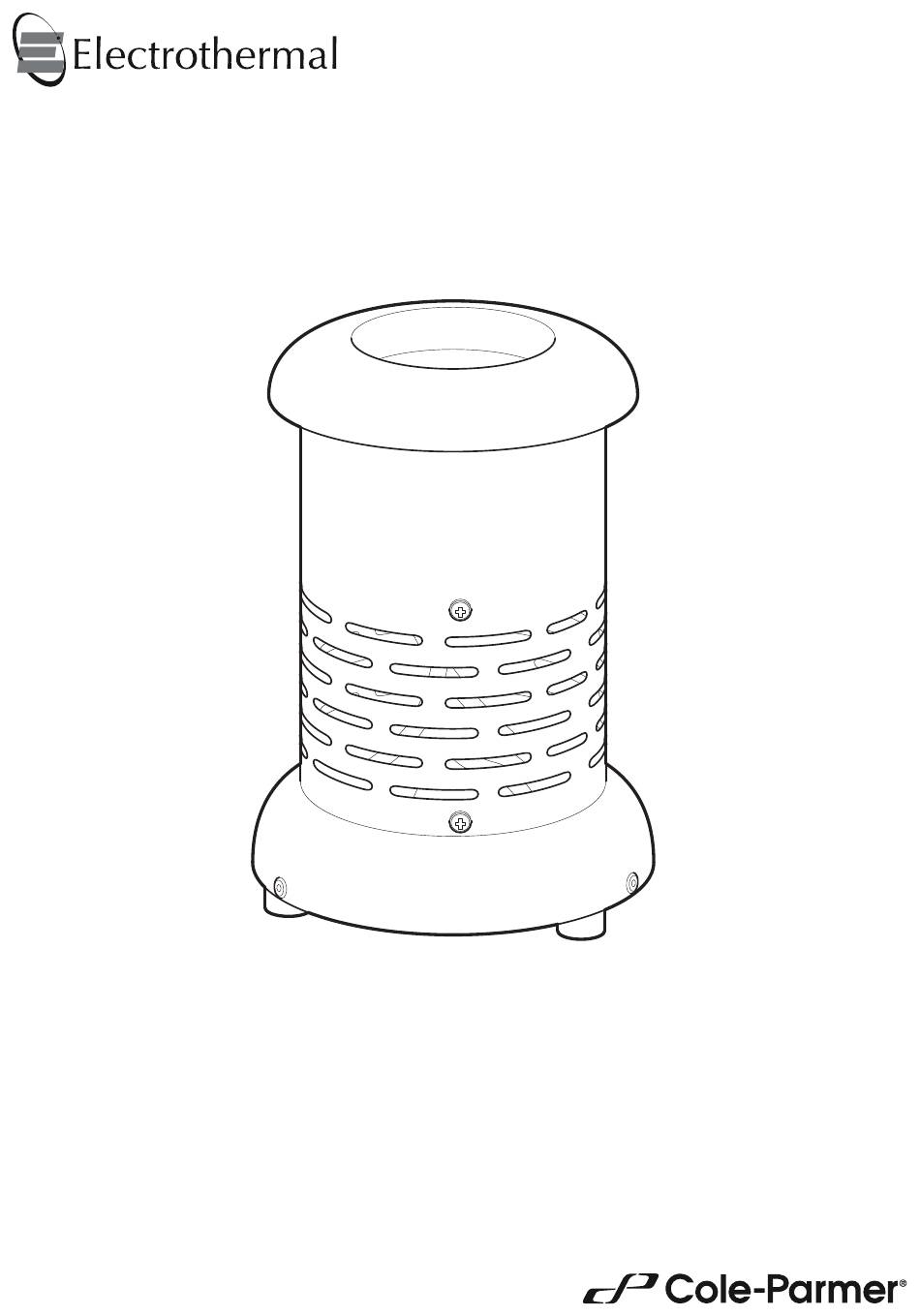

- Page 1 ELECTRIC BUNSEN BA6101 BA6101/C BA6101X1 BA6101/CX1 Instruction Manual M6877 / Version 9.7...
- Page 2 Please take your time to read this Instruction Manual in order to understand the safe and correct use of your new Electrothermal product. It is recommended the responsible Body for the use of this equipment reads this instruction manual and ensures the user(s) are suitably trained in its operation. Introduction.
- Page 3 1. INTRODUCTION. 1.1. The Electrothermal range of Electric Bunsen’s have a high temperature heat source designed for general purpose laboratory use. They are suitable for the non- contact radiant heating of materials in test tubes, crucibles, small flasks and beakers. 1.2.
- Page 4 2. SYMBOLS AND USING THIS INSTRUCTION MANUAL. 2.1. Throughout this instruction manual the following symbols are shown to identify conditions which pose a hazard to the user, or to identify actions that should be observed. These symbols are also shown on the product, or its packaging. When a symbol is shown next to a paragraph or statement it is recommended the user takes particular note of that instruction in order to prevent damage to the equipment or to prevent injury to one’s self or other people.
-
Page 5: Safety Information
3. SAFETY INFORMATION. This product has been designed for safe operation when used as detailed in accordance with the Manufacturer’s instructions. NOTE: Failure to use this equipment in accordance with the manufactures operating instructions may compromise your basic safety protection afforded by the equipment and may invalidate the warranty / guarantee. - Page 6 Do not lean or stretch over equipment when in use. Do not immerse unit in water or fluids. Do not spill substances onto this product. If spillage does occur, disconnect unit from mains supply and follow instructions as detailed in Maintenance. (Section 9). Do not cover this product whilst in use.
-
Page 7: Unpack Contents
4. UNPACK CONTENTS. Please check the contents of your carton against the packaging diagram. Item Description Instructions Manual Electric Bunsen Mains leads in BA6101 or BA6101/C (UK and Schuko lead) Mains lead in BA6101X1 or BA6101/CX1 (US lead) Serial Number Unit Model/Cat Number For future reference please record your... -
Page 8: Installation
5. INSTALLATION. 5.1. Electrical Safety and Installation. 5.1.1. This equipment is designed to be safe under the following conditions:- Indoor use. • Altitude up to 2000 meters. • Temperatures between 5°C and 40°C. • Maximum relative humidity 80% for temperatures up to 31°C decreasing •... -
Page 9: Environmental Protection
6. ENVIRONMENTAL PROTECTION. 6.1. Maximum consideration has been given to environmental issues within the design and manufacturing process without compromising end product performance and value. 6.2. Packaging materials have been selected such that they may be sorted for recycling. 6.3. At the end of your product and accessories life, it must not be discarded as domestic waste. -
Page 10: Product Operation
7. PRODUCT OPERATION. 7.1. For general use, it is recommended this product be operated with an Electrothermal MC5 Controller (Energy Regulator). Overview of Bunsen Item Description Mains input cord set. With Male IEC socket. Warning labels. (Hot surface and refer to this Instructions Manual). - Page 11 7.2.4. For effective heating of sample place the test tube so that it is positioned approximately 25mm directly above the top of the Bunsen, thus allowing for maximum vertical radiation into the vessel. 7.2.5. For quick heating, the test tube should be positioned so that it is just inside the mouth of the ceramic heating bowl.
- Page 12 7.2.7. A proprietary retort stand and clamp should be used to securely hold and position vessels over the Bunsen ceramic heating bowl. Parts of the Bunsen get very hot during operation, do not move the 7.2.8. Bunsen when still connected to power or still hot. Refer to diagram of hot zones at the end of section 2.2 and 3.2 for safe operating distance.
-
Page 13: Technical Specification
8. TECHNICAL SPECIFICATION. 8.1. Specification. Mains Input Supply Voltage BA6101 Mains Input Supply Voltage 230V AC at 50/60Hz. BA6101/C Mains Input Supply 230V AC at 50/60Hz. BA6101X1 Mains Input Supply 110V – 120V AC at 50/60Hz. BA6101/CX1 Mains Input Supply 110V –... - Page 14 8.3. Dimensions and Weight (unpacked). Weight 0.5Kg (1.1lb).
-
Page 15: Maintenance
9. MAINTENANCE. 9.1. General Information. Unplug the unit from the mains voltage supply and allow it to cool before undertaking any maintenance tasks. Maintenance should only be carried out under the direction of the Responsible Body, by a competent electrician. Failure to do so may result in damage to the product and in extreme cases be a danger to the end user. - Page 16 9.2.3. Unscrew the terminal block positions and remove the fuses. Fit replacement fuses of the correct rate and value. 9.2.4. Reinsert the base into the body and secure using the previously removed screws. 9.2.5. Prior to further use, the Responsible Body shall check the electrical safety of the unit.
-
Page 17: Parts And Accessories
10. PARTS AND ACCESSORIES. Part Code Description AZ9131 Fuse: F4A 250V Radial lead Quickblow. (BA6101, BA6101/C) Fuse: AZ9132 F5A 250V Radial Lead Quickblow. (BA6101X1, BA6101/CX1) HH179(S) Mains cord and moulded IEC plug and lead set (UK) 230V – 10A BS1363/A (BA6101, BA6101/C) HH180(S) Mains cord and moulded IEC plug and lead set (Europe) 230V (BA6101, BA6101/C) -
Page 18: Customer Support
11. CUSTOMER SUPPORT. For help and support in using this product, please contact Customer Services at the following address. Cole-Parmer Ltd. Beacon Road, Stone, Staffordshire, ST15 0SA, United Kingdom Tel: +44 (0)1785 812121 General enquiries: cpinfo@coleparmer.com Order enquiries: cpsales@coleparmer.com Technical support: cptechsupport@coleparmer.com www.electrothermal.com... -
Page 19: Eu Declaration Of Conformity
