Nextech LA5095 User Manual

Smart lock deadbolt kit with bluetooth technology

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

Distributed by:

TechBrands by Electus Distribution Pty. Ltd.

320 Victoria Rd, Rydalmere

NSW 2116 Australia

Ph: 1300 738 555

Int'l: +61 2 8832 3200

Fax: 1300 738 500

www.techbrands.com

Made in China

User Manual

LA5095

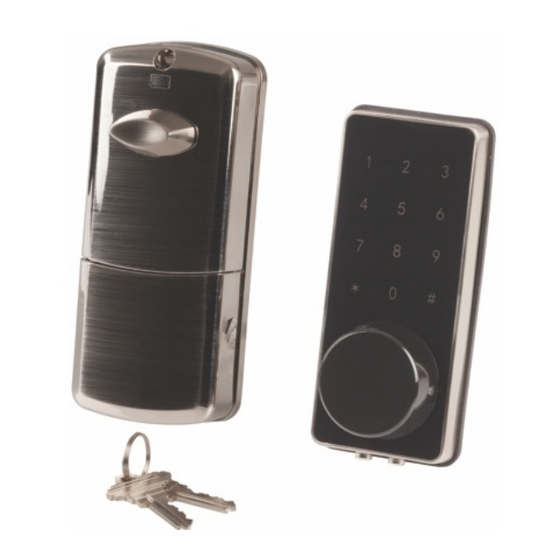

Smart Lock Deadbolt Kit

With Bluetooth Technology

Please read this manual before operating your Smart Lock

and keep it for further reference.

Table of Contents

Need help?

Do you have a question about the LA5095 and is the answer not in the manual?

Questions and answers

Summary of Contents for Nextech LA5095

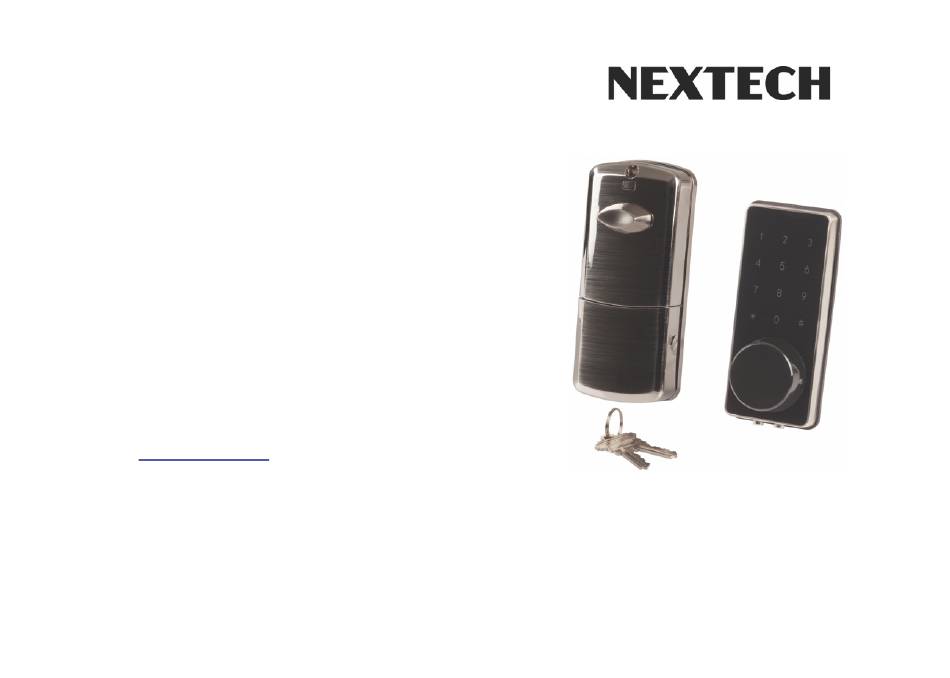

Page 1 Ph: 1300 738 555 Int’l: +61 2 8832 3200 Fax: 1300 738 500 www.techbrands.com Made in China User Manual LA5095 Smart Lock Deadbolt Kit With Bluetooth Technology Please read this manual before operating your Smart Lock and keep it for further reference.
Page 2 The new Smart Lock uses the latest technology to make your life easier. • The user manual enables you to operate the product safely • Please read the user manual before using this NEXTECH Smart Lock Product Profile 2. Dimensions 1 2 3 Touch Screen...
Page 3 Step 1 Step 4 Note: Put the lock cylinder Step 2 vertically into the hole. Step 5 Step 6 Note: Push the cylinder out Before installation. Step 3 Note: If it is a left hand door, please turn the switch to L. If it is a right hand door, please turn the switch to R.
Page 4 Step 7 Step 8 3. Installation Precautions 3.1 Doorjam > 110mm. 3.2 Door thickness: more than 32mm and less than 48mm. 3.3 Lock cylinder installation: push the cylinder out before installation. 3.4 Back panel installation: connect the data cable of the front panel to the socket of the back panel and insert the redundant part of the data cable into the door hole of the lock.
Page 5 IV. APP Operation Guide 2.1 Turn on the Bluetooth on your phone APP Installation and Registration 2.2 Open the APP. Then click “Add Lock” and Lock”. 2.3 Touch the touch screen button of the smart lock, the number keys indicator light will be bright and click “Next” on the APP. Download the “TTLock”...
Page 6 3.2 Send Passcode 3.6.3 Display the name of the Lock. You can manually change name of the door. The passcode receiver can unlock the smart lock by entering the passcode 3.6.4 Group: the administrator can add multiple locks for grouping, manually.
Page 7 V. Operation Instructions for Different Functions 3.7 System Settings 1. Unlock 3.7.1 Pattern Passcode: off-by-default, you can manually open it to 1.1 Unlock with APP: Turn on the app and click the lock icon in the set your favourite pattern passcode to unlock the APP. interface to unlock it.
Page 8 9. Passcode Touch Protection 3. Modify the Adminsitrator’s Unlocking Passcode Open the APP click Setting-click Admin Passcode enter the new passcode If you enter the wrong 4-9 digits passcode for 5 times, the touch passcode key will be automatically locked for 5 minutes and cannot be operated to with 4-9 numerical digits.
Page 9 VI. FQA Q: The smart lock has started beeping whenever I lock or unlock the door. Q: What devices are compatible with the NEXTECH smart lock. A: This is an indication your battery is low; it’s time to change the batteries.
Page 10 1. Avoid keeping and storing phones and fobs unnecessarily close to the lock when inside the home. 2. Restrict access to your NEXTECH smart lock’s back panel and routinely check your settings to ensure they have not been altered without your knowledge.
