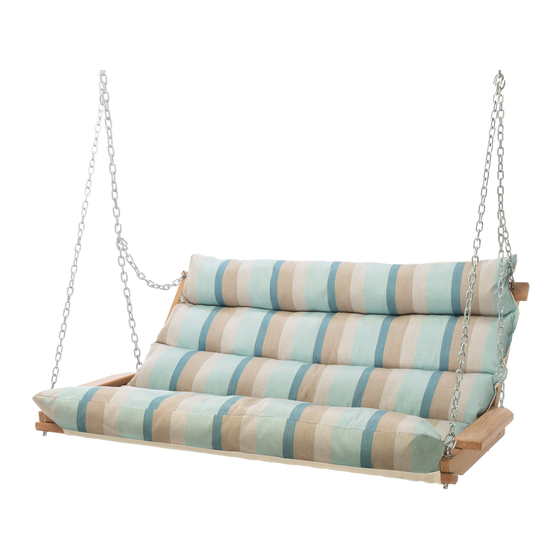

ORIGINAL CUMARU CUSHIONED
DOUBLE SWING
I N ST R U C T I O N S
ASSEMBLY
STEP 1. Open up left and right arm assembly.
LEFT ARM
ASSEMBLY
RIGHT ARM
ASSEMBLY
HARDWARE PACK
(2) CHAIN SETS
(2) TREE HOOKS
(Not pictured. Eye
bolts, lock nuts and
washers included on
chain set.)
CHAIR PARTS
• LEFT ARM ASSEMBLY
• RIGHT ARM ASSEMBLY
• ROPE SEAT
SUGGESTED TOOLS
• MALLET
• 7/16" WRENCH
• 1/2" WRENCH
STEP 2. Attach upper rope
seat bar to left and right verti-
cals with shorter end of chain
sets. Attach middle chain to
left and right arm. (Cushion
not pictured.)
EYE
BOLT
WASHER
RIGHT
LOCK NUT
VERTICAL
UPPER ROPE
RIGHT ARM
SEAT BAR
SHORT
CHAIN
LEFT
VERTICAL
LEFT ARM
