Summary of Contents for FarmTek PolyMax 108292

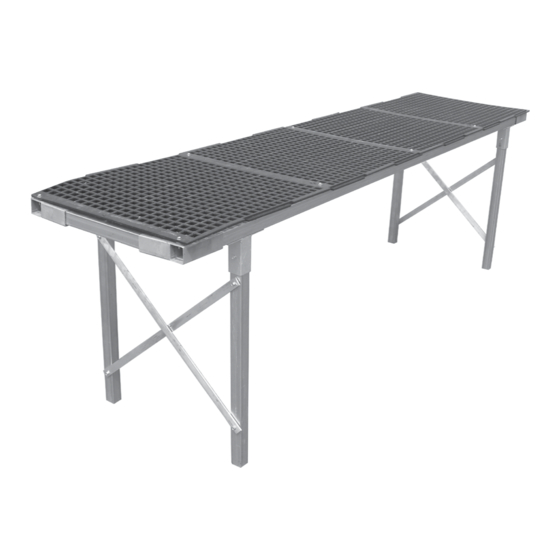

- Page 1 GREENHOUSE BENCH KITS PolyMax® Bench Systems SKU# DIMENSIONS All Rights Reserved. Reproduction is prohibited without permission. 108292 2' W x 8' L (Top only) 108292S 2' W x 8' L x 30" H Revision date: 09.03.08...
- Page 2 GREENHOUSE BENCH KITS REQUIRED TOOLS The following list identifies the main tools needed to assemble the bench. Additional tools may be needed. • Tape measure or measuring device • Marker READ THIS DOCUMENT BEFORE YOU • Variable speed drill and impact driver (cordless with BEGIN TO ASSEMBLE THE BENCH.
- Page 3 GREENHOUSE BENCH KITS The following graphics and photos will help you identify the different parts of the bench. Square Tube SKU# Cut Length Quantity S15P0182 1.5" x 1.5" x 18.25" 104779 1.5" x 1.5" x 96" S15P028 1.5" x 1.5" x 28" FA4482B 100441 (108292S only)
- Page 4 GREENHOUSE BENCH KITS Gather two (2) 96" tubes, two (2) 18.25" tubes, and four (4) 2-way corner fittings. Assemble as shown below. Secure each 2-way corner fitting to the tubes using a Tek screw positioned on the inside of the fitting. Do not position Tek screws on the top or bottom of the frame. ATTENTION: Set the outside-to-outside dimensions and then measure the assembled frame corner-to- corner.
- Page 5 GREENHOUSE BENCH KITS ATTENTION: The following steps explain the assembly of the legs of the complete Bench System (#108292S). If you have not ordered the complete Bench System and have only the 108292 bench top, continue with Step 5. Gather four (4) one-way plates (104624). Measure and mark a line 6-1/2"...
- Page 6 GREENHOUSE BENCH KITS Gather four (4) 28" lengths of tube. Slide a 28" tube into each of the one-way plates and secure as shown below using Tek screws. 28" Tube 28" Tube 28" Tube 28" Tube screw Tube slides inside the fitting.
- Page 7 GREENHOUSE BENCH KITS Gather four (4) 29" lengths of aluminum strap (105932029). Measure 4-1/2" from each end of each leg. At these points, secure the aluminum straps to the legs as shown below using Tek screws. ATTENTION: Verify that the legs are straight before attaching the aluminum straps. After the aluminum straps are secured, carefully (and with assistance) flip the assembled frame onto its legs.
- Page 8 GREENHOUSE BENCH KITS ATTENTION: The 108292 Bench Top does not include legs as shown below. Legs, bracing, and fittings are included with the 108292S Bench System only. Installation of the PolyMax® panels is the same for both. Gather two (2) PolyMax® (#HA2215) panels and six (6) washers (#FAME50) for the bench top. Set the PolyMax®...
- Page 9 GREENHOUSE BENCH KITS Bench Frame Dimensions Outside-to-Outside 30" (108292S only) ATTENTION: The 108292S is shown above. The 108292 does not include the legs and related fittings and braces. Revision date: 09.03.08...
