Summary of Contents for Digitogo RP-SD102

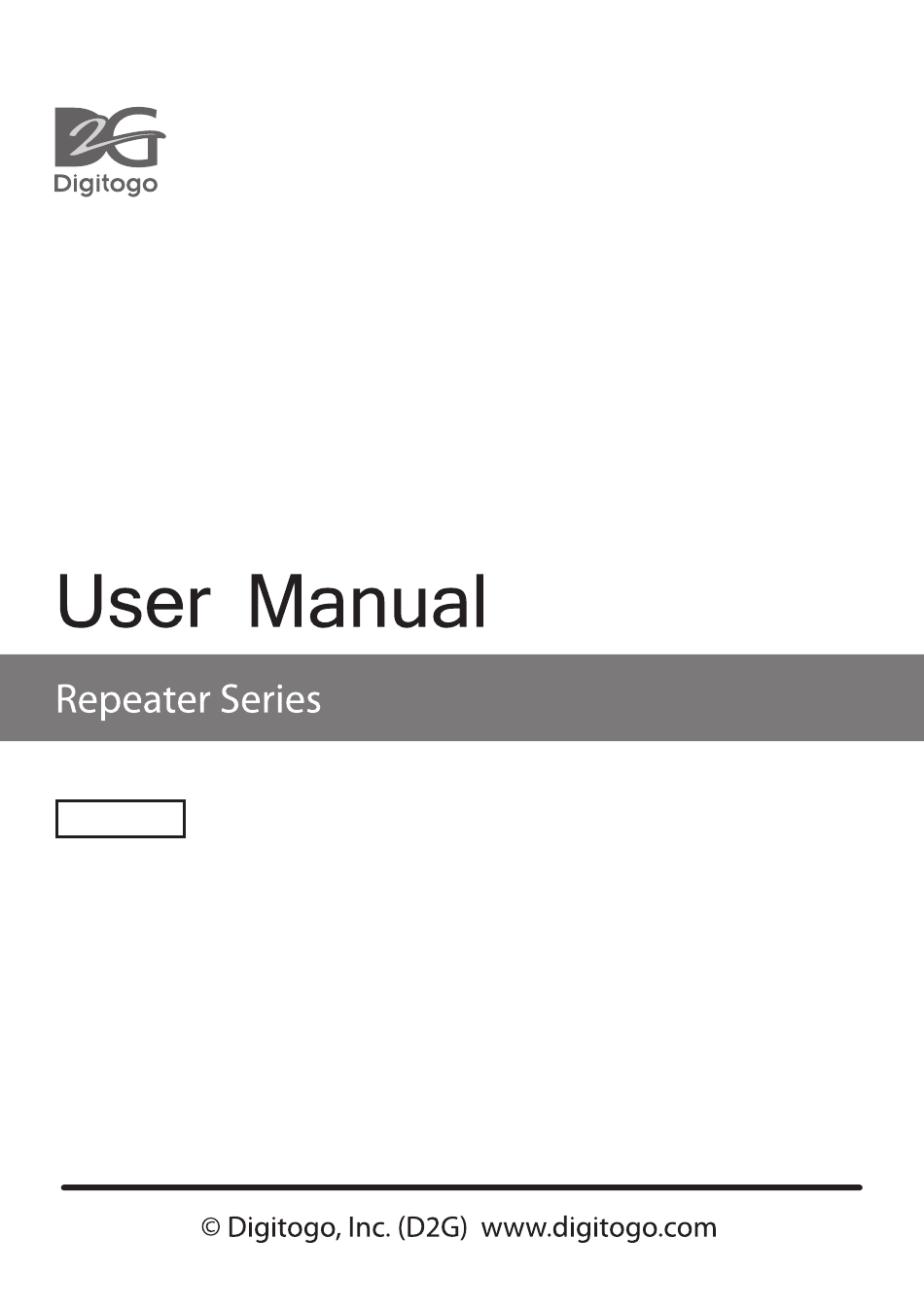

- Page 1 RP-SD102 3G-SDI Repeater + Splitter...
- Page 2 Crystal clear images are generated in NTSC or PAL format to support Standard and HD resolution up to 1080p Full HD at 60 Hz. RP-SD102 is also embedded with re-clock function which provides signal synchronization to avoid time delay or signal loss.

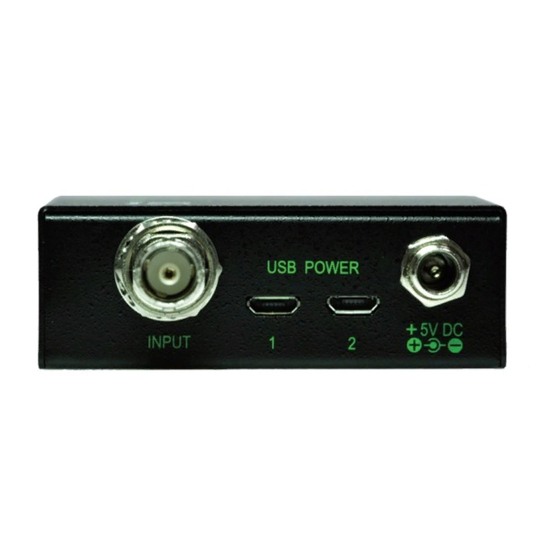

- Page 3 3. Please turn off power for all sources and display devices. RP-SD102: 1. Connect SDI cable (up to max.100m) between source and input of RP-SD102. 2. Connect SDI cable (up to max.100m) between displays (or another RP-SD102 for cascading) and the outputs of RP-SD102.
