Summary of Contents for MKS 900USB-1

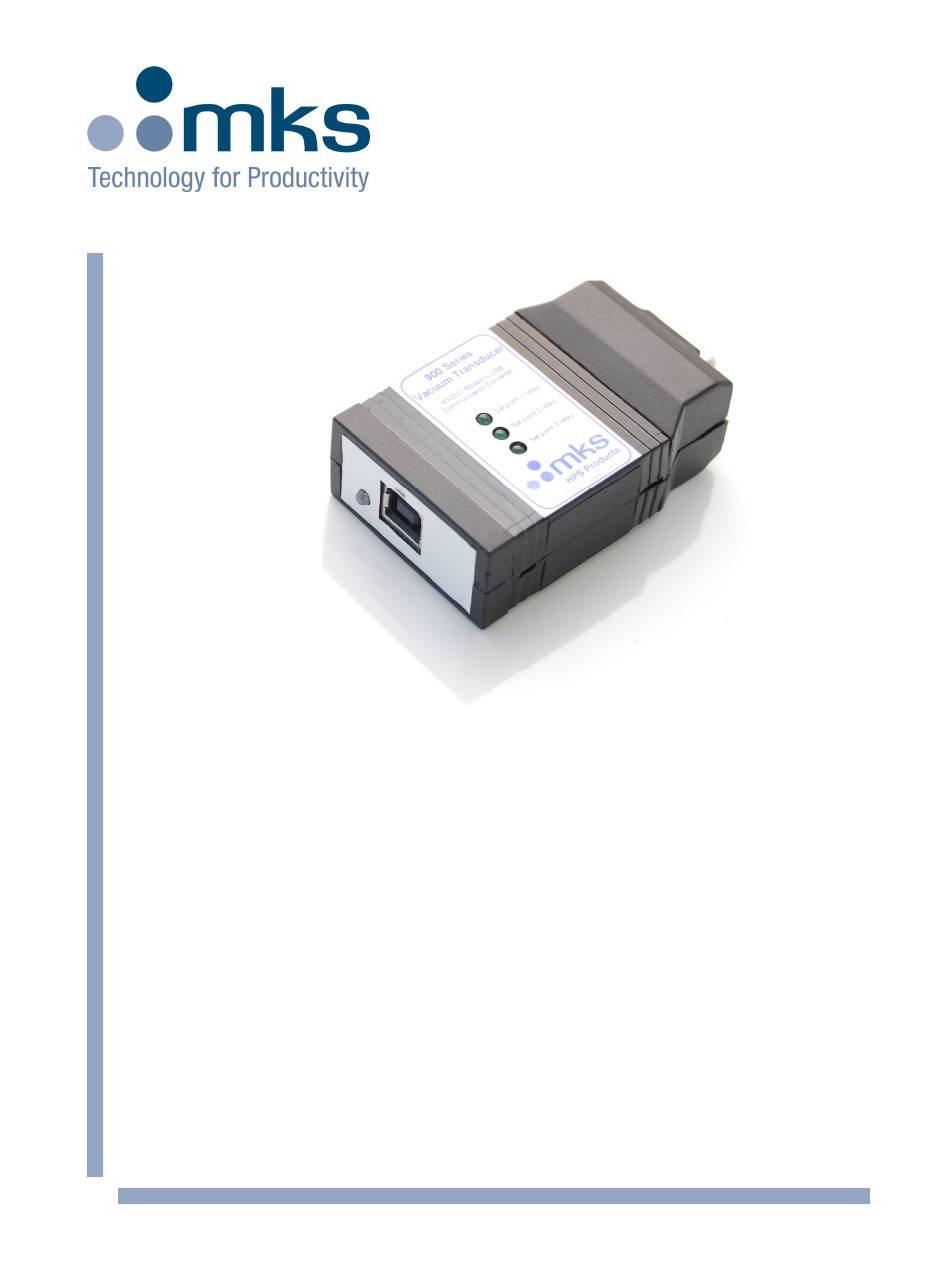

- Page 1 900 Series USB Converter RS232 / RS485 Operation and Installation Manual P/N: 100017079 900 Series USB Converter Operation and Installation Manual Revision: A, Nov. 19. 2008...
- Page 2 Extent of the Warranty MKS Instruments, Inc., HPS™ Products Inc. and MKS Denmark ApS. warrants the 900 Series USB Converter and its accessories to be free from defects in materials and workmanship for one (1) year from the date of shipment by HPS™ or authorized representative to the original purchaser (PURCHASER). Any product or parts of the product repaired or replaced by HPS™...
-
Page 3: Table Of Contents
Table of Contents Safety information.............................. 5 Symbols used: ............................... 5 Unpacking ................................6 Description................................. 7 USB Converter Overview........................... 7 Driver installation ............................... 8 Using the USB Converter ..........................9... - Page 4 MKS Denmark ApS. Ndr. Strandvej 119G DK-3150 Hellebaek Denmark Tel: +45 44 92 92 99 – Fax: +45 44 92 94 99 E-mail: mksdenmark@mksinst.com MKS Instruments, HPS Products 5330 Sterling Dr. CO-80301 Boulder Tel: 303 449 9861 - Fax: 303 449 2003...
-
Page 5: Safety Information
Service and Repair. Do not substitute parts or modify the USB Converter. Do not install substituted parts or perform any unauthorized modification to the product. Return to a MKS Calibration and Service Center for service and repair to ensure all of the safety features are maintained. -
Page 6: Unpacking
Documentation & Software CD 100017283 USB2.0 cable If any of the items are missing, please call MKS Customer Service at (800)345-1967 or (303)449-9861 or your local MKS sales office or distributor. Disposal (European Union only) The 900 Series USB Converter is manufactured according to the RoHS directive. -
Page 7: Description

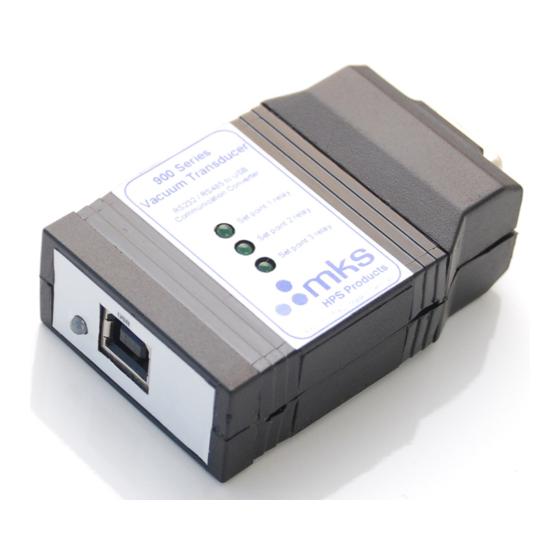

Description The 900 Series USB Converter is a communication port interface for 900 series vacuum transducers. It provides easy access to the digital interface and features full auto detection of baud rate and address of the attached transducer. Communication with the transducer is achieved through the 900 Series USB Converter communication port which emulates a standard serial communication port on the host system. -
Page 8: Driver Installation
Driver installation The 900 Series USB Converter connects to a PC using a standard USB port (powered). It is important to install the driver before connecting the device to the USB port. Please use the following guide in order to correctly install the 900 Series USB Converter on computers equipped with Windows 2000, XP or Vista (32 and 64bit). -
Page 9: Using The Usb Converter
Using the 900 Series USB Converter The USB Converter installs a Virtual Com Port (VCP) in the system and features full auto detection of baud rate and communication standard (RS232 / RS485). The communication program should be configured to the following parameters at all times: 115200 bps 1 stop bit No parity... - Page 10 CE Declaration of Conformity Manufacturer: MKS Denmark ApS Ndr. Strandvej 119G DK-3150 Hellebaek Denmark Model: 900USB-1 Type of Equipment: USB to 900 series transducers communication interface. Application of Council Directive(s): 2004/108/EEC Electromagnetic Compatibility 2006/95/EC Low-Voltage Directive Standard(s) to which conformity is declared: EN61326-1 2006 electrical equipment for measurement, control and laboratory use –...
- Page 11 Notes...
- Page 12 P/N: 100017079 900 Series USB Converter Operation and Installation Manual Revision: A, Nov. 19. 2008...
