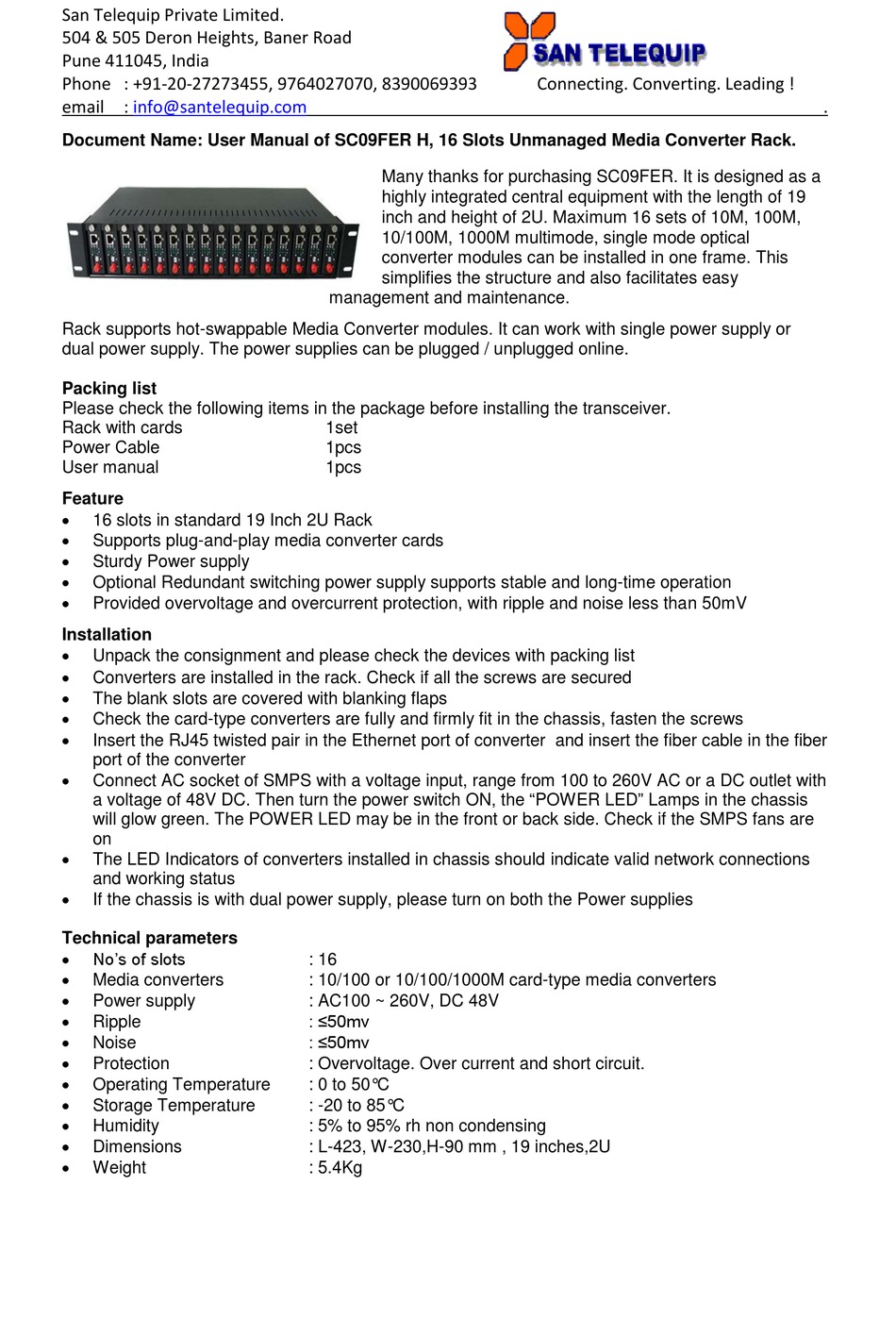

Document Name: User Manual of SC09FER H, 16 Slots Unmanaged Media Converter Rack.
Rack supports hot-swappable Media Converter modules. It can work with single power supply or
dual power supply. The power supplies can be plugged / unplugged online.

Packing list

Please check the following items in the package before installing the transceiver.
Rack with cards
Power Cable
User manual

Feature


16 slots in standard 19 Inch 2U Rack

Supports plug-and-play media converter cards

Sturdy Power supply

Optional Redundant switching power supply supports stable and long-time operation

Provided overvoltage and overcurrent protection, with ripple and noise less than 50mV

Installation


Unpack the consignment and please check the devices with packing list

Converters are installed in the rack. Check if all the screws are secured

The blank slots are covered with blanking flaps

Check the card-type converters are fully and firmly fit in the chassis, fasten the screws

Insert the RJ45 twisted pair in the Ethernet port of converter and insert the fiber cable in the fiber
port of the converter

Connect AC socket of SMPS with a voltage input, range from 100 to 260V AC or a DC outlet with
a voltage of 48V DC. Then turn the power switch ON, the "POWER LED" Lamps in the chassis
will glow green. The POWER LED may be in the front or back side. Check if the SMPS fans are
on

The LED Indicators of converters installed in chassis should indicate valid network connections
and working status

If the chassis is with dual power supply, please turn on both the Power supplies

Technical parameters


No's of slots

Media converters

Power supply

Ripple

Noise

Protection

Operating Temperature

Storage Temperature

Humidity

Dimensions

Weight

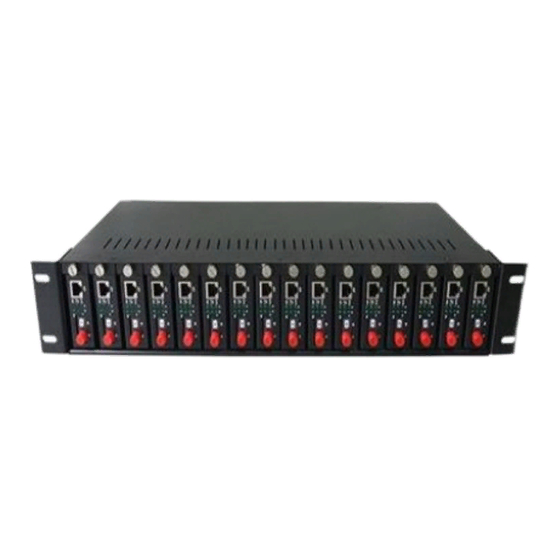

Many thanks for purchasing SC09FER. It is designed as a
highly integrated central equipment with the length of 19
inch and height of 2U. Maximum 16 sets of 10M, 100M,
10/100M, 1000M multimode, single mode optical
converter modules can be installed in one frame. This
simplifies the structure and also facilitates easy
management and maintenance.
1set
1pcs
1pcs
: 16
: 10/100 or 10/100/1000M card-type media converters
: AC100 ~ 260V, DC 48V
: ≤50mv
: ≤50mv
: Overvoltage. Over current and short circuit.
: 0 to 50°C
: -20 to 85°C
: 5% to 95% rh non condensing
: L-423, W-230,H-90 mm , 19 inches,2U
: 5.4Kg
