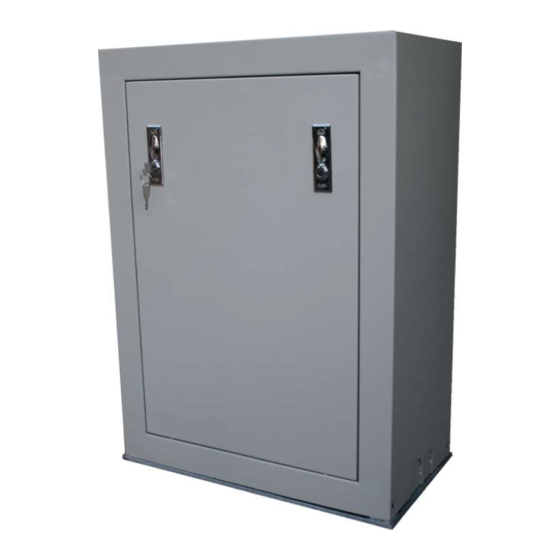

P750V5.0 industrial gate motor manual IMPORTANT SAFETY WARNING ATTENTION To prevent electrical shock, disconnect from power source before installing or service ATTENTION Electricity and power motors associated accessories could be fatal or at least cause seriously injury. All main voltage wiring must be installed by a licensed electrician. ATTENTION Additional safety device MUST be fitted such as Photo Electric Beam, Loop Detectors.
Page 3
P750V5.0 industrial gate motor manual GENERAL LAYOUT Fig -1 1) Manual Release bolts 2) Motor 3) Circuit breaker 4) Mounting Plate 5) Terminals 6) Control board 7) Inverter (VSD) 8) Fuse 9) EMC filter 10) Gearbox...
CONTROL INPUIT AND BUTTON 1. General Descriptions The P550-4 and P750 sliding gate motors was designed for heavy duty industry track gate or cantilever gate. Heavy duty three phase industry motor driven by VSD (variable speed drive), gate can run at different speeds.
P750V5.0 industrial gate motor manual CONTROL INPUIT AND BUTTON Open (OPN) input & OPN push button The OPN inputs are Push Button OPN and Terminal OPN input. Push OPN button or Activating (connect OPN terminal to the COM (+12V)) the OPN input will start the gate to open. When gate opened, if OPN is still activating, the gate will stay open.
Page 6
P750V5.0 industrial gate motor manual Motor Set Up Auto CLS (DIP6) ON=AUTO CLS OFF=NO AUTO CLS DIP6 ON selects Auto close mode. In this mode, the gate will auto close after standard auto closed time. If DIP6 OFF, no this function. 5.
Page 7
P750V5.0 industrial gate motor manual Controller Working Mode d) Turn power on, push CLS button, gate should close. If gate opens, turn power off, change motor direction by swapping any two of three phases output of inverter. e) Power on again. push CLS button, gate should close. If gate runs only short distance (about 2 seconds) and stop.
Page 8
P750V5.0 industrial gate motor manual e) Make sure F-code is connected. Power on again, push and hold CLS button for about 5 seconds until both OPENLED (green) and CLSLED (Red) is solid on, release CLS button, gate will start closing at low speed. g.
P750V5.0 industrial gate motor manual Timer Setting 5.4 Timers setting a) Auto close time set Set DISP1 On, push and hold on PED for the auto close time setting. Now the red and green LED flash fast alternatively, when reached the required time simply release PED button. Set DIP1 OFF.
Page 10
Acceleration time 3.5-4.0 sec 3.5-4.0 sec 00-15 Deceleration time 2.0 sec 2.0 sec 02-00 Motor rated current 3.5A -- P750 2.4A -- P550 02-01 Motor protect Current 6.8A -- P750 4.8A -- P550 05-02 Gate Open Low Speed 05-03 Gate Close High Speed...
Page 11
P750V5.0 industrial gate motor manual 7. Chain Drive System Chain drive system is basically standard motor set on the chain drive base. How to mounting chain drive motor a) Set the motor height. The chain base is adjustable. Chain slave/idle sprocket bottom line is about 10 to 20mm above the bottom line of gate bottom rail.
P750V5.0 industrial gate motor manual MANUAL RELEASE 9. Manual release A: What to do during a power failure: The gate can be manually pushed open and close if there is no power. To do this, you need to release the release bolt. (1) Open the front door and turn the switch (circuit breaker) OFF (even though there is no power) (2) Fit spanner (provided) onto the manual release bolt nicely.
P750V5.0 industrial gate motor manual TROUBLE SHOOTING GUIDE 10. Trouble Shooting Guide 10.1 Display information on main control board – see Fig-2 (1) Gate status LED Gate Status (Position) \ LEDs Status LED-Green (6) Status LED-Red (7) Gate in closed position Slow Flash Gate is opening Fast flash...
(b) Digiway control boards can be up to two years warranty. subject the application conditions. (c) In lieu of all other warranties expressed or implied. Digiway shall not be liable for any special indirect, incidental or consequent damages of any kind or nature.
