8255-I/O Manual
PCI - 8255-P2
48 Digitale I/O 8255 - 3 Timer/Counter 8254
Item-No.: 8255-P2
Taiwan Product Code: APCI8255/CE
DECISION-COMPUTER Jürgen Merz e.K.
Lengericher Str. 21
49536 Lienen
Telefon +49 (0)5483-77002
Telefax +49 (0)5483-77003
http://www.decision-computer.de

Advertisement

loading
Need help?

Need help?

Do you have a question about the 8255-P2 and is the answer not in the manual?

Questions and answers

Summary of Contents for Decision-Computer 8255-P2

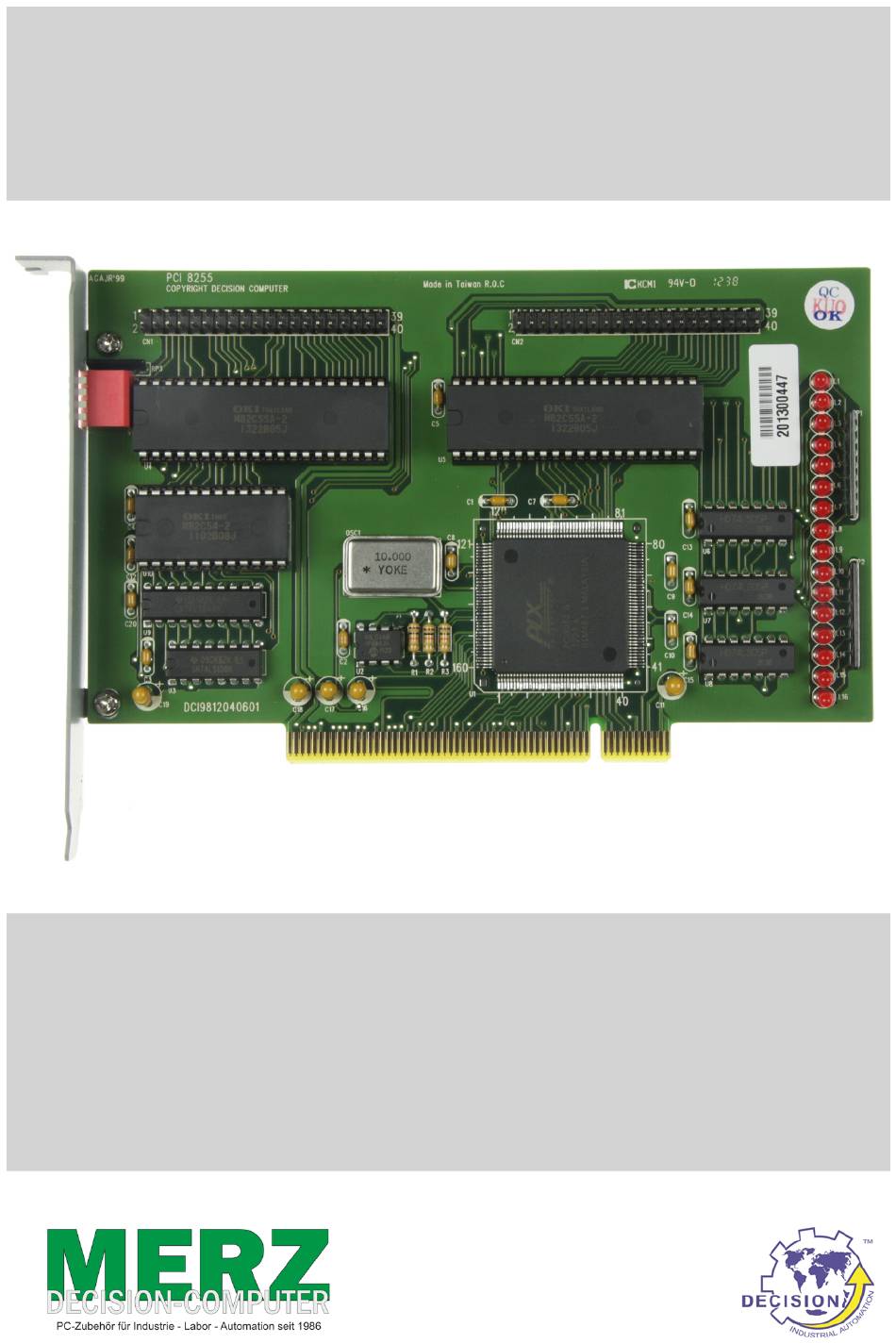

  • Page 1 8255-I/O Manual PCI - 8255-P2 48 Digitale I/O 8255 - 3 Timer/Counter 8254 Item-No.: 8255-P2 Taiwan Product Code: APCI8255/CE DECISION-COMPUTER Jürgen Merz e.K. Lengericher Str. 21 49536 Lienen Telefon +49 (0)5483-77002 Telefax +49 (0)5483-77003 http://www.decision-computer.de...

  • Page 2: Installation Instructions

    Data Bus: 32 bit PCI card with PnP features Features: Description: Software/Driver: PIO card with 48 digital I/0 channels and three 16-bit counters. English manual with setting plan, connection diagram, data Equipped with two socketed 8255 and one 8254. sheets and program examples. With Windows-98/NT/2000/ XP/WIN-7-8-10, Linux and DOS drivers or programming •...
  • Page 3 XP, Vista and WIN-7/8/10 Manuals etc. from Taiwan 2. Decision-Computer Merz - Service CD - white - 1 x per delivery This CD is a supplement to CD-1 and is intended to contain the latest information. The refore this CD is always freshly burned and can only be in the package once.
  • Page 4 Port 1 (CN1) The pin assignment of port 1/2 on page 8/9 in the original manual does not conform to the stan- dards. The marking of pin 1 on the assembly print must be exchanged with pin 2. Attention: If you connect directly to the post the original manual fits. If a flat cable is plugged in, this pin assignment is valid.
  • Page 5 PORT 2 (CN2) The pin assignment of port 1/2 on page 8/9 in the original manual does not conform to the stan- dards. The marking of pin 1 on the assembly print must be exchanged with pin 2. Attention: If you connect directly to the post the original manual fits. If a flat cable is plugged in, this pin assignment is valid.
  • Page 6 PCI-8255 + DOS The PCI 8255 is compatible with the ISA version 8255-N. DOS software can continue to be used without modification. Since no fixed address can be set on the PCI card by PnP, the setting must be made in the AUTOEXEC with the 8255SET software. Program and instructions can be found on the CD.
  • Page 7 Steuerwort für Betriebsart des 8255 Gruppe B Port C0-C3 Operation 1 Eingang 0 zurücksetzen 0 Ausgang 1 setzen Port B 1 Eingang Bitauswahl 0 Ausgang 000 Bit 0 Modus 001 Bit 1 010 Bit 2 0 Modus 0 011 Bit 3 1 Modus 1 100 Bit 4 101 Bit 5...
  • Page 8 A.1 Copyright Copyright DECISION COMPUTER INTERNATIONAL CO., LTD. All rights reserved. No part of SmartLab software and manual may be produced, transmitted, transcribed, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual, or otherwise, without the prior written permission of DECISION COMPUTER INTERNATIONAL CO., LTD.
