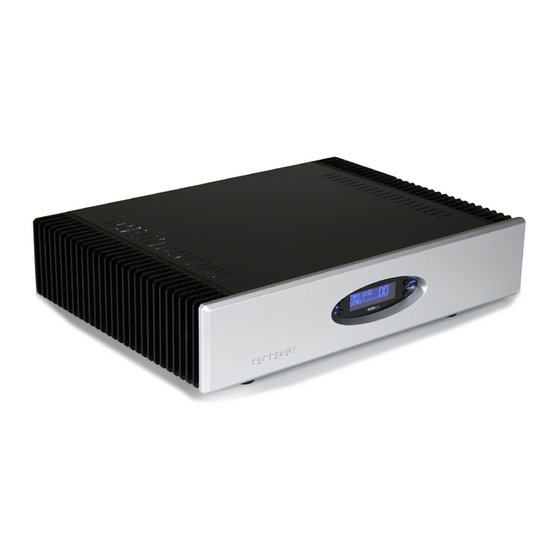

Perreaux R200i Manual

Hide thumbs Also See for R200i:
Table of Contents

Advertisement

Quick Links

Download this manual
Perreaux Industries Limited makes no warranty for the use of its products, other than those
expressly contained in the warranty detailed herein. The Company assumes no responsibility
for any errors which may appear in this document, reserves the right to change products or
specifications detailed herein at any time without notice, and does not make any commitment
to update the information contained herein. No licenses to patents or other intellectual
property of Perreaux are granted by the Company in connection with the sale of Perreaux
products, expressly or by implication.
Perreaux is a registered trademark of Perreaux Industries Ltd.
Terms and product names in this document may be trademarks of others.
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R200i and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Perreaux R200i

Summary of Contents for Perreaux R200i

  • Page 1 Perreaux Industries Limited makes no warranty for the use of its products, other than those expressly contained in the warranty detailed herein. The Company assumes no responsibility for any errors which may appear in this document, reserves the right to change products or specifications detailed herein at any time without notice, and does not make any commitment to update the information contained herein.

  • Page 2: The Decision Making Process

    Select a few recordings of similar performances for comparison. Your Perreaux equipment will (and the rest of your system should) provide a precise duplication in your listening area of the total musical performance, including the ambience of the venue in which the recording was made.

  • Page 3: Introducing The Perreaux Radiance Series

    The Perreaux “Radiance” series takes you even closer to the elusive goal of “The Perfect Re-creation of a Musical Event”. From all of us at Perreaux Industries Limited, thank you for choosing the Perreaux Radiance Series R200i integrated amplifier. Martin van Rooyen...

  • Page 4: Important Safety Instructions

    Avoid restricting or blocking ventilation access for the R200i. DO NOT bypass any fuse. DO NOT attempt to repair the R200i. In the event of a problem, please contact your Perreaux dealer. Avoid exposing the R200i to extremely high or low temperatures.

  • Page 5: Table Of Contents

    The Decision Making Process................3 Read Magazines .........................3 Choose Your Hi-Fi Dealer Carefully ................3 ii ii ii ii Introducing the Perreaux Radiance Series ............ 4 Key Features........................4 iii iii iii iii Important Safety Instructions ................5 iv iv iv iv Table of Contents....................
  • Page 6 8 8 8 8 Using the Remote Controller .................34 Installation of Batteries....................34 Operating the Remote Controller ................35 9 9 9 9 Interacting with Your R200i................37 Default Screen ......................... 37 Menu Screen ........................37 Menu Overview....................... 38 Input Select........................39 Preamp Setup........................
  • Page 7 Warranty Information and Obtaining Service..........66 1 Year Limited Warranty ....................66 5 Year Extended Warranty................... 66 Warranty Transfer......................66 Information on the Perreaux R200i Warranty............66 Extended Warranty Registration Form............68 Specifications ....................69 Specifications in Brief..................... 69 Preamplifier Specifications Explained................ 71 Power Amplifier Specifications Explained..............

  • Page 8: Features At A Glance

    R200i is extremely compact. Highly Powered Capable of continuously delivering 200W into 8Ω (360W into 4Ω), the R200i is highly powered. Utilising 6 very high current Toshiba MOSFETs per channel, the R200i handles even the most difficult loads with ease.
  • Page 9 Highest-Grade Double-Sided Printed Circuit Boards All printed circuit boards utilised within the R200i are constructed from the highest-grade fiberglass base stock. Tracks are etched from 2oz copper. This provides added stability under variable thermal or electrical loads and...
  • Page 10 Two-Volume Level Instruction Set The R200i can be programmed with two volume level instruction sets. The first set applies a default to the switch on volume level. The second applies a limit to the maximum setting of the volume control.

  • Page 11: Optional Modules

    Adjustable Display Lighting The display of the R200i can be adjusted to suit ambient room conditions, 4 adjustable settings are available. Alternately the display lighting can be switched off.

  • Page 12: Special Design Features

    A series of slots run down each side of the cover to facilitate air ventilation. By placing the heat sinks on the outside of the product, the R200i, they are able to breathe freely and operate at highest efficiency.

  • Page 13: The User Interface

    Perreaux has historically embraced the minimalist ethic from an audio design perspective only. The concept of “less equating to more” has been at the heart of all Perreaux audio designs for more than a quarter of a century. Minimalist Electronics We wish to maximise the quality of your listening pleasure by keeping the componentry and signal path as uncluttered, short and clean possible.

  • Page 14: The Power Supplies

    The Power The Perreaux R200i features four separate power supplies, whose task it is Supplies to provide clean, stable DC power to the various circuit elements within the amplifier.

  • Page 15: The Preamplifier Section

    The sonic benefits of a power supply as high a quality as the R200i has are significant, resulting in effortless reproduction of dynamic contrast as well as stable and detailed stereo imaging.

  • Page 16: The Volume Control

    The Role of The onboard microprocessor handles all interfacing, monitoring, and the Micro- switching functions. Processor The design also provides for maximum separation between digital and analogue circuitry. User configured settings are stored in non-volatile EEPROM. The R200i is fully software upgradeable.

  • Page 17: Protection Functions

    3 3 3 3 Protection Functions The R200i has been carefully designed for continuous delivery of highest quality audio at full rated output. Protection from internal, external component failure and user error is an integral part of our design philosophy. This “system wide approach” provides some of the highest levels of security that an integrated amplifier can add to any system.

  • Page 18: Maximum Volume Protection

    “MENU/ENTR” button. Internal AC The R200i monitors it’s dual AC toroidal transformer voltages, that in turn Supply supply the rectification stages. In the event that either toroidal transformer...

  • Page 19: Over Current Protection

    Volume Cycle Time 3 Seconds Time Over The R200i features an electronic over current protection function. In the Current event that demand exceeds the amplifier’s full rated continuous output Protection current, the unit will protect itself and the connected speaker load from possible damage.

  • Page 20: Dc Offset Protection

    Chapter 9 ”Interacting with Your R200i”. Note: The user can connect any load from 1Ω to infinity. In the event that the connected load and volume demand is excessive, the R200i will protect itself. DC Offset DC servos are used to correct for potentially damaging DC offset from Protection source components.

  • Page 21: Unpacking And Placement

    4 4 4 4 Unpacking and Placement The R200i is packaged for maximum protection. Please carefully read the instructions below before proceeding to unpack the unit. Be extremely careful. Unpacking Inspect both ends of the cardboard box and open at the end without Procedure the central staple by slitting the reinforced tape at either side.

  • Page 22: Box Contents

    Please do not mount the R200i directly onto carpeted surfaces. As a “rule of thumb”, allow 100mm (3-4 inches) around all sides of the product and mount the R200i on a flat surface, ensuring that the unit has adequate access to free flowing air.

  • Page 23: Rear Panel Functions

    2 Speaker B Binding Posts Caution! Please refer to Chapter 9 “Interacting with Your R200i” on Speaker B setup before use. Speaker B binding posts can be used for two purposes: They can be used to control an auxiliary set of speakers (typically controlling a pair in a separate room) Alternately they can be used for speaker bi-wiring applications.
  • Page 24 Master Trigger Input The master trigger input is used to take the R200i in and out of standby. The master trigger input is designed to accept a 3.5mm diameter male plug. The voltage rating is +5V to +12V DC level ON/0V DC level OFF.
  • Page 25 Slave Trigger Outputs Two parallel slave trigger outputs are provided to switch on or off any connected peripherals to the R200i. In the event that it is not possible to cascade connect peripherals, two slave outputs are provided. The slave trigger outputs are designed to accept a 3.5mm diameter male DIN plug.
  • Page 26 For more information, please refer to Chapter 9 “Interacting with Your R200i” and consult the “System Setup” section. Using the power amplifier (Direct In) component of the R200i in conjunction with the “Bypass Preamp” software function, allows integration into a home theatre system. The “Bypass Preamp” option must be software selected.
  • Page 27 The left channel connection is uppermost. Connect Output 1 to the left and right channel of your auxiliary device. Output 1 is unaffected by the volume control of the R200i. Output 1 tracks the selected input, reflecting to the auxiliary device the same input signal to which you have selected (Input 1 or 2 or 3 or 4 or Balanced).
  • Page 28 Pin 3: Signal – (inverting) Shield ground: Chassis ground The display label is user selectable. For more information on this, please refer to Chapter 9 “Interacting with Your R200i” and consult the “System Setup” section. Note: Please refer to the operating manuals of your balanced output line level source to verify that the pin assignments of the output connectors correspond to the R200i balanced inputs.

  • Page 29: Front Panel Interaction

    6 6 6 6 Front Panel Interaction Buttons 1 STBY Depressing this button takes the amplifier in and out of standby mode. By depressing either the button in the default screen, the volume will increase or decrease. Used for navigation within the menu structure. Used for parameter adjustment.

  • Page 30: Vacuum Fluorescent Display

    Vacuum Fluorescent Display When the display is viewed in the default mode, there are three areas of interest. 1 Input The input currently selected is displayed. 2 Bar Graph Level The volume level is displayed as a series of blocks. The movement is from left to right and corresponds with the minimum to maximum volume.

  • Page 31: Instant Install

    Not a carpeted floor and do not cover the amplifier! 2 Turn off associated components 3 Connect a source to one of the inputs at the rear of the R200i For example, connect the outputs of your CD player into the left and right inputs of Input 1 (Disc).
  • Page 32 7 Increasing the volume After the R200i has initialised, depress and hold down the button on the front display until the volume reaches a comfortable listening level. Note: If you are not hearing anything from your speakers at volume level 20, do not increase the volume further.

  • Page 33: Using The Remote Controller

    8 8 8 8 Using the Remote Controller The 36 button remote controller has been designed to provide complete interaction with the R200i and other nominated Perreaux peripherals. Because of the compactness of design, all remote functions are accessible with your thumb.

  • Page 34: Operating The Remote Controller

    R200i. Depress to mute the volume control. If the volume level is decreased while the R200i is muted, the new lower level will be restored when mute is cancelled. If the volume level is increased while the R200i is muted, mute is instantly cancelled and the volume increased.
  • Page 35 Other Buttons Note: These buttons may have multiple uses Depress this button to move the R200i in and out of standby mode. Toggles Speaker B in and out of circuit. Displays amplifier left and right channel temperature in °C. Displays current balance setting.

  • Page 36: Interacting With Your R200I

    9 9 9 9 Interacting with Your R200i The Perreaux R200i gives you complete access to all menu parameters via the interactive front panel display. Default The five push buttons, accessible within the elliptical display area, allow Screen “one-touch” access to the following functions:...

  • Page 37: Menu Overview

    To back up the menu structure towards the default screen, depress the “MUTE/EXIT” button. User settings are stored in non-volatile EEPROM. If no user activity is recorded within 10 seconds, the program will automatically revert to the default screen. Menu Overview DEFAULT SCREEN INPUT SELECT...

  • Page 38: Input Select

    Input Select The factory default input is Compact Disc (CMPT DISC). If you are viewing the screen as pictured above, depressing the button will select the Balanced Input. Depressing the button will progressively select Tuner, Tape and VCR inputs. These are the factory default input labels and can be renamed.

  • Page 39: Preamp Setup

    This can prove useful during special events or in the event that the audio system is being enjoyed by those who are unfamiliar with the capability of the R200i in relation to the connected speaker load.

  • Page 40: Initial Volume

    Bypass Preamp This option allows you to bypass the internal preamplifier and operate the R200i as a power amplifier only. This can easily be achieved via the internal software. Under bypassed conditions, Unbalanced Input 4 (Direct In) will provide line level input directly to the R200i power amplifier.

  • Page 41: Display Setup

    R200i into direct input mode. When the amplifier has it’s preamplifier bypassed, the words DIRECT INPUT will continuously be displayed. Caution! The clipping limiting protection functionality of the R200i is effective ONLY ONLY ONLY ONLY when it is used as an integrated amplifier.

  • Page 42: Display Timeout

    When the display timeout feature is active, the R200i display will automatically black-out after 20 seconds of inactivity in the default screen. To back up the menu structure towards the default screen, depress the “MUTE/EXIT“...

  • Page 43: Energy Saver

    Alternately, they can be used for speaker bi-wiring applications. (If Speaker B is selected). As a guide, when connecting speakers in parallel, use this equation to work out the impedance the amplifier sees: total where: Z = impedance amplifier sees total = impedance of speaker A = impedance of speaker B...

  • Page 44: Input Labels

    If there has been no user activity within the time specified, and the energy saver feature is active, the R200i will automatically move into standby mode after the set time has elapsed.

  • Page 45: Factory Reset

    Cmpt Disc 2 Video 1 Video 2 Aux 1 Aux 2 Computer 1 Computer 2 Tape 1 Deck 1 Satellite Cable To assign one of the input labels above to an input, select the input required by pressing the “MUTE/ENTR” button until the desired input is selected.

  • Page 46: Factory Reset Settings

    “TUNER” Unbalanced Input 3 “TAPE” Unbalanced Input 4 “VCR” When the R200i is being reset, the display will state the words “Resetting Unit”. Diagnostics Unit Info The unit info screen allows the user to view the model and software version being employed internally.

  • Page 47: Heat Sink Temp

    Heat Sink Temp Selecting this option will display the actual heat sink temperature in °C. The heat sinks will operate to a maximum of 85°C, at which time the unit will protect itself. For more information, please refer to Chapter 3 “Protection Functions” and consult the “Over Temperature Protection”...

  • Page 48: Upgrading Your R200I

    The two modules cannot be fitted or operated concurrently. Phono Stage When this high quality option has been fitted to the R200i, the user will be able to enjoy direct access to their turntable via the amplifier. For more information on this option, please contact your Perreaux dealer.

  • Page 49: Maximising System Potential

    It can also be done using dedicated power amplifiers. Bi-amping can achieve greater control, dynamics and resolution than if you try to run everything from a single stereo amplifier. Left Speaker R200i Left PA From Pre Amp Source...

  • Page 50: Balanced Interconnects

    Balanced The use of the high quality Perreaux balanced signal inputs and outputs can Interconnects have the effect of cleaning up hums, buzzes, radio frequency interference (RFI) and general extraneous rubbish that can enter an audio system. A balanced signal input system operates on the principle of differential amplification.

  • Page 51: Matching Amplifier And Speaker Ratings

    200 Watts is twice as loud as 20 Watts not ten times as loud. Due to the protection functionality designed into the R200i, this tradition no longer needs to be adhered to. The R200i is suitable to use with speakers that have power handling greater than it’s continuous rated output and in fact, would greatly benefit from speakers that can handle the output peaks the R200i can deliver.

  • Page 52: The Power Mosfet

    The Power MOSFET Today with the vast number of technical achievements occurring around the world, many discoveries are overshadowed or obscured by some that may appear more important to the general media. One such discovery of importance, to the audiophile at least, is that of the power MOSFET device.

  • Page 53: Audio Applications

    operations. This means that complementary power MOSFETs – P and N channel – can be used in an audio output stage providing greater linearity of operation than can be achieved with valves. In addition, further advantages over the valve include their much smaller size, no filaments and greater reliability with reduced vulnerability to physical damage.

  • Page 54: High Frequency Response

    High Probably, from the sonic quality point of view, the most important Frequency improvement is the power MOSFETs vastly superior high frequency Response response. A large proportion of the power transistors used in modern hi-fi amplifiers start to show a decline in efficiency from 10kHz upwards. The efficiency of the power MOSFET does not start to decline until about 2MHz and is only down 3dB at 30MHz.

  • Page 55: Frequently Asked Questions

    How often do you introduce new products? As satisfied Perreaux owners are well aware, we are never in any great hurry to bring new products to the marketplace. Refinement of musical performance is not a process to be rushed or neatly scheduled to coincide with important events.
  • Page 56 Can I change the voltage of my Perreaux if I move to another country? The end user is unable to do this, however if the need arises, the Perreaux distributor could undertake this work. You should expect to pay for this service.
  • Page 57 Which speakers do you recommend for your amplifiers? Because Perreaux amplification is designed to be utterly neutral with no sonic character of its own, any high quality equally neutral speaker that is agreeable to your room, musical tastes and general sonic preferences will be a good match.

  • Page 58: Care And Maintenance

    Care and Maintenance The R200i has been designed to provide many years of trouble free enjoyment. It’s important to keep the exterior of the unit clean and to periodically ensure that the air-cooling grills remain clear from obstruction. Note: Please place the unit in standby and remove the cord set from the rear of the amplifier before attempting to clean your R200i in the manner described below.

  • Page 59: Faultfinding Your R200I

    Alternatively, careful designs must be employed to negate these effects on low-level signal equipment (such as the R200i onboard phono module option). Another good practice to adopt is to keep all signal leads away from power leads.

  • Page 60: Identifying And Isolating Problems

    The entire hi-fi system must be connected to the same mains/line power outlet. This will ensure that each piece of the system shares the same earth or ground. This rule applies to all installations of all brands of equipment. A preamplifier or power amplifier may be operated from an extension cord plugged into the same mains/line outlet.
  • Page 61 Initial system connections SOURCE R200i Step 1 – Loudspeakers SOURCE R200i Change the loudspeaker leads from one loudspeaker to the other. If the fault remains in loudspeaker ‘A’, then loudspeaker ‘A’ is at fault, go no further. If the fault now appears in loudspeaker ‘B’ then the problem lies further up the line.

  • Page 62: Power Amplifier Specifications Explained

    Most of this has been done, for instance, you now know what input/s and what channel is affected. This information will assist your Perreaux dealer or service person when or if any service is required.

  • Page 63: Faultfinding Flowchart

    Fault in Input source loudspeaker at fault Restore source cables to original connections Conduct a factory reset* Fault in Amplifier settings loudspeaker incorrect Amplifier at fault *Please refer to Chapter 9 “Customising Your R200i” and consult the “System Setup” section.

  • Page 64: Description Of Amplifier Faults

    Description of Amplifier Faults This diagram details all the faults that can be displayed on the R200i. The faults are channel specific. The top line shows: Left channel: DC offset fault Over current fault Internal AC supply fault Negative DC rail fuse fault...

  • Page 65: Warranty Information And Obtaining Service

    Warranty Information and Obtaining Service 1 Year The Perreaux R200i is warranted to be free from defects in material and Limited workmanship under normal use to the original purchaser for a period of 1- Warranty year (365) days from the date of purchase from an authorised dealer or distributor.
  • Page 66 Note: In the event that you are experiencing difficulty with the R200i, please as a first step, follow the faultfinding procedures in Chapter 15 “Faultfinding Your R200i”. If after following this procedure, you require service, please contact your Perreaux dealer.

  • Page 67: Extended Warranty Registration Form

    R R R R 2 2 2 2 0 0 0 0 0 0 0 0 i i i i Serial Number: Please complete this form and either fax, mail or e-mail it to Perreaux Industries Ltd. Fax: +64 9 815 5981...

  • Page 68: Specifications

    Specifications The R200i specifications are detailed in brief and then subsequently in more detail. In the detailed version, we attempt to explain the significance of each specification. Measurements of the R200i reveal excellent results by any standards. Tested at 120V, 220V, 230V and 240V after a 10 minute warm-up period.
  • Page 69 Maximum....................800W (at 4Ω rated output) Mains Input Voltage 100V, 110V, 120V, 220V, 230V or 240V AC at 50Hz or 60Hz (Set within the R200i at time of manufacture) Overall Dimensions Width ..................430mm (16.9”) Height..................105mm (4.1”) Depth..................340mm (13.4”) Fuse Ratings Mains input fuses ........

  • Page 70: Preamplifier Specifications Explained

    Preamplifier Preamplifier attenuation............... –95dB Specifications Preamplifier gain..................+30dB Explained Gain resolution................2.0dB steps (linear throughout the range) Frequency response..........5Hz – 100KHz ±0.25dB Comments This is the “standard” specification with which everyone is familiar. Actually “frequency response” is a misnomer. Technically, the specification should be called “amplitude response versus frequency”...
  • Page 71 S/N Ratio.............. Unbalanced inputs > 95dB ................. Balanced inputs > 95dB Comments The R200i preamplifier S/N ratio, at all frequencies between 20Hz and 20kHz, is very low. Channel separation/Crosstalk ....Unbalanced inputs –70dB @ 1KHz ..............Balanced inputs –90dB @ 1KHz...
  • Page 72 1db is the least that can be perceived by ear. To better that by a wide margin, the R200i is specified two times higher, thus far exceeding the audible range of the human ear.
  • Page 73 With more than adequate continuous current per channel and high volts peak to peak, the Perreaux R200i can easily meet any challenge music can present to it – whether instantaneous or continuous. To be specific it can deliver high power into low-impedance loads and provide great dynamic headroom.
  • Page 74 Input sensitivity.................1.45V Comments Indicates the amount of input power required to drive the unit to its full output power. Input impedance..................33KΩ Comments This shows that the power amplifier has high input impedance and will not load down the output of most high quality preamplifiers. Output impedance ................

  • Page 75: Physical Dimensions

    Physical Dimensions...

  • Page 76: Contact Details

    Contact Details For more information please contact your Perreaux dealer, or contact: Perreaux Industries Ltd PO Box 47 413 Ponsonby Auckland New Zealand Ph: +64 9 815-5452 Fax: +64 9 815-5981 Email: info@perreaux.com Internet: www.perreaux.com...
