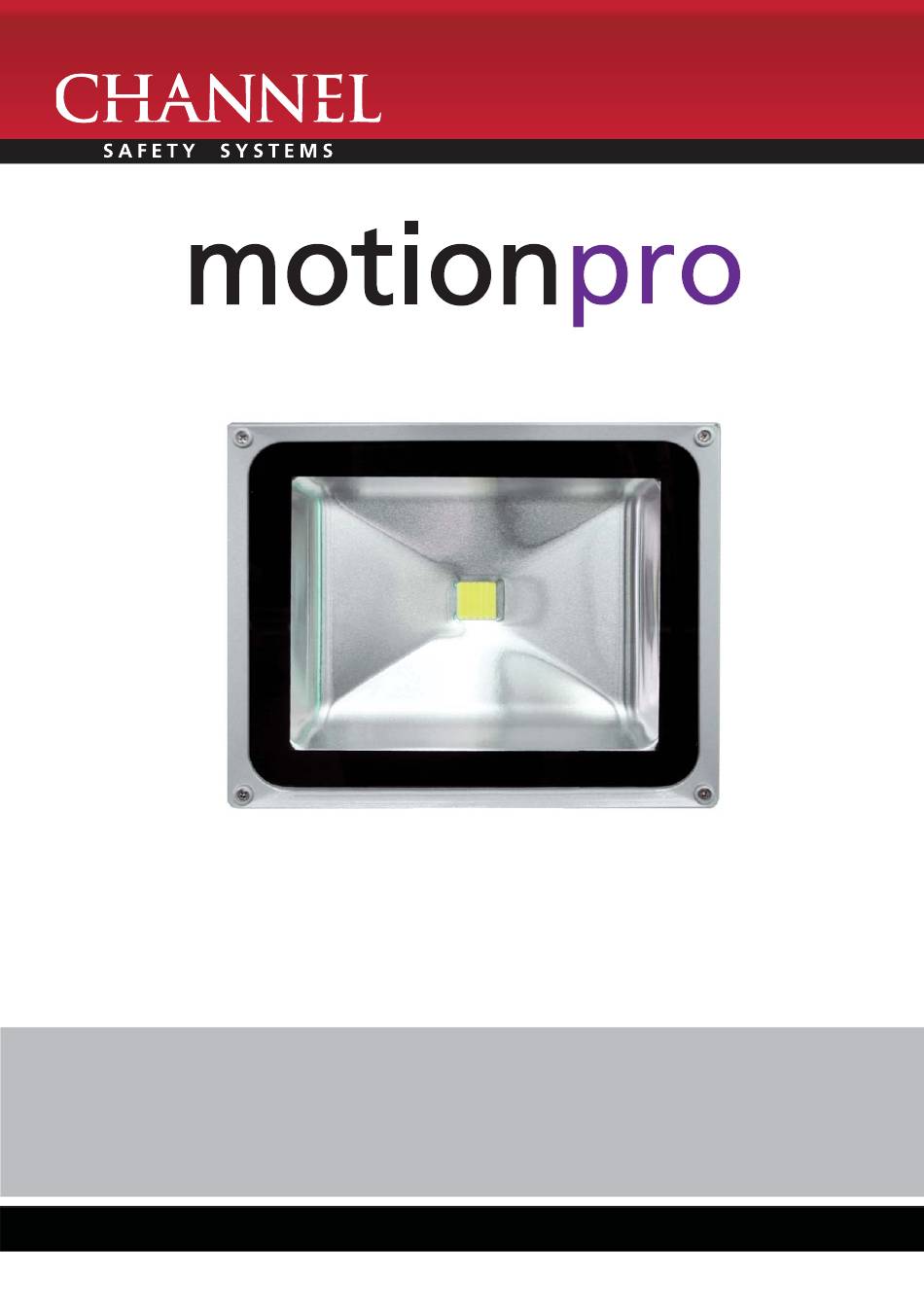

CHANNEL SAFETY SYSTEMS
CHANNEL SAFETY SYSTEMS
Petersfi eld Business Park
Bedford Road
Petersfi eld
Hampshire
GU32 3QA
INSTRUCTION MANUAL - Issue 1 - 02/2014
Security lighting range
from Channel Safety Systems
INSTRUCTION MANUAL
t: 0845 884 7000 | w: www.channelsafety.co.uk
™
t: 0845 884 7000
f: 0845 884 6000
e: sales@channelsafety.co.uk
w: www.channelsafety.co.uk
| 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MotionPro Security Lighting Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Channel Safety Systems MotionPro Security Lighting Series

  • Page 1 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk ™ Security lighting range from Channel Safety Systems CHANNEL SAFETY SYSTEMS t: 0845 884 7000 Petersfi eld Business Park f: 0845 884 6000 Bedford Road Petersfi eld Hampshire e: sales@channelsafety.co.uk GU32 3QA w: www.channelsafety.co.uk...

  • Page 2: Selecting The Location

    CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk INSTRUCTIONS Each MotionPro Floodlight utilises passive infrared technology to detect heat radiation of moving objects such as people & vehicles. On activation the lamp will illuminate for a the chosen time period, an integral adjustable daylight sensor ensures night-only operation.

  • Page 3: Installation

    CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk INSTALLATION Remove the wiring box cover. The unit is suitable for connection to a 230 V ac 50Hz supply. A 3-core round fl exible cable of 1.0²mm/1.5²mm gauge is used. A means to isolate the unit should be installed to switch the power to the unit ON &...

  • Page 4: Test Mode

    CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk TESTING Walk Test Procedure The sensor will rotate from left to right, and tilt forward or backward. Adjust the sensor to point in the required direction. The unit can be set up in daylight or at night.

  • Page 5: Lamp Replacement

    At the end of the working life of the light or if you wish to upgrade or replace the unit it is essential that the correct disposal method is used. Please check with your supplier or local authority for the options available. Channel Safety Systems Limited are registered under the ‘WEEE Directive’ (Waste from Electrical and Electronic Equipment), our registration number is WEE/ JK0060TU Assistance If you require assistance or the light becomes defective, please return it to where you purchased it.

  • Page 6: Passive Infrared Motion Detector

    CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk PASSIVE INFRARED MOTION DETECTOR The MP/PIR/BK PIR detector is used to automatically control lighting equipment. It detects heat movement within a given ‘fi eld of view’ . It has a wide fi eld of view which can be adjusted in both the vertical and the horizontal planes. The detector incorporates an built in adjustable daylight sensor and adjustable timer.

  • Page 7: Operation

    CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk OPERATION The MP/PIR/BK PIR detector can be adjusted to operate at variable light levels, from full daylight to less than 3 LUX. The MP/PIR/BK PIR detector has a variable timer which is adjustable from10 second to 7 minutes. Each time the detector is triggered the timer resets and starts the time period again.
  • Page 8 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk PASSIVE INFRARED MOTION DETECTOR INSTALLATION Installation should be carried out by a qualifi ed electrician. • Ensure the power is off and correctly isolated. • Remove the screw from the bottom of the unit (a) •...

  • Page 9: Adjustment And Testing

    CHANNEL SAFETY SYSTEMS t: 0845 884 7000 | w: www.channelsafety.co.uk ADJUSTMENT AND TESTING • Turn the timer switch clockwise to the minimum setting (about 10 seconds). • Turn the lux level switch clockwise to the maximum light level (sun symbol).
  • Page 10 CHANNEL SAFETY SYSTEMS t: 0845 884 7000 Petersfi eld Business Park f: 0845 884 6000 Bedford Road Petersfi eld Hampshire e: sales@channelsafety.co.uk GU32 3QA w: www.channelsafety.co.uk INSTRUCTION MANUAL...
