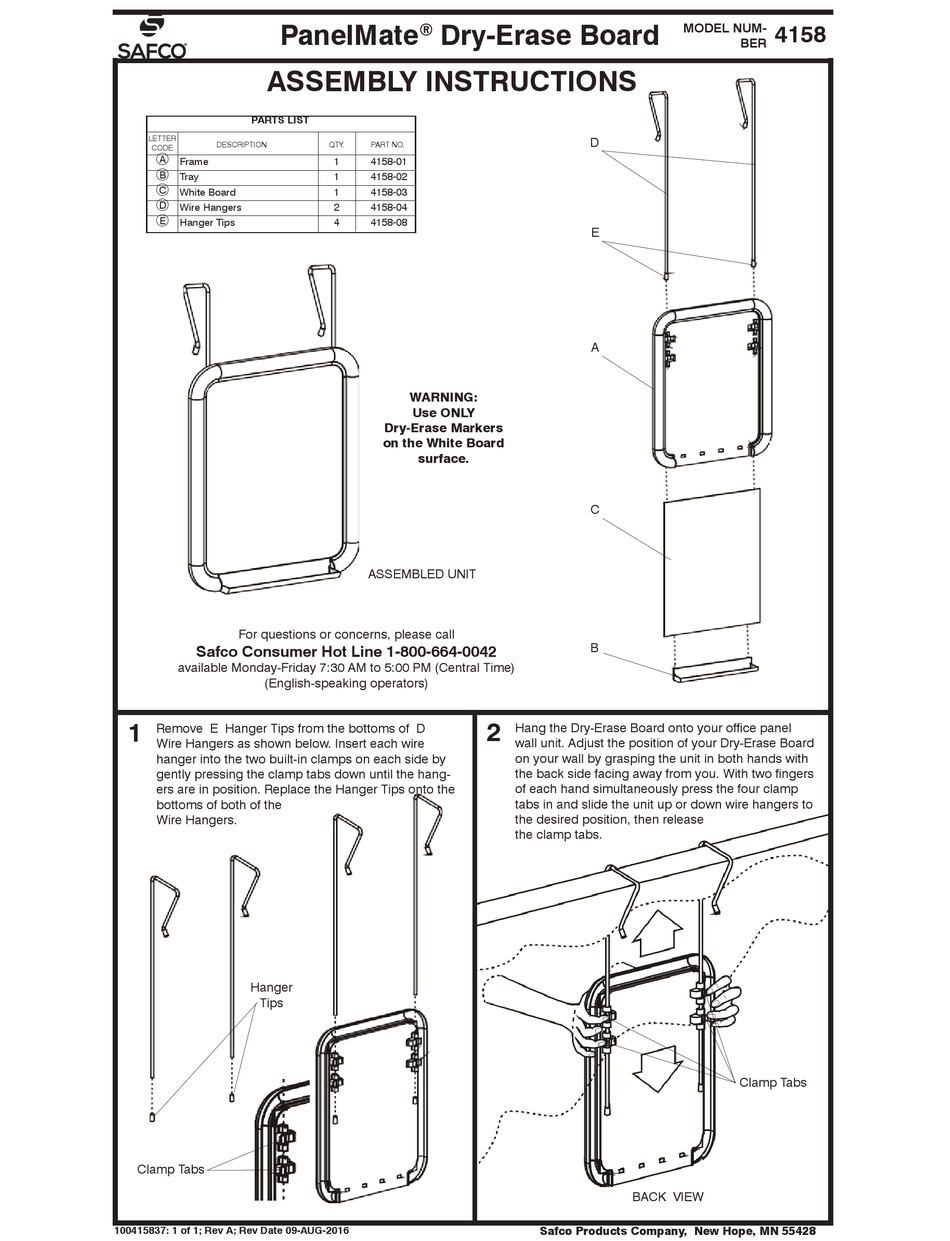

Safco PanelMate 4158 Assembly Instructions

PanelMate
ASSEMBLY INSTRUCTIONS
PARTS LIST
LETTER
DESCRIPTION
CODE

A
Frame

B
Tray

C
White Board

D
Wire Hangers

E
Hanger Tips
For questions or concerns, please call
Safco Consumer Hot Line 1-800-664-0042
available Monday-Friday 7:30 AM to 5:00 PM (Central Time)
(English-speaking operators)
1
Remove E Hanger Tips from the bottoms of D
Wire Hangers as shown below. Insert each wire
hanger into the two built-in clamps on each side by
gently pressing the clamp tabs down until the hang-
ers are in position. Replace the Hanger Tips onto the
bottoms of both of the
Wire Hangers.
Hanger
Tips
Clamp Tabs
100415837: 1 of 1; Rev A; Rev Date 09-AUG-2016
Dry-Erase Board
®
QTY. PART NO.
1 4158-01
1 4158-02
1 4158-03
2 4158-04
4 4158-08
WARNING:
Use ONLY
Dry-Erase Markers
on the White Board
surface.
ASSEMBLED UNIT
2
MODEL NUM-
D
E
A
C
B
Hang the Dry-Erase Board onto your offi ce panel
wall unit. Adjust the position of your Dry-Erase Board
on your wall by grasping the unit in both hands with
the back side facing away from you. With two fi ngers
of each hand simultaneously press the four clamp
tabs in and slide the unit up or down wire hangers to
the desired position, then release
the clamp tabs.
BACK VIEW
Safco Products Company, New Hope, MN 55428
4158
BER
Clamp Tabs
