Allendale Electronics AE-MAN-DS User Manual

Digital Linear Scales
Precautions
• Before using the linear scale for the first time, wipe with a clean cloth ideally soaked with cleaning oil.
• The scale is a precision measuring instrument. Avoid using excessive force, and treat with care.
• The fitted battery is intended for the factory test procedure and therefore may not meet the specified battery life.
• Avoid exposure to all liquids, excessive humidity or temperature.
• Avoid exposure to bright sunlight.
• Never apply voltage on any part of this linear scale or electric engrave.
• Remove the battery if the scale is not being used for a long period of time.
• Never use solvents to clean. Only use a soft cloth with cleaning oil.
• Ensure the linear encoder is mounted parallel and correct alignment of the reading head.
Linear Digital Scale
3
2
1
Horizontal Type
0
45
40
35
30
25
2
Battery Replacement
8
2
© Allendale Group
1. Slide open the battery cover.
11
9
3
4
© Allendale Group
8. Insert the two lugs on the
5
cover.
9. Gently lower battery cover.
www.machine-dro.co.uk - Allendale Electronics Ltd, Pindar Road, Hoddesdon, Hertfordshire. EN11 0BZ.
Images & Content ©2010 Allendale Electronics Limited. E&OE - Specifi cations subject to change without prior notice.
9
11
4
7
6
5
8
5
The Linear scale must be aligned
10
15 parallel to the machine travel. Use a
20
dial gauge or DTI to set parallel.
The travel of the reading head must
also be aligned correctly to the scale
beam, otherwise damage will occur.
2
2
1
© Allendale Group
2. Lift battery cover front edge.
3. Remove cover.
2
7
© Allendale Group
10. Pull battery cover outward
sightly
6
11. Fully lower cover
4
5
© Allendale Group
1
© Allendale Group
4. Remove battery
(a magnet tip
tool can be used).
5. Locate side spring contact.
11
8
© Allendale Group
12. Slide battery cover fully
closed.
11
Part No: AE-MAN-DS

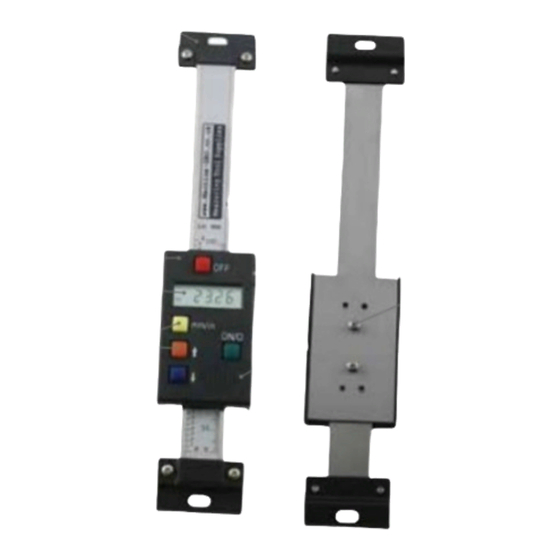

Vertical Type
1
2
3
7
6
1. Beam clamp.
2. Beam.
3
4
3. Reading head.
2
4. LCD display.
5. Function button.
6. Battery cover.
7. Data output cover.
2
8. Reading head fixing.
5
Magnet Positive (+)
tipped side up
tool
7
2
© Allendale Group
6. Insert replacement battery
edge against side contact.
7. Press down on other edge.
11
11
2
1
Doc V: 1.0
8
7
6
8
6
