Summary of Contents for Sebury W3-H

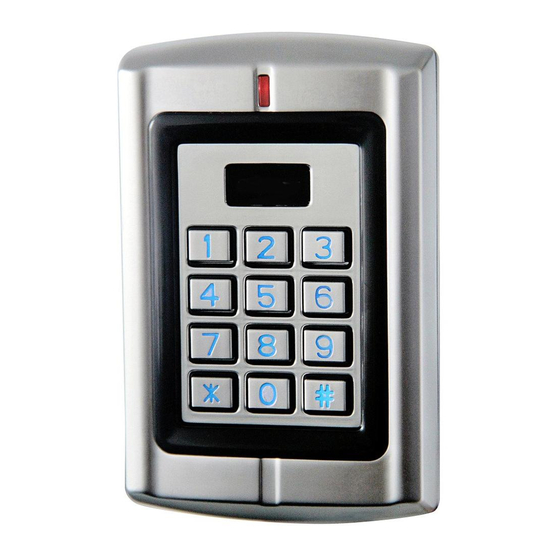

- Page 1 W3-H Waterproof Keypad/Reader/Controller User Manual...
-
Page 2: Packing List
IP65. > 12~24V DC/12~18V AC > Two-year warranty The W3-H supports up to 2,000 users in either a Card, 4~8 digits PIN, or a Card + PIN option and additional 10 groups Duress PIN/Card. The built- 4. -
Page 3: Specifications
12~24V DC/12~18V AC Black 12~24V DC/12~18V AC Regulated Power Input W3-H Relay NO Blue Purple Relay COM Orange Relay NC W3-H Negative Pink Anti-demolition alarm Connection Giagram Power PCB Connect Diagram Pink +12V GND OPEN Green Wiegand D0 5. Specifications... -
Page 4: Sound And Light Indication
7. Anti Tamper Alarm Bright Enter into programming mode Short Ring In the programming mode The W3-H uses a LDR (light dependent resistor) Exit from the programming mode Bright Short Ring as an anti tamper alarm. If the keypad is removed... - Page 5 11. W3-H Detailed Programming Guide 11.1 User Settings Master code To enter the programming mode 888888 is the default factory master code To exit from the programming mode Note that to undertake the following programming the master user must be logged in...
- Page 6 To add a card user (Method 3) 5 ID number # The 1st Card number # Card quantity # Add a series cards users - Block Note that cards must be consecutive, and card quantity is Enrollment between 1~2000 Maximum 2,000 cards can be enrolled at a stretch within 2 minutes To delete card user by card(Note users can be deleted 2 Read Card #...
- Page 7 To unlock the door For a PIN user Enter the PIN then press # Read card For a card user For a card and PIN user Read card then enter PIN # 11.2 Relay Setting (Pulse mode,Toggle mode) Pulse mode (Factory default) 4 1~99 # The door relay time is between 1~99 seconds, Pulse mode (Door relay time setting) the factory default setting is 5 seconds.
- Page 8 Normal status: No keypad lockout or alarm 7 0 # (Factory default ) Keypad Lockout 7 1 # Alarm Output 7 2 # Light and Sound Setting 7 4 # To disable keypad backlight To set keypad backlight 7 5 # To enable keypad backlight(Factory default) 7 6 # To disable the red LED To set LED 7 7 # To enable the red LED(Factory default)
- Page 9 14. Interconnecting Two Devices 14.1 W3-H operating as a Wiegand Output Reader In this mode the W3-H supports a Wiegand 26~37 bit output so the Wiegand data lines can be connected to any controller which supports a Wiegand 26~37 bit input.
- Page 10 14.2 W3-H operating as a Controller In this mode the W3-H supports a Wiegand 26~37 bit input so an external Wiegand device with a 26~37 bit output can be connected to the Wiegand input terminals on the W3-H. Either an ID card reader (125KHz) or an IC card reader (13.56MHz) can be connected to the W3-H.
- Page 11 W3-H Quick Reference Programming Guide * Master code # To enter the programming mode 888888 is the default factory master code To exit from the programming mode Note that to undertake the following programming the master user must be logged in...
