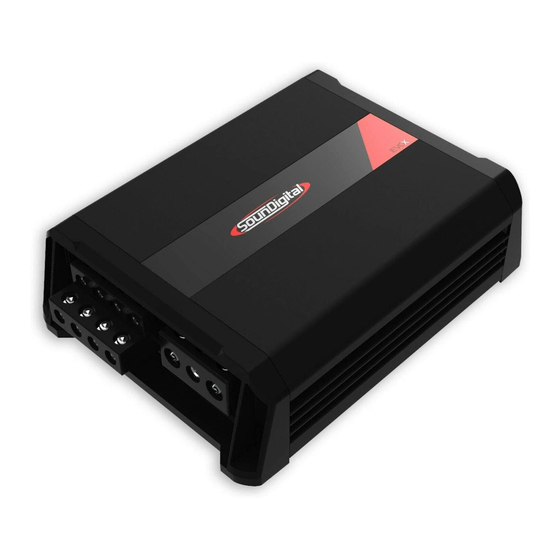

Summary of Contents for SoundDigital EVOX 1200.4

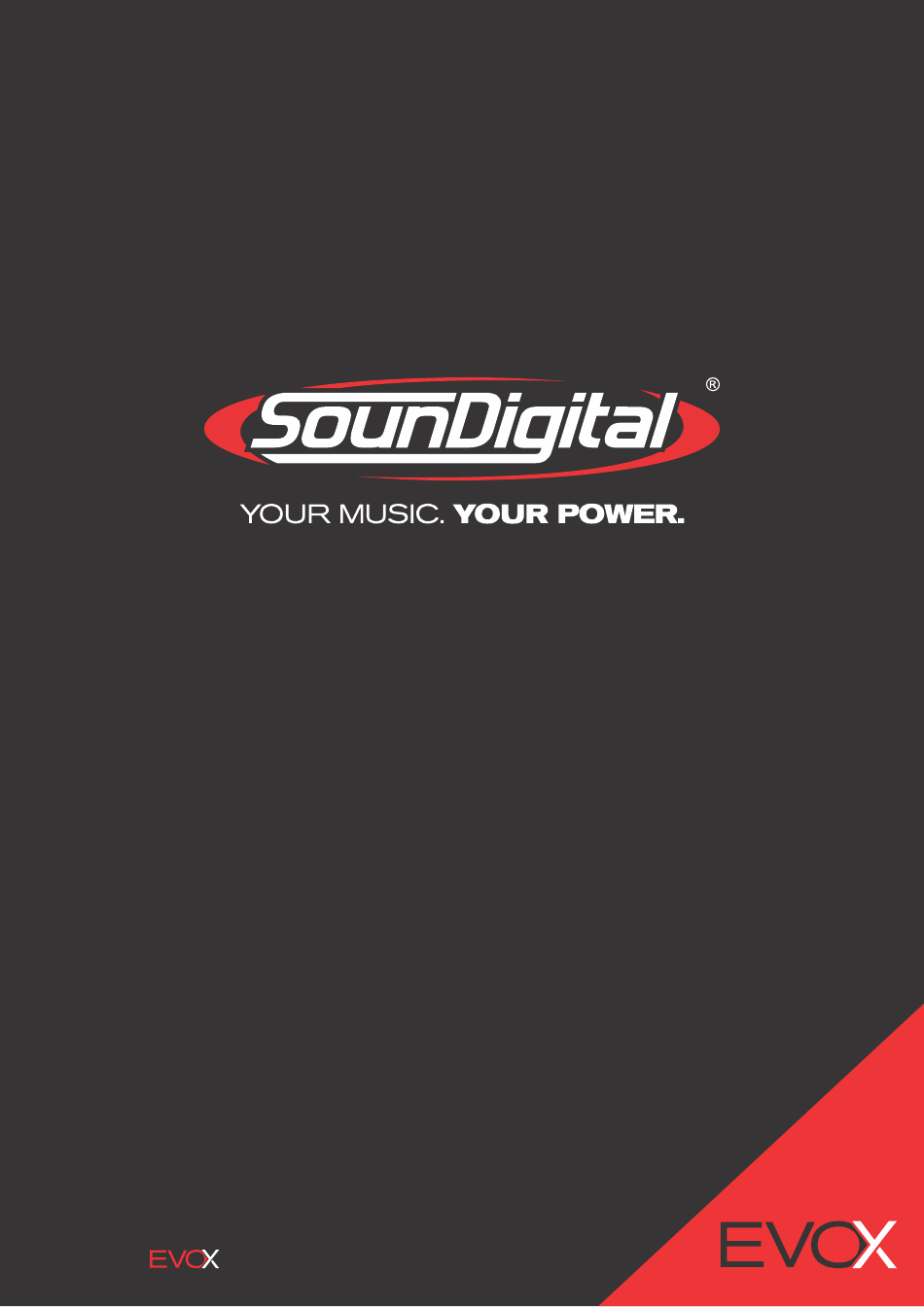

- Page 1 OWNER´S MANUAL 1200.4...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Introduction ........................Package contents ...................... Safety instructions ...................... Technologies DTR......................Ultra Compact PCB................Vibration Absorption Device............Low Battery consumption............. Assembling and Disassembling the plastic cover........Panels description Audio inputs and controls............Power inputs and audio outputs..........Electrical Dimensioning................... Audio inputs RCA inputs.................... -
Page 3: Introduction
INTRODUCTION DEAR CUSTOMER, CONGRATULATIONS ON ACQUIRING A PRODUCT WITH THE HIGHEST QUALITY AND TECHNOLOGY! You have just purchased a SounDigital product of the highest technology and quality, so we thank you for your confidence. SounDigital products are made with raw materials of the highest quality standards, and the most modern processes, equipment and technology are used in their production. -
Page 4: Safety Instructions
SAFETY INSTRUCTIONS To prevent injuries to the user or damage to the amplifier, read all safety instructions written on this manual; If you are insecure about the installation of this equipment, get in touch with our tech support or with a professional specialized in car audio installation; Before proceeding with the installation of any electric equipment on your vehicle, unplug the negative (-) terminal of the battery to avoid fires, injuries or damages;... -
Page 5: Technologies
TECHNOLOGIES DYNAMIC THERMAL RECOVERY - DTR ALUMINIUM HEATSINK CONDUCTIVE COOPER LAYER ELECTRONIC COMPONENT The DTR* is a dynamic thermal recovery system which always maintains a high efficiency of the amplifier by accelerating the thermal exchange of electronic components with the heatsink * Patent. -
Page 6: Vibration Absorption Device
TECHNOLOGIES VIBRATION ABSORPTION DEVICE SounDigital added a new device to the EVO X products which act like springs, reducing the impact of vibration on the eletronic circuit board, thereby increasing the life and reliability of the amplifiers. I - POWER SUPPLY SounDigital amplifiers are known for their low consumption of battery, and this feature was improved on the EVOX Line. -
Page 7: Assembling And Disassembling The Plastic Cover
ASSEMBLING AND DISASSEMBLING THE PLASTIC COVER The plastic covers have the function of finishing and hiding the amplifier fixing screws. To disassembling and assembling them, follow the instructions below. DISASSEMBLING OF THE PLASTIC COVER 1. Carefully pull out the top of plastic cover to release the upside latches, as shown in the picture 1. 2. -
Page 8: Panels Description
PANELS DESCRIPTION CH1/CH2 Variable crossover control - 45Hz to 850Hz CH3/CH4 CH1/CH2 High Level audio input (To connect to the speaker output of the headunit) CH3/CH4 Audio input - RCA connector CH1/CH2 Crossover Switch Low Pass - Full - High Pass CH3/CH4 CH1/CH2 Variable Gain Control... -
Page 9: Power Inputs And Audio Outputs
PANELS DESCRIPTION Negative power supply connector (GND) Remote power supply connector (REM) Positive power supply connector (+12VDC) Positive speaker connector Negative speaker connector Negative speaker connector Positive speaker connector Negative speaker connector Positive speaker connector Positive speaker connector Negative speaker connector... -
Page 10: Electrical Dimensioning
ELECTRICAL DIMENSIONING AND AUDIO INPUTS ELECTRICAL DIMENSIONING For proper operation of your SounDigital amplifier, you need the proper dimensioning of the electrical system and the cables used. The table below shows the minimum section of GND cables, +12VDC cables and speaker output cables according to the power generated by the amplifier. -
Page 11: Installation Sequence
INSTALLATION SEQUENCE Warning! Mount the amplifier in such a way you have access to the connectors; Ø Install the power cables in the vehicle properly, starting from the battery to the fuse Ø holder or circuit breaker, use the cable with the appropriate size. Make all connections, install fuse holders or circuit breakers, but without placing the fuses or with the circuit breakers in the "Off"... -
Page 12: Wiring Diagram
WIRING DIAGRAM 4 CHANNEL WIRING DIAGRAM See "Audio Inputs" on page 10 3 CHANNEL WIRING DIAGRAM See "Audio Inputs" on page 10... -
Page 13: Two Channels Wiring Diagram
WIRING DIAGRAM / GAIN SETING 2 CHANNEL WIRING DIAGRAM See "Audio Inputs" on page 10 GAIN SETING Set the source unit's fader control to Ø center position; Necessary equipament: Set the crossover selector switch in "F» Ø Digital AC voltmeter; Ø... -
Page 14: Crossovers Set Up
CROSSOVER SET UP "F" All the frequencies are reproduced; "LP " Set in the variable control on Low Pass Function; "HP " Set in the variable control on High Pass Function. Switch Key to "F" position (Full Range): All the frequencies are reproduced. Ø... -
Page 15: Technical Specs
TECHNICAL SPECS 1200.4 2Ω 1200.4 4Ω PARAMETERS Power RMS Bridge @ 4Ω* 2 X 396W 2 X 600W Power RMS Bridge @ 2Ω* 2 X 600W Power RMS @ 2Ω* 4 X 198W 4 X 300W Power RMS @ 1Ω* 4 X 300W Frequency Response (-3db) 5Hz ~ 22kHz...
