WHITE-RODGERS
Operator: Save these instructions for future use!
FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY
BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE
PERSONAL INJURY AND/OR PROPERTY DAMAGE.

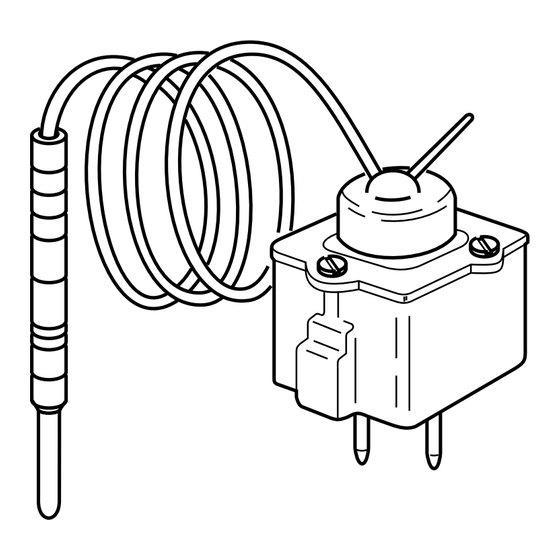

The 3098-134 and 3098-156 Mercury Flame sensors are
designed as universal replacements for types currently
used on cycling pilot ignition systems. They will replace
sensors used in "thermocouple" type (slip-in) pilot burners.
The bulbs on both flame sensors have additional grooves
to accept retaining clips (C-rings) allowing them to replace
most existing sensors.
The 3098 Flame Sensors are SPDT (single-pole double-
throw) devices, with switchcases designed to plug into
cycling pilot gas valves. These flame sensors should not
be used in appliances other than those listed in the cross
reference.
If in doubt about whether your wiring is millivolt, line, or low
voltage, have it inspected by a qualified heating and air
conditioning contractor or licensed electrician.
Do not exceed the specification ratings.
All wiring must conform to local and national electrical
codes and ordinances.
This control is a precision instrument, and should be
handled carefully. Rough handling or distorting compo-
nents could cause the control to malfunction.
WARNING
!
Do not use on circuits exceeding specified volt-
age. Higher voltage will damage control and could
cause shock or fire hazard.
This product contains mercury. There will not be any exposure to mercury under normal conditions of use. This product may
replace a unit which contains mercury. Do not open mercury cells. If a cell becomes damaged, do not touch any spilled
mercury. Wearing nonabsorbent gloves, take up the spilled mercury with sand or other absorbent material and place into a
container which can be sealed. If a cell becomes damaged, the unit should be discarded. Mercury must not be discarded in
household trash. When this unit or the unit it is replacing is to be discarded, place in a suitable container and return to us.
WHITE-RODGERS DIVISION
EMERSON ELECTRIC CO.
9797 REAVIS RD., ST. LOUIS, MO. 63123-5398
(314) 577-1300,
FAX (314) 577-1517
9999 HWY. 48, MARKHAM, ONT. L3P 3J3
(905) 475-4653,
FAX (905) 475-4625
3098-134 & 3098-156
Standard Replacement
Mercury Flame Sensor

INSTALLATION INSTRUCTIONS

To prevent electrical shock and/or equipment
damage, disconnect electric power to system at
main fuse or circuit breaker box until installation
is complete.
Shut off main gas to heating system until installa-
tion is complete.
Label all wires prior to disconnection when ser-
vicing controls. Wiring errors can cause improper
and dangerous operation.
Following installation or replacement, follow ap-
pliance manufacturer's recommended installa-
tion and/or service instructions to insure proper
operation.
ATTENTION!
Printed in U.S.A.
DESCRIPTION
3098 MERCURY
FLAME SENSOR
PRECAUTIONS
CAUTION
!
PART NO. 37-3600C
Replaces 37-3600B
9711

Advertisement

loading
Need help?

Need help?

Do you have a question about the 3098-134 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for White Rodgers 3098-134

  • Page 1: Installation Instructions

    FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL INJURY AND/OR PROPERTY DAMAGE. The 3098-134 and 3098-156 Mercury Flame sensors are designed as universal replacements for types currently used on cycling pilot ignition systems. They will replace sensors used in “thermocouple”...
  • Page 2: Specifications

    SPECIFICATIONS Type 3098-134 is equipped with a “high-mass” element, and is used in applications where a medium sensor response time (typically 45 to 60 seconds) is desired. Type 3098-156 contains a “low-mass” element, and is used in applications where a short response time (usually between 30 to 45 seconds) is required.
  • Page 3 D’INSTALLER ET D’UTILISER LA COMMANDE, VOUS RISQUEZ DE CAUSER DES BLESSURES ET DES DOMMAGES MATÉRIELS. Les détecteurs de flamme au mercure 3098-134 et 3098-156 ont été conçus pour servir de rechange universelle aux dispositifs qui servent actuellement avec les allumages à veilleuse cyclique.
  • Page 4 SPÉCIFICATIONS Le modèle 3098-134 est doté d’un élément « à masse élevée ». Il sert lorsque l’on désire un temps de réponse moyen du détecteur, soit de 45 à 60 secondes. Le modèle 3098-156 est doté d’un élément « à faible masse ».

This manual is also suitable for:

3098-156
