Summary of Contents for Ultraframe ROOF VENT

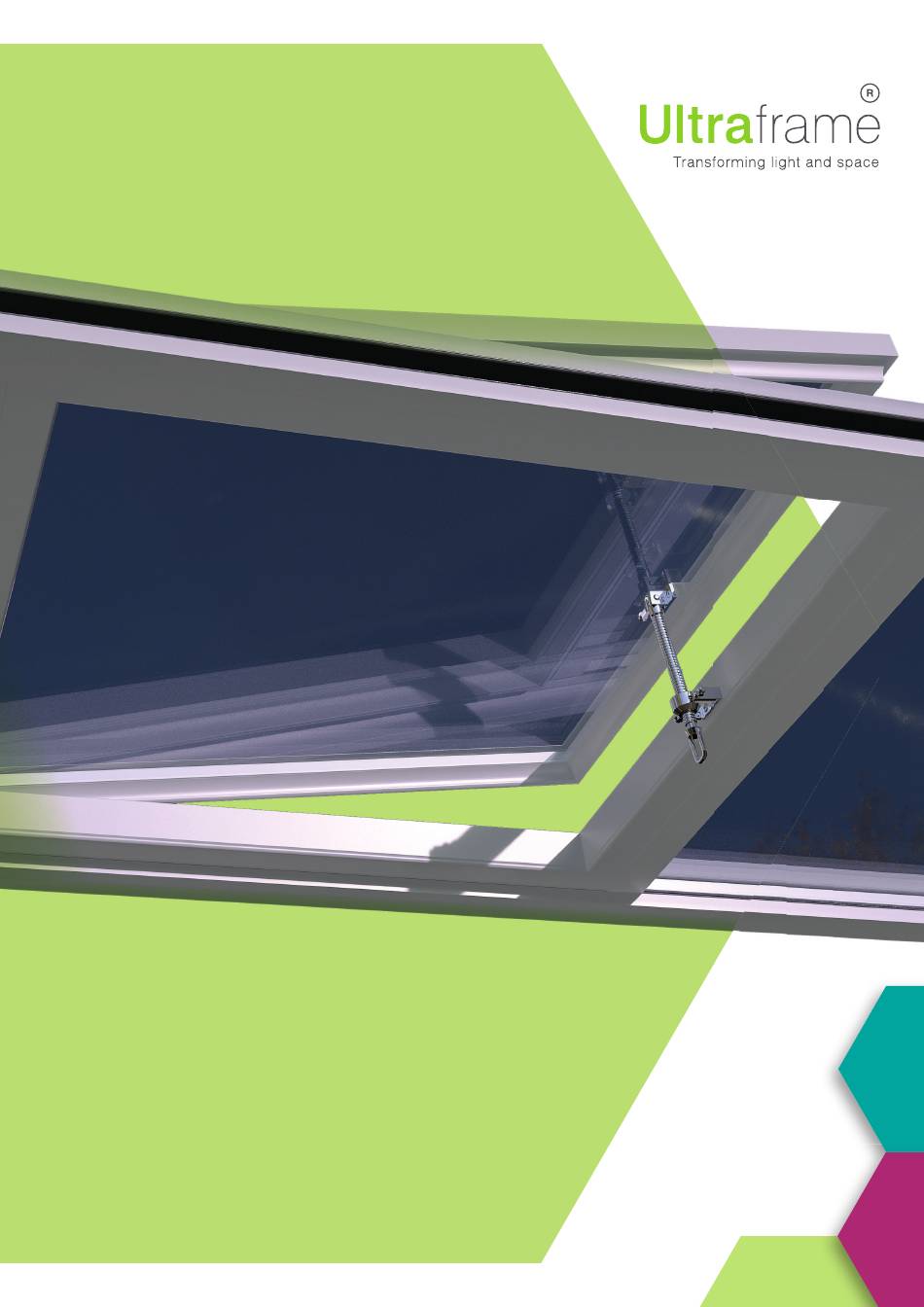

- Page 1 V2 | August 2019 ROOF VENT INSTALLATION GUIDE...
- Page 2 PVCU ROOF VENT INSTALLATION GUIDE CONTENTS section 1 Components list section 2 Roof vent sash section 3 Vent main frame into roof section 4 Fitment of mechanical winder Fitment of electric motor (if selected) section 5 Installation of vent controller...
- Page 3 ROOF VENT SASH SECTION 2 Unwrap the sash and pull two side sections out as shown above. Apply length of foam tape directly to the lower edge of the outer pane of the glass unit as shown. Start by applying the tape 70mm up the...
- Page 4 VENT MAIN FRAME INTO ROOF SECTION 3 Slide the internal lower muntin bar into place Remove any handling tape around the under the vent frame. See cross section 8a for perimeter of the unit. Take care lowering the further detail. glazed unit into position on the internal lower muntin bar.
- Page 5 FITMENT OF MECHANICAL WINDER SECTION 4 Align Attach the winder head to the sash bracket, Apply downward force to the sash bracket using the plunger pin. Hold the winder at (see 1). Turn the connection collar until the the relevant angle. Turn the winder body holes on the collar are approximately 3mm clockwise until it locks with the sash bracket.
- Page 6 The vents open automatically at high temperatures and close again when the temperature drops or rain is detected. Up to 6 Ultraframe actuators can be controlled by type Q8750. TECHNICAL SPECIFICATION Working voltage of rain sensor: 1V to 6V wet - 7.5V to 10V dry...
- Page 7 SWITCH AND CONTROLLER WIRING SECTION 6 INSTALLATION OF RAIN SENSOR SECTION 7 1. Pass the cable through the cable gland, strip the cable ends and PACKING WHEN PITCH IS 15° TO 45° PITCH LESS THAN 15° crimp on the terminals supplied. 2.
- Page 8 Job No.: 5016 SLVIG001 06/2019 v2 It is Ultraframe’s policy to continually seek to improve its products, processes and services, and we reserve the right to change specifi cations without prior notice. Ultraframe is a trading name of Ultraframe (UK) Limited.
