Harbor Breeze
is a registered trademark of LF,
®
LLC. All rights reserved.
ATTACH YOUR RECEIPT HERE
Purchase Date

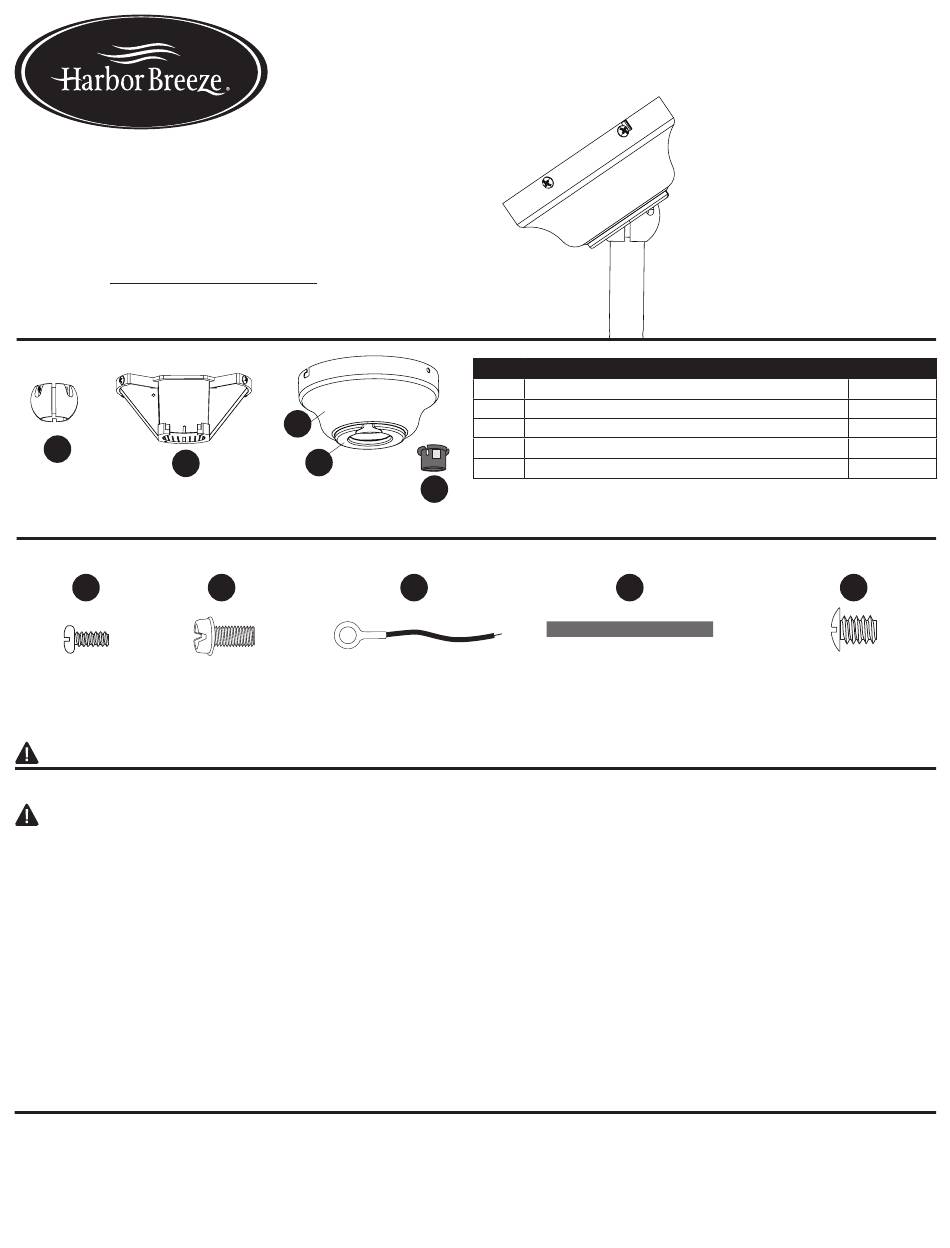

PACKAGE CONTENTS
A
B
HARDWARE CONTENTS (shown actual size)
AA
Set Screw
Ground Screw
Qty. 1
SAFETY INFORMATION
Please read and understand this entire manual before attempting to assemble, operate or install the product.
WARNING
•
ELECTRICAL SHOCK HAZARD/FIRE HAZARD: Disconnect power before removing or installing parts in fixture. Failure to do so can result in death
or electrical shock.
•
To prevent fire, install in accordance with appropriate electrical codes and regulations.
•
It is extremely important the outlet box is securely attached to the building structure and can support the full weight of the fan. Do NOT use a plastic
outlet box. Ensure the outlet box is clearly marked "Suitable for Fan Support." If not, it must be replaced with an approved outlet box. Failure to do
so can result in serious injury.
•
Failure to align slot in ball with tab may cause fan to wobble or fall, which could result in serious injury or death.
CAUTION
•
Ceiling angle is not to exceed 45
•
It is imperative you use the hanging bracket and canopy provided with this angled ceiling adapter as the screw holes in the hanging bracket are aligned
to fit specifically with the screw holes in the canopy provided.
PREPARATION
Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is
missing or damaged, do not attempt to assemble the product.
Estimated Assembly Time: 30 minutes
Tools Required for Assembly (not included): Phillips Screwdriver and Step Ladder
EB1695
C
D
BB
Ground Wire
Qty. 1
(not to scale)
o
for 1/2-in. or 3/4-in. downrods.

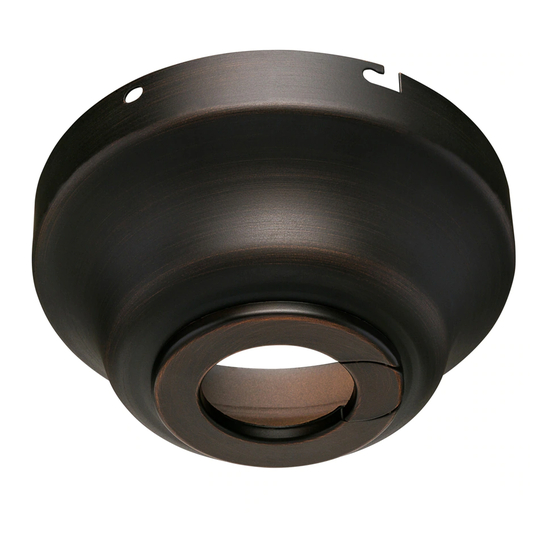

ANGLED CEILING ADAPTER
PART
A
Ball
B
Mounting Bracket
C
Canopy
D
Canopy Cover (preassembled to Canopy [C])
E
Ball Adapter
E
CC
Qty. 1
1
ITEM #0805608, 0829276, 0829277
MODEL #40030, 40295, 40294
DESCRIPTION
DD
Pin
Mounting Bracket Screw
Qty. 1
QUANTITY
1
1
1
1
1
EE
Qty. 4
Advertisement
Summary of Contents for Harbor Breeze 40030
- Page 1 ITEM #0805608, 0829276, 0829277 ANGLED CEILING ADAPTER MODEL #40030, 40295, 40294 Harbor Breeze is a registered trademark of LF, ® LLC. All rights reserved. ATTACH YOUR RECEIPT HERE Purchase Date PACKAGE CONTENTS PART DESCRIPTION QUANTITY Ball Mounting Bracket Canopy Canopy Cover (preassembled to Canopy [C])
- Page 2 ASSEMBLY INSTRUCTIONS Note: This item was designed for use with an existing ceiling fan. It will be necessary to purchase a longer downrod in order to install the fan to a vaulted ceiling. The parts included with this item will be used instead of similar parts included with your fan. 1. Turn off circuit breakers and wall switch to 7a. If using a 3/4-inch diameter the fan supply line leads. accessory downrod, attach the ground DANGER: Failure to disconnect the wire (CC) to the smaller hole in the Hole power supply prior to installation may...
