Summary of Contents for HiModel SJM180
-
Page 2: Notes For Safety

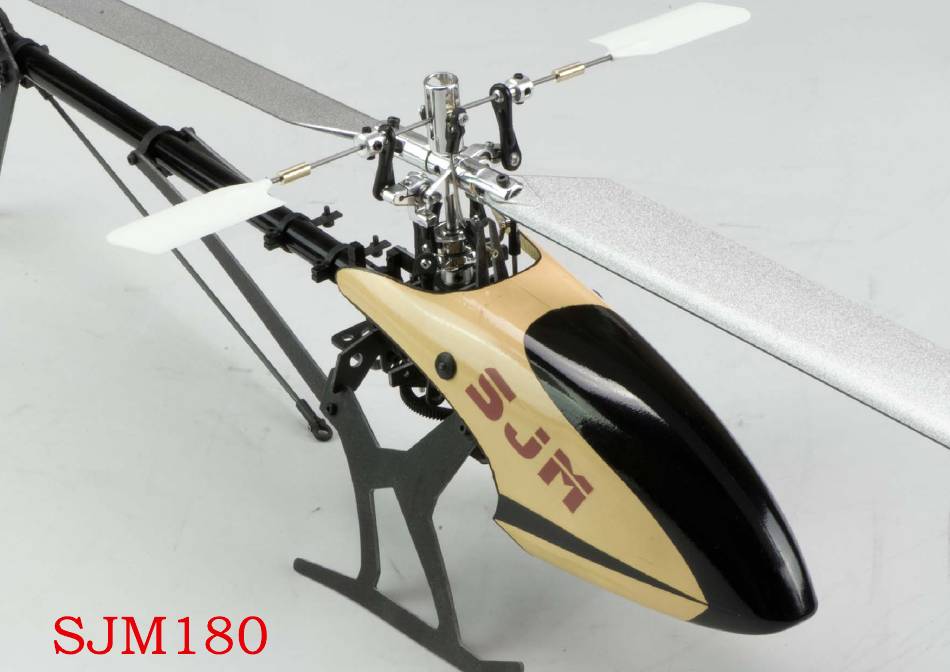

Notes for safety： 1． This RC heli model is not a low motivity doll. It is with big force and high flying speed. Please try it under the guiding of somebody experienced. 2．Please fly under a safe condition. 3．After switch on the electricity, the heli might shake strongly or out of control when affected by electronic waves. Such as near the domestic electronic equipment, under a high pressure environment, or there is other remote controller using the same radio channel, or other unidentified wave. - Page 3 SJM180 KIT: Kit weight：198g RTF weight:：320-400g Kit length(include canopy)：430mm Kit width:：100mm Kit height：170mm Main rotor diameter：438 mm Main rotor specification：215×30mm Flybar rod：155mm Tail rotor diameter：108mm Main shaft diameter：Ø4mm Tail rotor shaft diameter：Ø3mm Speed ratio of main and tail drive gear：1:4:8 Main rotor：Changeable screw distance...
- Page 4 Motor And Other Electronics： One set of (must support ccpm120 degree) remote control,receiver with over 6 channels (optional) Motor,electronic controller and one set of BEC4.8v,2A (optional) Battery: lipo battery 2S-4S，800~1000mah，above15C (optional) Four servos (optional) One gyro (optional) One battery charger (optional)
- Page 5 SJM180 PACKING LIST PACKIN NAME SPECIFICATION QUALITY UNIT G NO. MT8027 Main boom M11×295.4 PS8001 Belt MT8001 Unit housing MT8028 Transmission shaft 2×42 PS8003 Transmission gear Wheel fend MT8028 Top ring 3.5×2×1.5 BR8003 Bearing 2×6×H2.5mm SC8004 Cap screw M2×10mm SC8007 Set screw M3×3mm...
- Page 6 SJM180 PACKING LIST PACKIN NAME SPECIFICATION QUALITY UNIT G NO. FG/CF8004 Horse FG/CF8005 Motor board FG/CF8006 Tail boom support board NU8001 SC8010 Cap screw M2×20mm MT8014 Motor mount FG8009 Canopy rubber FG/CF8007 Canopy SC8003 Cap screw M2×8mm SC8002 Cap screw M2×5mm...
