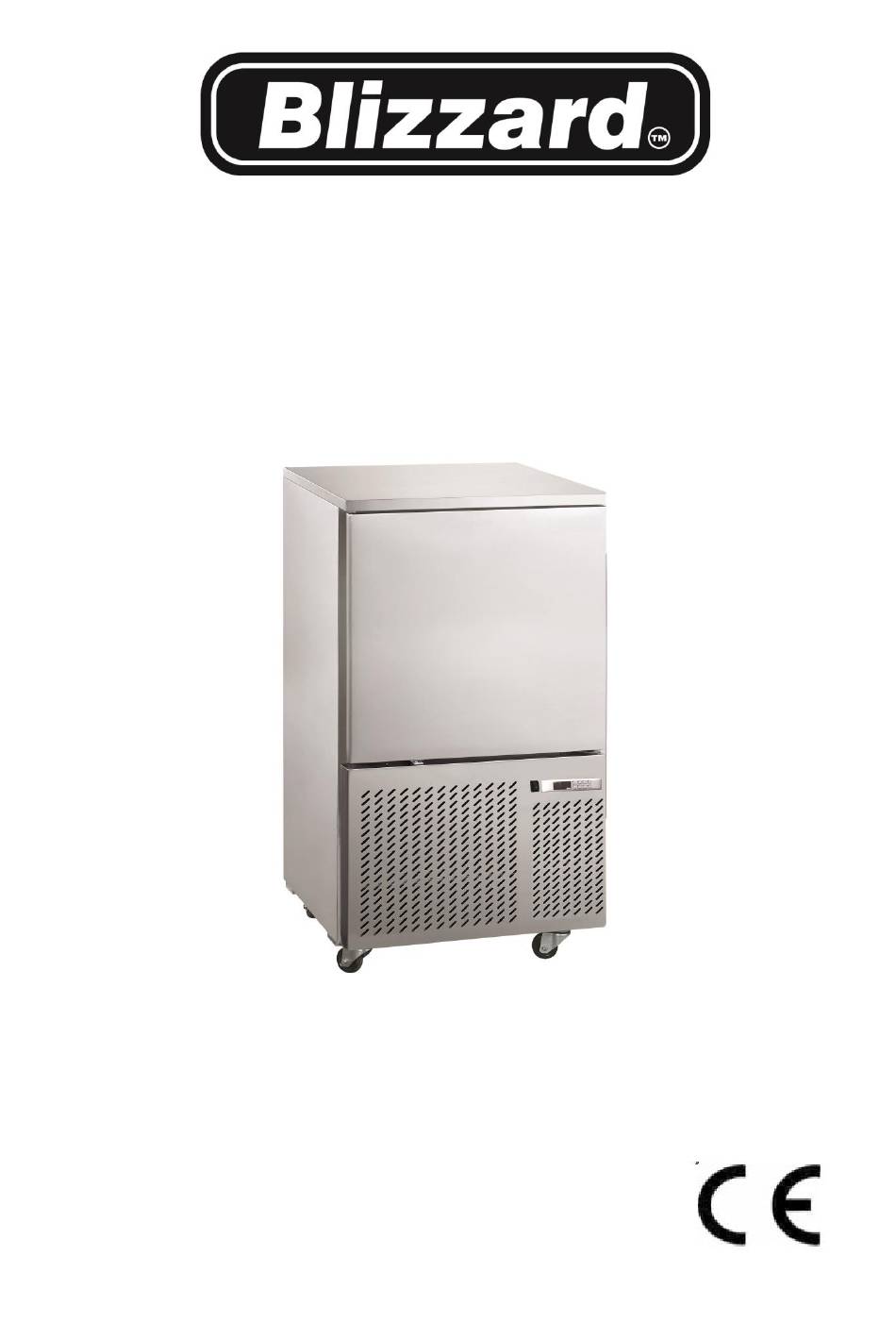

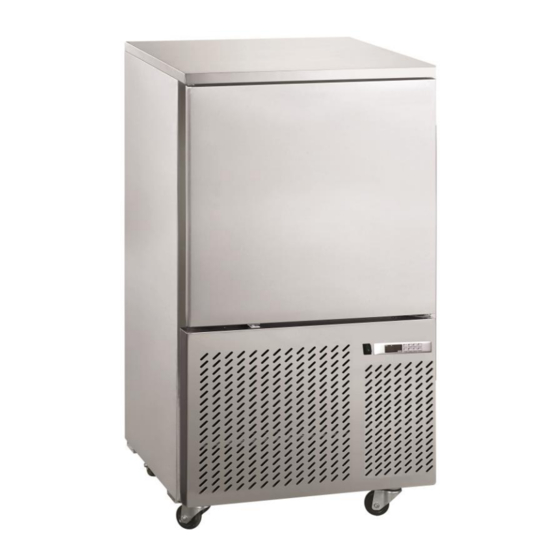

- Page 1 BLAST CHILLER Installation, Operation & Maintenance Manual BCF20,40 & 60 Models...
-
Page 2: Table Of Contents
Cleaning the condenser coil…………………………………………………..10 Cleaning the fan blade and motor………………………………………………11 Cleaning the interior of unit………………………………………………………11 ◆ TROUBLE SHOOTING…………………………………………………………12 ◆ TECHNICAL SPECIFICATION………………………………………………...13 Pentland Wholesale Ltd, Blizzard House, Unit17 Walker Park Ind Est, Walker Road, Blackburn, Lancs BB1 2QE Tel 01254 614444. www.pentlandwholesale.co.uk... -
Page 3: Installation
IMPORTANT SAFETY INSTRUCTIONS, READ CAREFULLY AND KEEP FOR FUTURE REFERENCE INSTALLATION IMPORTANT!!! PLEASE READ BEFORE INSTALLATION ■ If the unit has recently been transported. Please let unit stand still for a minimum of 24 hours before plugging it in. ■ Make sure that there is proper ventilation around the unit in the where it will operate. ■... -
Page 4: Electrical Safety
－outdoor use may cause decrease efficiency and damage to the unit ■ Avoid installation in a high humidity and/or dusty area －humidity could cause unit to rust and decrease efficiency of the unit －dust collected on condenser coil will cause unit to malfunction. Clean the condenser at least once a month with a brush or clean cloth ■... -
Page 5: Operation
CAUTION: Low or high voltage can detrimentally affect the refrigeration unit. ■ All units should be plugged into a grounded and properly-sized electrical outlet with appropriate overcurrent protection. Please refer to the electrical requirement on the nameplate. If you do not have the right outlet have a certified electrician install the correct power source. -
Page 6: Operation Instruction For Temperature Controller
& freezers are designed to reduce the time period for this critical change in temperature. ■ The storage cabinet is designed to fit two kinds of pans * GN 1/1 pan * 400x600 EN pan When blast chilling always use metal or foil containers which are good conductors. - Page 7 • Any cycle can be manually terminated before the normal. • Any cycle can use the insert probes (up to 3), they measure the internal temperature of the product. • During the Cycle there are no defrosts and the fans are always on, a defrost cycle can be done before any freezing cycle.
- Page 8 HOW TO TEMPORARILY STOP THE RUNNING CYCLE. 1. Press and release the key. 2. The compressor and the fan will be stopped for the PAU time (see parameters list) and the flashing message “Stb” will be displayed. 3. To restart the cycle press and release the key, the cycle will restart from the same point at which it was interrupted.
- Page 9 HOW TO DISPLAY THE REGULATION SET POINTS By pushing the SET key the following information are displayed in sequence: - rSI = Room set point - iSI = Stop phase set point, referred to the insert probe - Back to the room temperature. HOW TO MODIFY THE ROOM SET POINT While rSI or iSI are displayed hold pushed the SET key till the rSi or iSi label start flashing and LED near the SET key...
- Page 10 6. HOW TO START A MANUAL DEFROST. Assure that none cycle is active or the hold mode is running. Hold press the UP key fro few seconds. NOTE: The defrost will not be done if the temperature detected by the evaporator probe is higher than EdF (stop defrost temperature) parameter.
- Page 11 6. dEF: for starting a manual defrost 2. Now the cycle is memorised and can be activated. HOW TO MODIFY A CYCLE 1. Verify that none cycle is running. If one cycle is running stop it by pushing the key for 3s. 2.
-
Page 12: Regular Maintenance
by the 3 insert probes reach the iS1 value. Second phase: “Soft chill”. The Soft Chill starts when the Hard Chill ends. It is used to prevent thin layer of ice from forming on the product. The Soft Chill lasts until the temperature measured by the 3 insert probes reach the set point iS2 (usually 4 or 5°C). -
Page 13: Cleaning The Fan Blade And Motor
CLEANING THE FAN BLADE AND MOTOR If necessary, clean the fan blades and motor with a soft cloth, if it is necessary to wash the fan blades, cover the fan motor to prevent moisture damage. CLEANING THE INTERIOR OF UNIT ■... -
Page 14: Trouble Shooting
TROUBLE SHOOTING Before requesting any service on your unit, please check the following points. Please note that this guide serves only as a reference for solutions to common problems. SYMPTOM POSSIBLE CAUSE CORRECTIVE ACTION Compressor Fuse blown or circuit breaker tripped. Replace fuse or reset circuit breaker. -
Page 15: Technical Specification
Technical Specification Chilling Ext. Container Freezing wats Load Climate capacity Model Dimension capacity/ capacity in charge Class type (W*D*H mm) in GN1/1 240mins/kg 90mins/kg BCF20-HC R290 800*800*930 BCF40-HC R290 800*800*1515 BCF60-HC R290 800*800*1763 1200... - Page 16 Adjusting parameters on a Blizzard Blast Chiller To start the cycle press and release the...
- Page 17 Pre-set cycle settings:...
