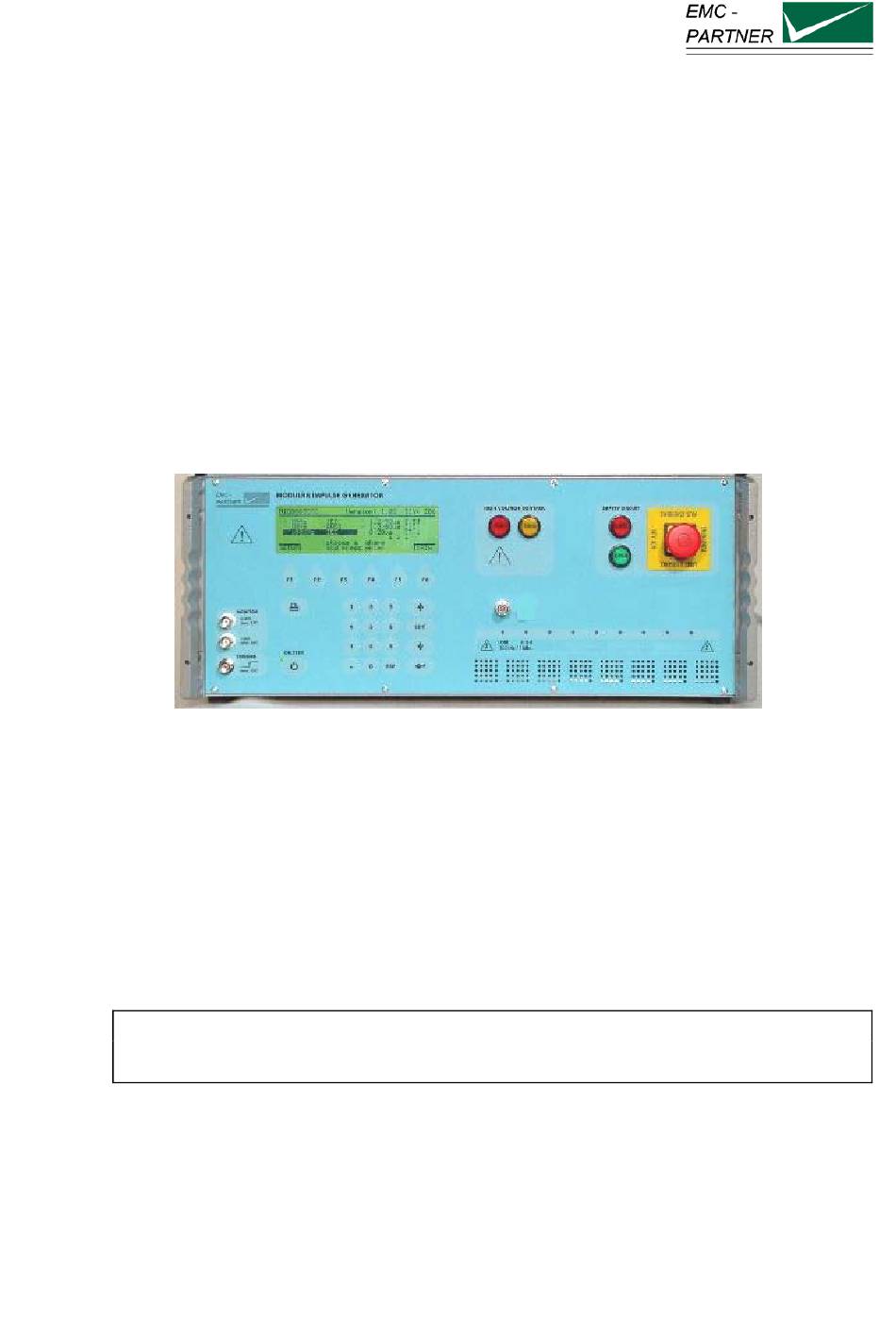

User Manual "Damped Oscillatory Wave Tester "
Waveforms: damped oscillatory 100 kHz, 1MHz, surge 1.2/50, 8/20 µs, 1.2/50 µs 0.5 J
Title:
Date:
General Manager:
Service Manager:
Revised:
23.04.2012
MIG-OS-OS1
Waveforms: damped oscillatory 100 kHz, 1MHz
MIG0603OSI
MIG-OS-OS1 4UH and MIG0603OSI 8 UH
1 MHz, 100 kHz, SURGE 1.2/50, 8/20 µs, 1.2/50 µs 0.5J
MIG - Modular Impulse Generator
E-MIG-OS-OS1-MIG0603OSI-E-Manual
MIG - Modular Impulse Generator
16.05.99
M. Lutz
R. Henz
18. December 2010
1/112
