SPECIFICATIONS
Input
120VAC or 12VDC
Output
4-8 cell (4.8V – 9.6V)
Battery capacity
50mah-5000mah
Charging rate
0.5amp – 6.5amp
Threshold
30mV
Case size
6.00" x 4.00" x 2.00"

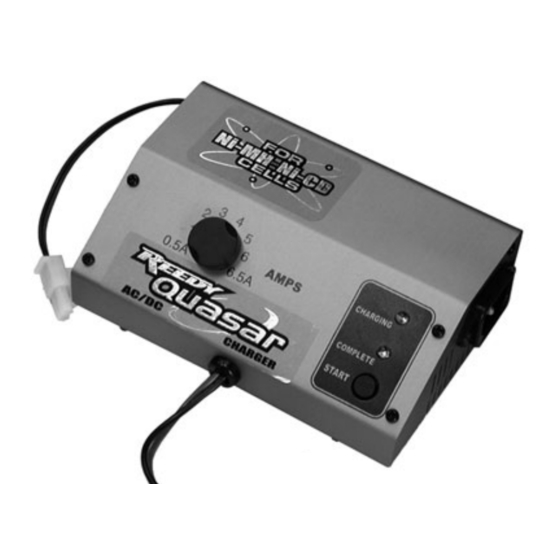

• The Quasar is a versatile charger, which will charge both Ni-CD
and Ni-MH battery packs.
• The charge rate is adjustable from 0.5 amp to 6.5 amp, allowing
it to be used for charging packs with capacities ranging from
50mah to 5000mah.
• Quasar also has the option of either 120VAC input power or
12VDC input power.
• The Quasar charger may be used to charge 4-8 cell battery packs.
AC/DC CHARGER
Includes:
• Charger system.
• Power cord for 120V AC.
• Large alligator clips for 12V DC.
• Direct-connect plug for battery pack.
• Alligator clip adapter for battery
pack connection.
1 Plug the power cord into
the charger.
2 Plug the power cord into
the power source.
3 Select the charge rate.
4 Connect the battery pack
to the charger.
5 Push the Start button.
6 When the Completed light
glows, remove the battery
pack.
#610
QUICK-START
INSTRUCTIONS
Advertisement
Related Manuals for Reedy Quasar 610
Summary of Contents for Reedy Quasar 610
- Page 1 AC/DC CHARGER #610 Includes: • Charger system. • Power cord for 120V AC. • Large alligator clips for 12V DC. SPECIFICATIONS • Direct-connect plug for battery pack. • Alligator clip adapter for battery Input 120VAC or 12VDC pack connection. Output 4-8 cell (4.8V –...
- Page 2 CHARGER OPERATION WARNING! To avoid overheating, never place charger and/or battery pack in direct sun light while charging. DETERMINE THE TYPE OF INPUT POWER YOU WILL BE USING Left: DC adapter cord. • If using 120VAC then read the two steps of the 120VAC section following. Middle: AC cord.
- Page 3 CHARGING WARNING! Battery pack must be in discharged condition before starting charge cycle. Failure to do this can result in damage to battery and/or charger. Connect the battery pack to be charged to the charging cord Connect your battery located at the front of the charger pack to this plug.
- Page 4 WARNING ASSOCIATED ELECTRICS, INC. AND REEDY MODIFIEDS HAVE NO CONTROL OVER THE USE AND APPLICATION OF THIS PRODUCT AND SHALL NOT BE LIABLE FOR ANY PROPERTY DAMAGE OR PERSONAL INJURY RESULTING FROM THE FAILURE TO FOLLOW THESE INSTRUCTIONS OR IMPROPER USE OF THE PRODUCT.
