protech QM7410 User Manual

1.Description
Thank you for purchasing the QM7410. This product is capable of non-contact (infrared)
temperature measurements at the touch of a button. The built-in laser pointer increases target
accuracy while handy push-buttons combine for convenien , ergonomic operation. The QM7410
can be used to measure the temperature of objects with a surface that cannot be measured by
traditional contact thermometers. Proper use and care of this meter will provide years of usage.
2.Features
• R apid Detection Function
• Precise Non-Contact Measurements
• Single Laser Sighting
• Unique Flat Surface, Modern Housing Design
• Automatic Data Hold
• "MAX/MIN" Function
3.Wide Range Application
Food preperation, safety and fire inspectors, plastic molding, asphalt, marine, screen printing,
measure ink and dryer temperature, HVAC/R, diesel and feet amaintenance, etc.
4.Safety
• Use extreme caution when the laser beam is turned on.
• Do not let the beam shine onto your or others eyes.
• Be careful not to let the beam reflect off of a surface and into your eyes.
• Do not allow the laser light beam impinge on any gas which can explode.
ATTENTION
LASER RADIATION
DO NOTSTARE INTOTHE BEAM
LASER DIODE
Wavelength 630-670nm
Max. output power: <1mW
CLASS 2 LASER PRODUCT EN 60825-1:2014
5.Distance & Spot Size
1.0in@12in
0.5in@6in
12.5mm@152mm
25mm@305mm
Distance : Spot = 12:1
Compact Non-Contact Thermometer
QM7410
User Manual
Distributed by:
Reduction Revolution Pty Ltd
www.reductionrevolution.com.au
6.Specifications
Temperature Range: -50 to 500°C (-58 to 932°F)
D:S: 12:1
Display Resolution: 0.1°C (0.1°F)
Emissivity: Fixed at 0.95
Accuracy: ±3°C (5.4°F) at -50 to 20°C (-58 to 68°F),
±2.0% ±2°C (3.6°F) at 20 to 500°C (68 to 932°F)
Repeatability: ±1°C (1.8°F)
Response Time: 500ms
Spectral Response: 8~14um
Over Range Indication: LCD will show "----"
Diode Laser: Output <1mW; Wavelength 630~670nm; Class 2 laser product
Operating Temperature: 0 to 50°C (32 to 122°F)
Storage Temperature: -10 to 60°C (14 to 140°F)
Relative Humidity: 10% to 90%RH operating; <80%RH storage
Power: 9V Battery (Included)
Note:
Field of View: Make sure that the target is larger than the units spot size. The smaller the
target, the closer you should be to it. When accuracy is critical, make sure the target is at
least twice as large as the spot size.

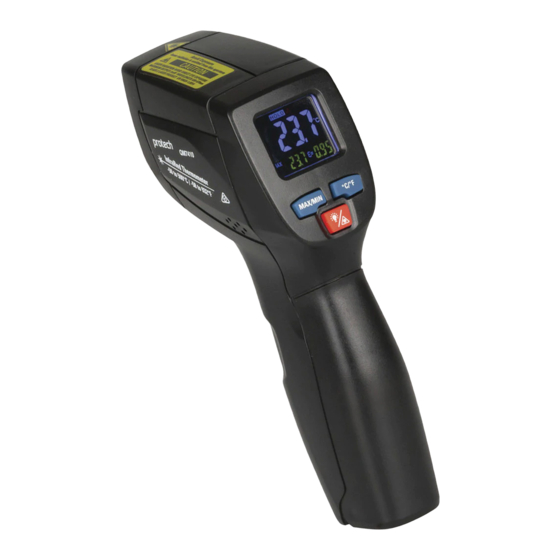

7.Panel Description
1-Laser
2-Infrared Sensor
3-Display Screen
4-°C/°F Button
5-Laser/Backlight Button
6-Max/Min Button
7-Power On/Measure Button (Automatic switch off after 10 seconds)
8-Battery Cover
