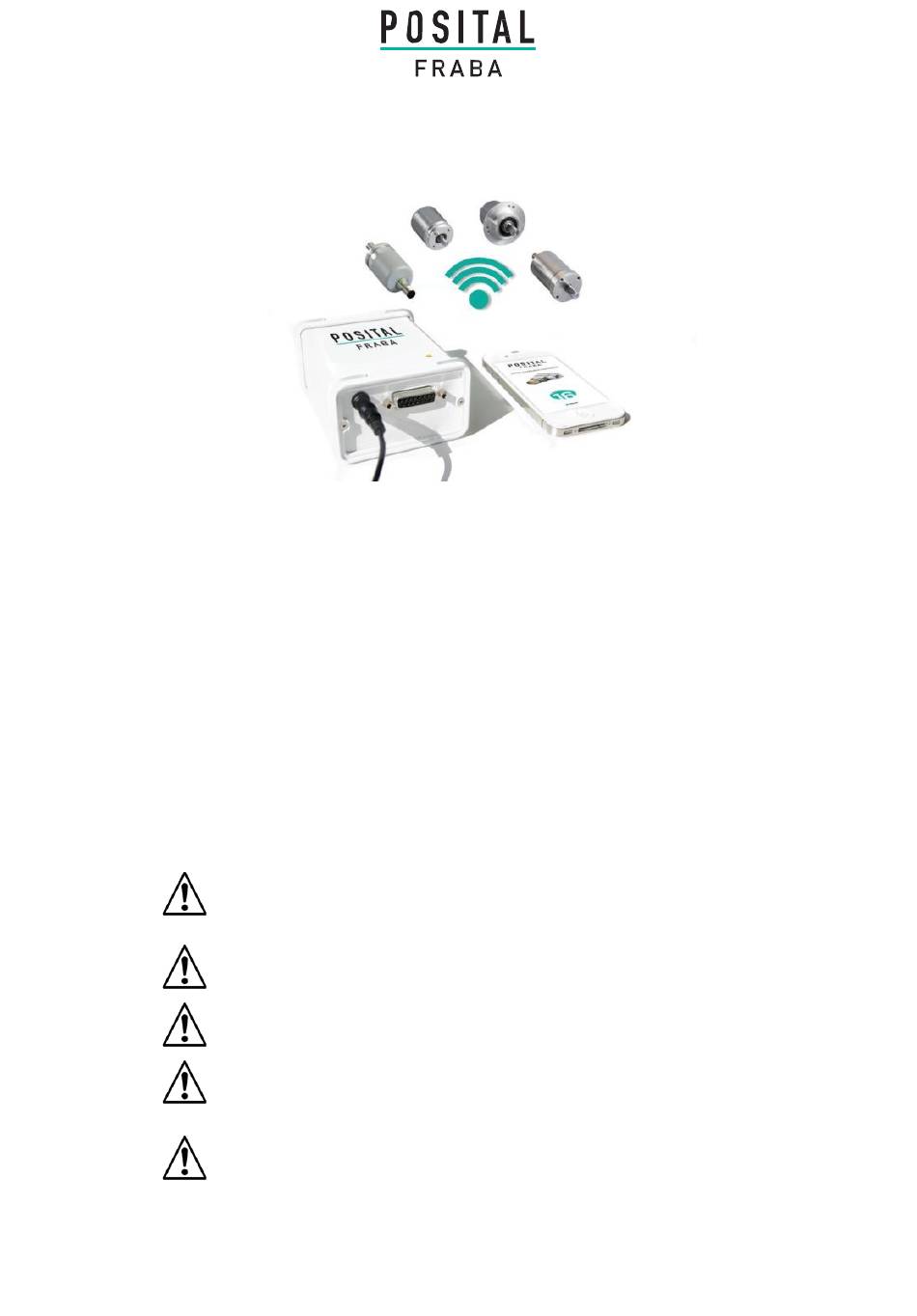

UBIFAST CONFIGURATION T OOL
INSTALLATION LEAFLET

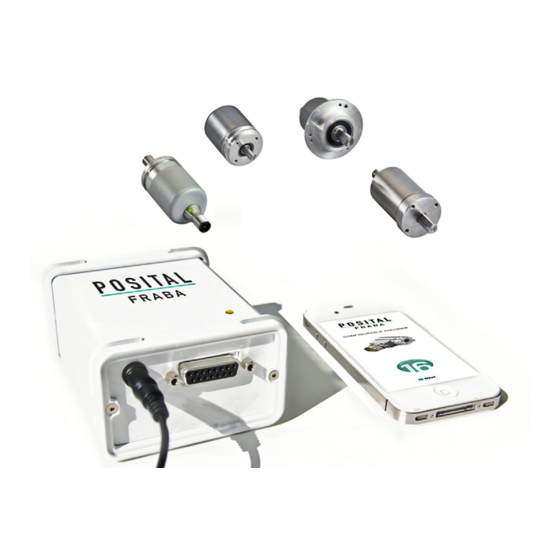

Thank you for purchasing our UBIFAST Configuration Tool. The UBIFAST Configu-
ration Tool is used to configure the parameters of POSITAL's IXARC programmable
encoders through a simple browser based programming interface. Please read this
leaflet thoroughly and carefully before installation and using the device.
UBIFAST Configuration Tool Includes
▪ UBIFAST Configuration Tool
▪ Terminal block adapter to connect encoders with cable exit or to build your own
connecting cables
▪ 12 VDC Power Adapter, Input 100 to 240V AC, 47 to 63Hz and interchangeable
plugs for Europe, UK, US, India, Brazil, China, Argentina, Australia, Korea
Safety Notes
Recommended to use power adapter provided by POSITAL. In case of
replacement, check for compatible supplies with same voltage and current
rating (12 V / 1 A)
Do not remove the Micro -SD card or the Wi-Fi USB Adapter from the
configuration box
Do not connect or disconnect the encoder when device is under power
Do not connect any other devices to unused USB or RJ45 ports on
the Configuration Tool
Do not close browser or webpage when configuration is in
progress
www.posital.com
1
V 20200115
Advertisement
Summary of Contents for Posital Fraba UBIFAST
- Page 1 UBIFAST CONFIGURATION T OOL INSTALLATION LEAFLET Thank you for purchasing our UBIFAST Configuration Tool. The UBIFAST Configu- ration Tool is used to configure the parameters of POSITAL‘s IXARC programmable encoders through a simple browser based programming interface. Please read this leaflet thoroughly and carefully before installation and using the device.
- Page 2 UBIFAST CONFIGURATION T OOL INSTALLATION LEAFLET Encoder Connection to the UBIFAST Configuration Tool ▪ Adapter cable for encoders with standard POSITAL Pin assignment and connector ▪ Terminal block adapter to connect encoders with cable exit or to build your own...
-
Page 3: Diagnostic Leds
▪ Enable Wi-Fi on your device (smart- phone, tablet, laptop or computer) and connect to the configuration hotspot “POSITAL Configuration Tool” with password “ubifast14” ▪ Once connected, open a web browser and go to ubifast.fraba/WebApp/ (Bookmark this link for easier access later on) V 20200115... - Page 4 LAN network or Cellular Data networks ▪ After 3 minutes of inactivity the UBIFAST box shall time out and the programming needs to be restarted from the beginning. The message “Session has timed out“...
- Page 5 (manual configuration) or replicating an existing configuration - When Auto Configure is selected the UBIFAST checks for the last know configuration (within 24 hrs) stored on the same UBIFAST device for the same encoder type - Parameter Values are preset from this saved...
- Page 6 UBIFAST CONFIGURATION T OOL INSTALLATION LEAFLET 2. For Hybrid (SSI + Incremental) the following parameters are programmable Incremental Parameters (INC) Configure: ▪ Pulses Per Revolution (PPR) – Any value between 1 and 16384 pulses ▪ Incremental Pulse Direction – Choose „A before B“...
- Page 7 UBIFAST CONFIGURATION T OOL INSTALLATION LEAFLET 3. For Analog Programmable the following parameters are programmable Configure: Output Direction – Clockwise Up or Clockwise ▪ Down ▪ Analog Interface 0-10V or 0.5-9.5V 0-5V or 0.5-4.5V 4-20mA ▪ Measurement Range in Degree Min – 22.5 degree to Max 23592600 degree ▪...
- Page 8 UBIFAST CONFIGURATION T OOL INSTALLATION LEAFLET Step 4: Verification / Completion ▪ Verify configuration status ▪ If successful Press “Send” to draft an email to be sent to POSITAL - on availability of Internet on the device being used. (Note: The data is confidential and stored in our secure database) - Press “Restart”...
- Page 9 UBIFAST CONFIGURATION T OOL INSTALLATION LEAFLET Linear to Rotary Converter All Configurable Devices now has a Linear to Rotary Converter User Input Values (Depends on Encoder Interface) ▪ Units Used: Select between mm or inch ▪ Length per Revolutions: Input based on...
- Page 10 UBIFAST CONFIGURATION T OOL INSTALLATION LEAFLET User Notes _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ ______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ _______________________________________________________ V 20200115...
