Summary of Contents for Esse Vector

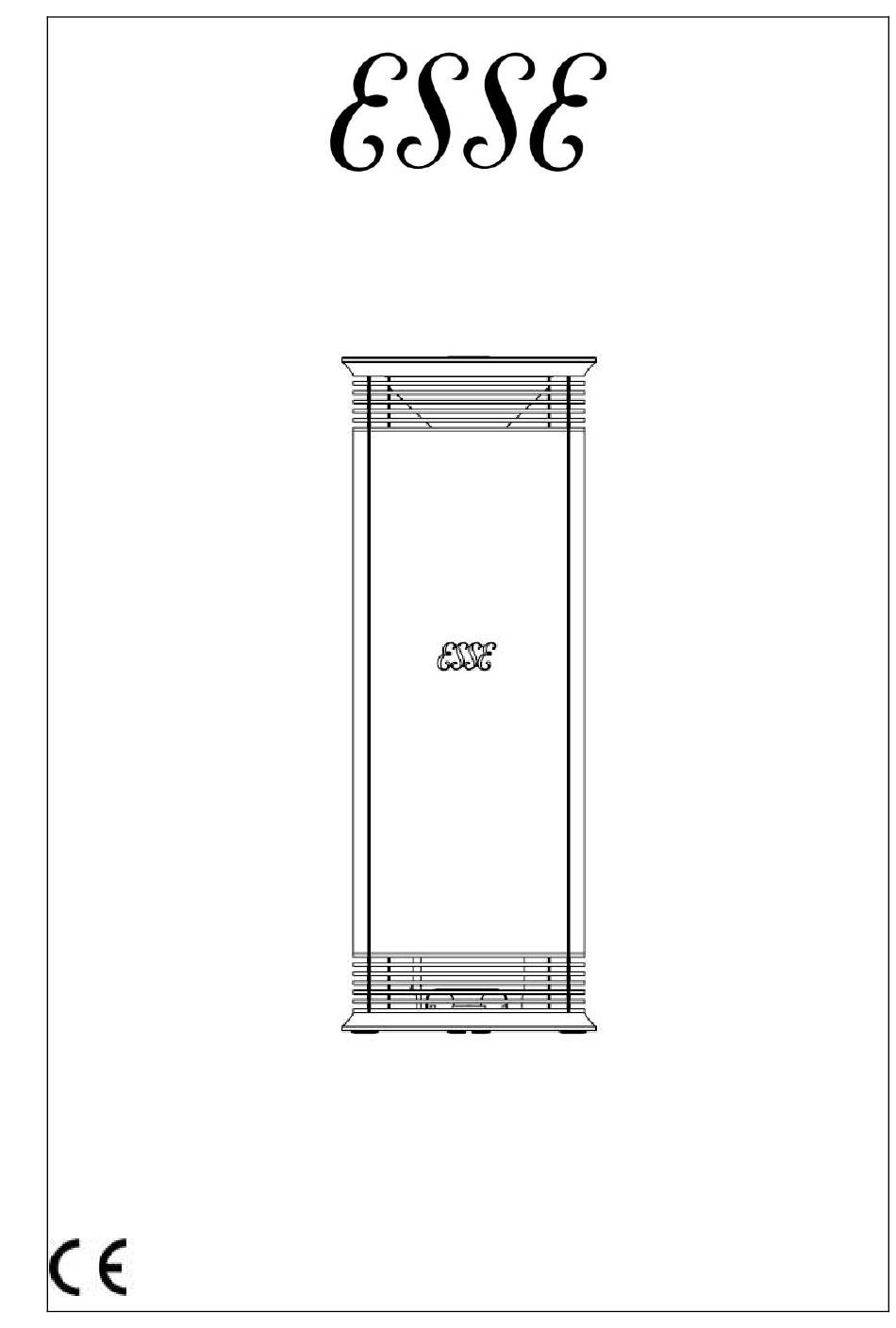

- Page 1 Vector 2kw Electric Heater USER INSTRUCTIONS UK & IRELAND This product is only suitable for well insulated spaces or occasional use Serial Number:____________________...
-
Page 2: Table Of Contents
CONTENTS General Safety Notes Page 2 Cleaning Page 6 Electrical Connection Page 3 Trouble Shooting Page 6 Technical Data Page 3 Guarantee Page 7 Operating Instructions Page 4 GENERAL SAFETY NOTES This appliance is not intended for use by persons (including children) with reduced physical, sensory of mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. -
Page 3: Electrical Connection
Before inserting the plug into an electrical outlet, (check carefully) to be certain that the voltage indicated on the appliance, socket and main feed are of a size sufficient to power this appliance. TECHNICAL DATA Fig.1 Esse Vector data plate The data plate is located on the base of the appliance. Page 3 VEC-I01-120118... - Page 4 Model Identifier Vector Item Value Unit Type of heat Heat Output input Manual heat Nominal charge control, Heat with integrated Output thermostat Minimum heat output N.A. (indicative) Maximum continuous heat output Auxiliary electricity consumption Type of heat At nominal output / room...
- Page 5 Dimensions Page 5 VEC-I01-120118...
-
Page 6: Operating Instructions
This appliance is intended for domestic premises only. This appliance is intended for indoor use only. Once connected to the mains and switched on at the socket, the Vector is controlled via the energy regulating control knob located on the top. - Page 7 As the control is rotated it regulates the power to the heater Fig.3 Esse Vector Control from 0 to 2kw as indicated by the circular markers OFF Position The LED lighting system will illuminate as the heater control is activated.
-
Page 8: Cleaning
POWER USAGE The power usage of the Vector electric heater are shown below: Temperature KWh Used per Setting Hour 0.18 0.255 0.39 0.564 0.909 1.759 BOOST (7) 2.000 CLEANING Disconnect the heater from the mains and allow it to cool, before cleaning. -
Page 9: Guarantee
We will assess the nature of the complaint and either send replacement parts for your dealer to fit, or arrange for an ESSE engineer to inspect the appliance and carry out any work that may be deemed necessary. - Page 10 Page 10 VEC-I01-120118...
- Page 11 Page 11 VEC-I01-120118...
- Page 12 ESSE Engineering Limited, Ouzledale Foundry, Long Ing, Barnoldswick, Lancashire BB18 6BJ Tel. 01282 813 235, Fax: 01282 816 876 Website and On-line Store http://www.esse.com Page 12 VEC-I01-120118...
