Jumbo Remote Upgrade Installation Instructions
Before you attempt to disassemble your Jumbo remote
Control, please be aware that the upgrade is specific
to the Innovage Jumbo Remote, shown in Fig.5 below. If
your board is different, there is no guarantee that the
board and software will work.
You should have the proper tools in order to do the
installation. These include:
1. Plastic Prytool for tablets or mobile phones
sometimes referred to a spudger.

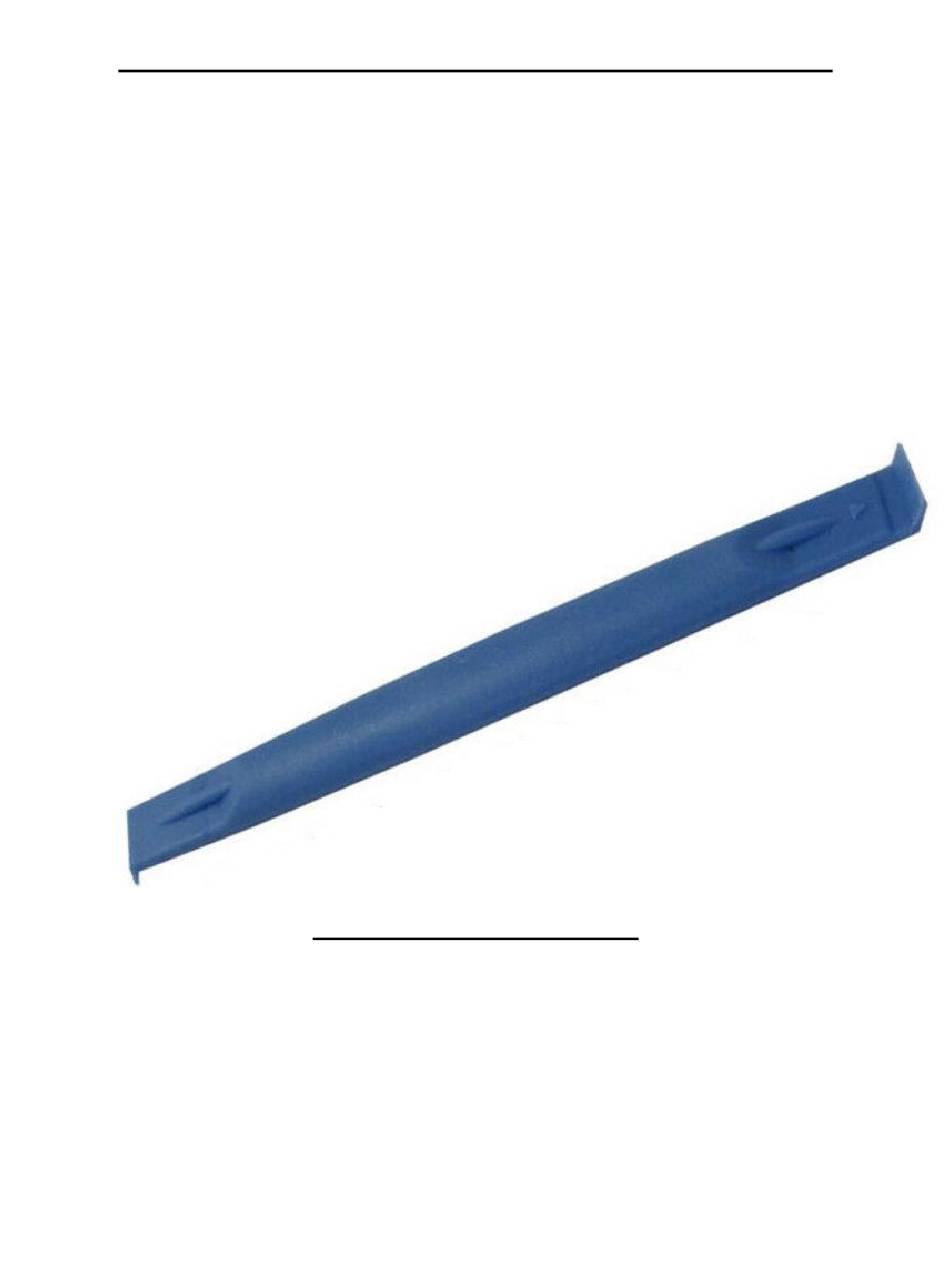

Fig.1 Plastic Prytool
This tool will allow you to open the remote without
damaging the tabs and marking the shell.
Advertisement
Related Manuals for Innovage Jumbo
Summary of Contents for Innovage Jumbo
- Page 1 Before you attempt to disassemble your Jumbo remote Control, please be aware that the upgrade is specific to the Innovage Jumbo Remote, shown in Fig.5 below. If your board is different, there is no guarantee that the board and software will work.
- Page 2 2. Soldering equipment. A de-solder pump tool. Fig.2 De-solder Pump Tool This tool is necessary in order to remove the cable from the old circuit board. A good soldering iron and lead free solder is also necessary. (and most of all, very good eye sight)
- Page 3 3. A square file for filing the programming access hole. Fig.3 Square File...
- Page 4 Step 1. Opening the Remote Control Remove batteries and the 6 screws shown in Fig.4 below. Fig.4 Removing Screws...
- Page 5 Step 2. Remove the two screws. Fig. 5 Remove the Screws Step 3. De-soldering the wires and the cable. You will be removing the small board. In order to do this, you must carefully de-solder the black and red wires (ground and power) and the cable that connects to the keypad circuit board.
- Page 6 Inspect the cable. Ensure that the wires are straight and not frayed. This is important as you will see it is challenging to re-install the cable on the new board. If necessary, tin each wire with solder. If there are strayed wires, they may short on the adjacent wire causing the keypad to malfunction.
- Page 7 Step 4. Install the new board. Do not connect the RED and Black wires at this time. Carefully solder the cable to the new board. Inspect every wire in the cable. You can use an ohmmeter here to check your soldering and for shorts.
- Page 8 Step 5. Drilling the Programming Access Hole. Carefully measure and mark the hole with a pencil. Drill the hole according to the specifications below. Fig.10 Drill the Programming Access Hole A = 18 mm B = 72.5 mm C = 44 mm D = 6 mm Now use a square file to fine tune the access hole to the dimensions above.
- Page 9 You may need to make the hole bigger if you are using a larger programming connector like this one: Fig.11 6 Pin Programming Connector Now you can solder the red and black wires to the new board. The new board is marked “+” for the red wire and “-“...
