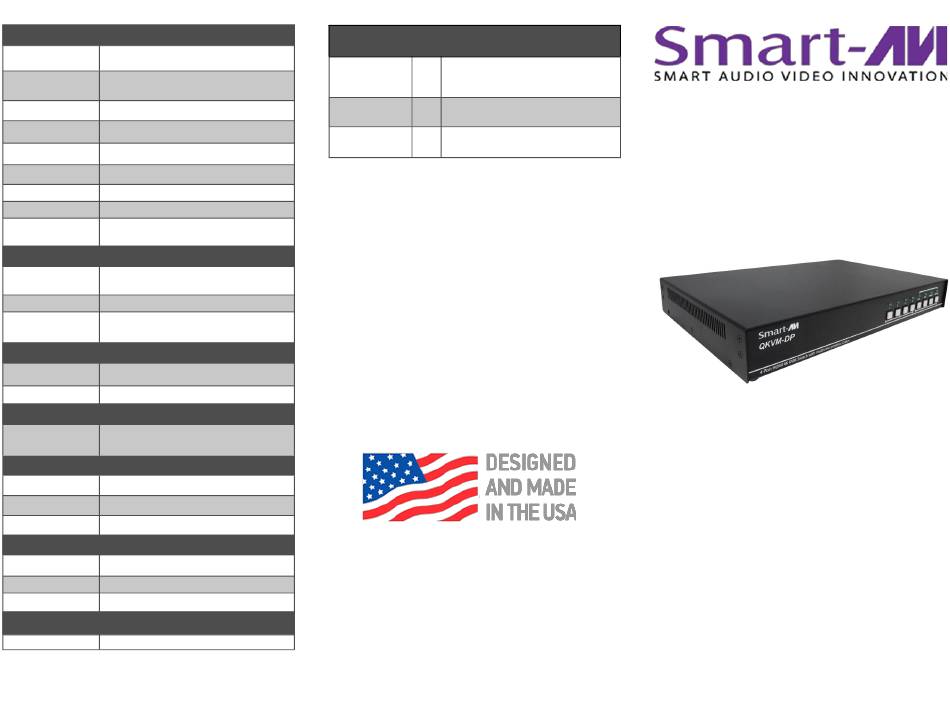

SmartAVI QKVM-DP Quick Start Manual

TECHNICAL SPECIFICATIONS
VIDEO
DP
Format
Maximum Pixel
Single-link 340MHz [10.2Gbps]
Clock
Input Interface (4) DP
Output Interface DP
Resolution 800 x 600 up to 3840 x 2160
5 volts p-p (TTL)
DDC
Input Equalization Automatic
Input Cable Length Up to 20 ft.
Output Cable
Up to 20 ft.
Length
USB
Signal Type USB 2.0, 1.1, and 1.0
Input Interface (4) USB Type B
(2) USB 1.1 Type A for KVM Devices
Output Interface (2) USB 2.0 Type A Transparent
AUDIO
Input (4) 3.5 mm Stereo Audio
Output (1) 3.5 mm Stereo Audio
POWER
Power Require-
External 100-240 VAC/12VDC3A @ 36W
ments
ENVIRONMENT
Operating Temp 32° to 104° F (0° to 40° C)
Storage Temp -4° to 140° F (-20° to 60° C)
Humidity 0-80% RH, non-condensing
CONTROL
Front Panel Push Buttons with LED indicators
RS-232 Via Serial @ 115200 bps
Hot Keys Via Keyboard
OTHER
Emulation Keyboard, Mouse and Video
WHAT'S IN THE BOX
PART NO. QTY DESCRIPTION
4-Port DP, USB 2.0 KVM Switch with
SM-QKVMDP-S 1 Multiview Preview Screen and Audio
Support.
12V DC, 2A power adapter with
PS12VD3A 1
center-pin positive polarity.
1 Quick Start Guide
NOTICE
The information contained in this document is subject
to change without notice. SMART-AVI makes no war-
ranty of any kind with regard to this material, includ-
ing but not limited to, implied warranties of merchant-
ability and fitness for particular purpose. SMART-AVI
will not be liable for errors contained herein or for
incidental or consequential damages in connection
with the furnishing, performance or use of this materi-
al. No part of this document may be photocopied,
reproduced, or translated into another language with-
out prior written consent from SMART-AVI, Inc.
Toll Free: (800) AVI-2123
Phone: (702) 800-0005
2455 W. Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
smartavi.com

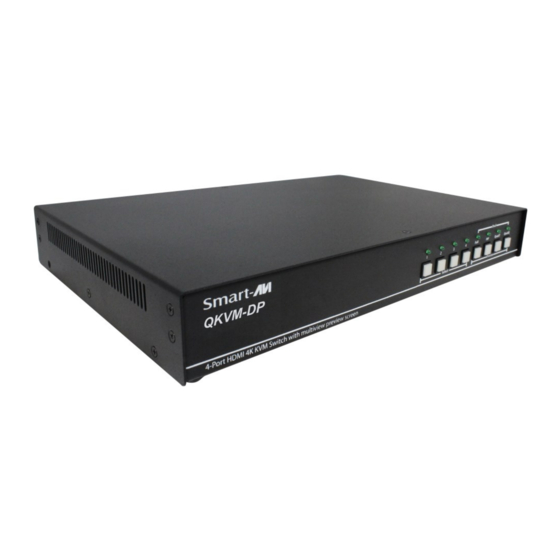

QKVM-DP
4x2 Multiviewer KVM switch
ULTRA-HD QUADRUPLE VIEW KVM
SWITCH 4-PORT DP, USB 2.0 KVM
SWITCH WITH MULTIVIEW PREVIEW
SCREEN TO VIEW ALL 4 VIDEO
SOURCES SIMULTANEOUSLY
Quick Start Guide
A full Manual can be downloaded from
www.smartavi.com/QKVM-DP/
