Market Central 51-01198 User Manual

Secure/nonsecure led sign
Hide thumbs
1
2
3
4
5

Advertisement

Table of Contents

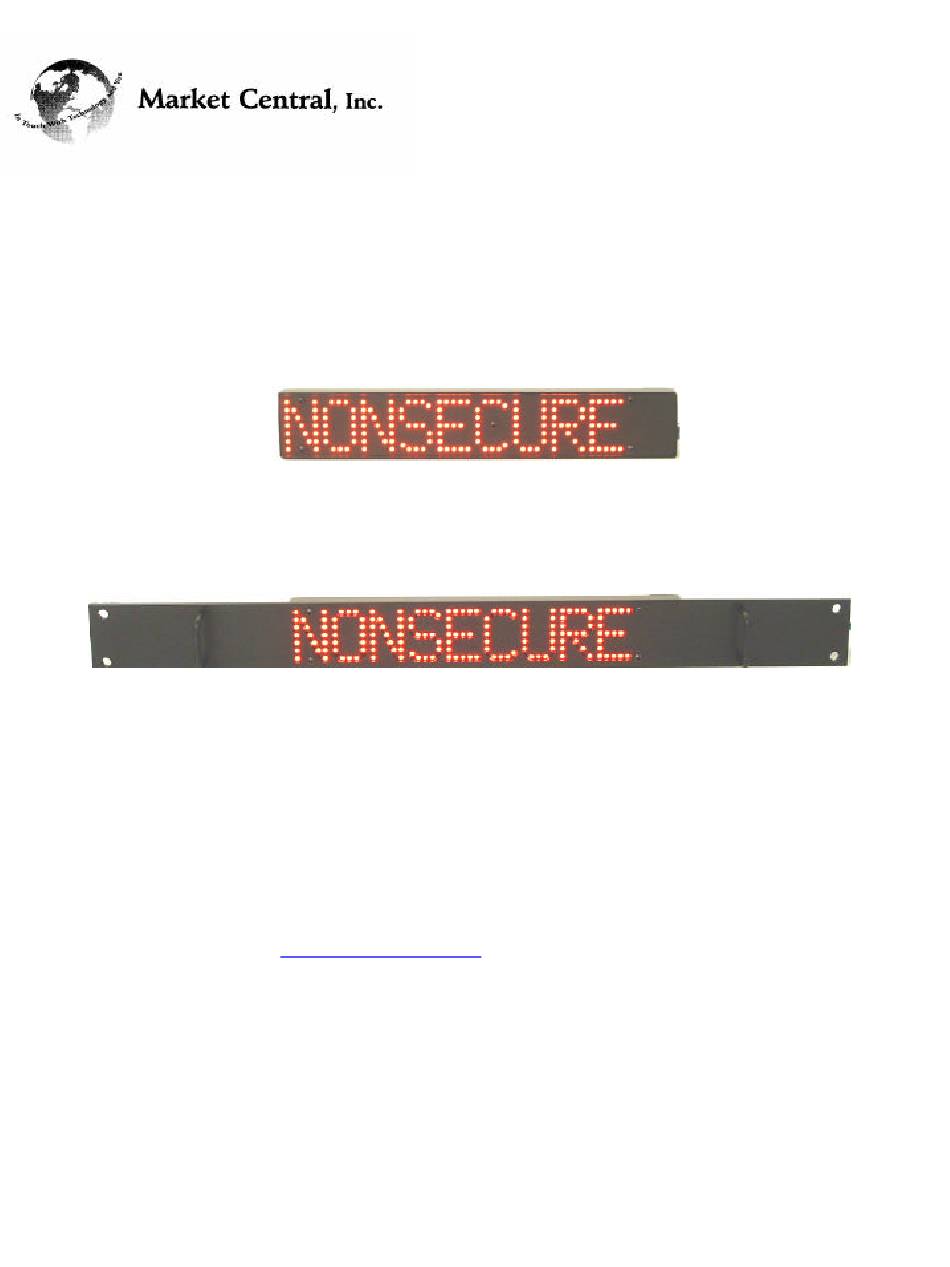

SECURE/NONSECURE
LED SIGN USER MANUAL
December 2012
Wall Mount Part Number: 51-01198
1U Rack Mount Part Number: 51-01196
19 North Main Street, Houston, PA 15342
Phone: (412) 494-2800, Fax: (412) 494-5550
www.secureswitch.com
CAGE Code 1BGJ7
© Copyright 2012. Market Central, Inc. All rights Reserved.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 51-01198 and is the answer not in the manual?

Questions and answers

Summary of Contents for Market Central 51-01198

  • Page 1 LED SIGN USER MANUAL December 2012 Wall Mount Part Number: 51-01198 1U Rack Mount Part Number: 51-01196 19 North Main Street, Houston, PA 15342 Phone: (412) 494-2800, Fax: (412) 494-5550 www.secureswitch.com CAGE Code 1BGJ7 © Copyright 2012. Market Central, Inc. All rights Reserved.
  • Page 2 1. Specifications Power: 12 VDC @ 400 mA max from included desktop style 100-240 VAC input 12 VDC output supply. Size: Wall Mount Version - 1.7”H x 9.9”W x 0.7”D Rack Mount Version - 1.74”H x 19.0”W x 1.825”D Weight: 1 lb including external power supply Connectors : (2) RJ45 connectors - one side entry connector and one rear entry connector wired in...
  • Page 3 Using an RJ45 cable, connect the positive output from the 12VDC supply to either pin 4 or 5 on either the side or rear RJ45 connector of the sign. To illuminate the word "SECURE" connect either pin 1 or 2 on either RJ45 connector to the ground output of the power supply.
  • Page 4 As a second example, if your application requires the sign to display the word "NONSECURE" when port A is selected and to display the word "SECURE" when the SecureSwitch has either port B or port C selected, simply connect the two "B" contacts in parallel to the two "C"...
  • Page 5 If any failure to conform to this warranty becomes apparent during a period of one (1) year after date of sale, Market Central shall, upon prompt, written notice and compliance by the customer with such instructions as it shall give with respect to the return of defective products or parts, correct such non-conformity by repair or replacement of the defective part or parts.

This manual is also suitable for:

51-01196
