Summary of Contents for BrightLife Smart PIR Motion Detector

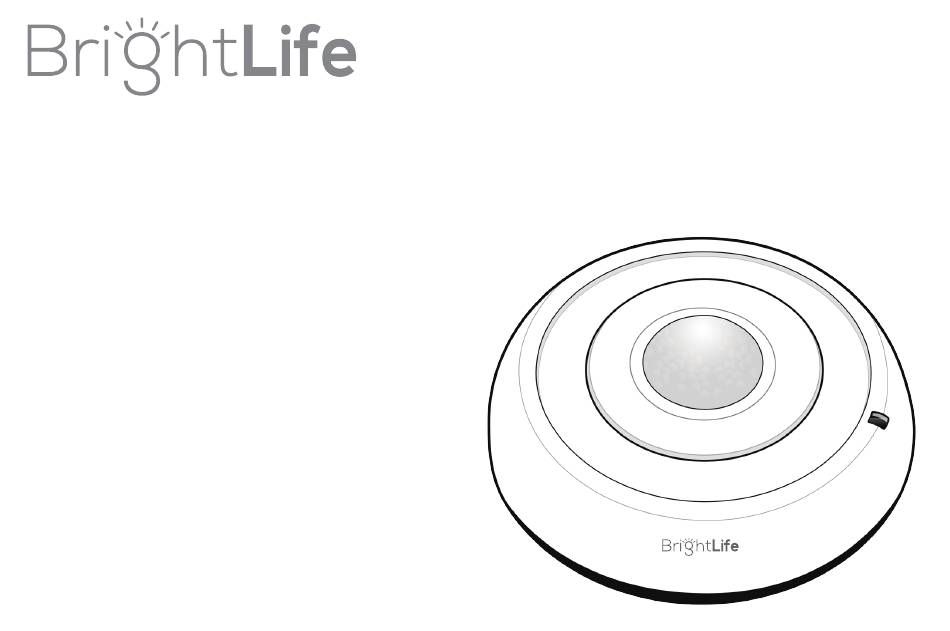

- Page 1 User Manual Smart PIR Motion Detector BrightLife www.sa-brightlife.com BrightLife is a registered trademark of Circuit Cells Co. www.ccc-ksa.com...
-
Page 3: Table Of Contents
Content Federal Communications Commission (FCC) Compliance Notice Federal Communications Commission (FCC) Caution Federal Communications Commission (FCC) Radiation Exposure Statement Welcome to use BrightLife Product Display Features Mobile Application Installation Instructions Operation Preparation (Option 2 camera gateway) Installation Instructions Important Dimensions... -
Page 4: Federal Communications Commission (Fcc) Compliance Notice
Federal Communications Commission (FCC) Compliance Notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. -
Page 5: Federal Communications Commission (Fcc) Caution
Federal Communications Commission (FCC) Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference. - Page 6 Using this document does NOT give the user the authority/right to copy all or part of the contents of this manual, without the written consent of BrightLife. Any illegal or unauthorized use of this document or its content including BrightLife logo and trademarks, will be pursued according to law.
-
Page 7: Product Display
Product Display Multi-functional Key System Indicator Magnet Detection Area Battery Compartment Base Back view Front view... -
Page 8: Features
BrightLife in a form of a complete security system. ● This product can be used as a trigger to execute tasks and control behavior of other BrightLife products linked to the same gateway. ●... -
Page 9: Mobile Application
Mobile Application In order to configure and use this product, you will need to download “BrightLife in Hand” mobile App. The application is available for both iOS and Android platforms. You search for the application in the online store, or, you can visit www.sa-brightlife.com and... -
Page 10: Installation Instructions
Installation Instructions Recommended: for better performance, it is highly recommended for this product to be ceiling mounted (not higher than 4 meters). Option 1: Place it on any fixed flat surface Option 2: Installation on a wall or ceiling (will require using a power drill) Step 1: Mount two screw support plugs in the desired location of the wall/ceilings. -
Page 11: Installation Instructions
Installation Instructions Option 2 Step 2: Open the battery cover and insert a CR2 battery. CR2 battery Cell Cover Back of Body... - Page 12 Operation Preparation (Option 2 camera gateway) Option 2 Step 3: Attach the body directly to the base and adjust it to a suitable angle to complete the installation. Important: Complete the steps related to network configurations before installation is completed. Wall/Ceiling...
- Page 13 Installation Instructions Connectivity scenario When the sensor is set to “Armed” in the Mobile App, the System Indicator Light on the sensor will blink RED whenever motion is detected in the detection area. At the same time, the Mobile App will show an alarm notification.
- Page 14 Installation Instructions Join Zigbee Network Quickly click the Multi-functional Key 4 times. The System Indicator Light will blink green to request the add to the ZigBee network then will go OFF after blinking green for 2 seconds. Joining Zigbee network will be completed once the light is OFF. Flash in searching for the network Click Multi-functional Key 4 times Goes out after staying on for 2s...
- Page 15 Installation Instructions Exit Zigbee Network Long press the Multi-functional Key for 10s. When released, the System Indicator Light will blink 4 times and then goes OFF indicating that exit ZigBee network was successful. Press on for 10s Goes out after flashing 4 times Back of Body Front of Body...
-
Page 16: Important
Important ● Make sure ZigBee network indicator light of the wireless gateway (purchased separately) is blinking. ● Make sure this product is connected to power and is placed within the effective communication distance of the gateway. If remote control is needed, connect the gate to the internet. ●... -
Page 17: Dimensions
Dimensions ● This product shall be installed according to the height specified in the user manual. Installing the product too high or too low will cause adverse effect to the angle and distance of detection. Any furniture, potted plant and other partitions shall not be placed in a way blocks the desired detection area. -
Page 18: Specifications
Specifications Communication Protocol IEEE 802.15.4 ZigBee/SmartRoom Detection Range Circumference with 6m of Diameter ( Installation Height 3m) Detection Sensitivity Once Detection Speed 0.2 ~ 3.5m/s Standby Consumption/ 30μA Standby Current Mounting Height (m) 2.3-5 Power Supply CR2*3V Dimensions 64×38 (Diameter×Height, mm) Net Weight (g) Material &... -
Page 19: Purchase Information
Purchase Information Product Name Smart PIR Motion Detector Part Number BLSESEMODC-0-01-008-04 Material/Color PC+ABS, White... - Page 20 Statement: BrightLife, declares that this device is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/CE. Disposal and Recycling Information You can help protect the environment! Please remember to respect the local regulations, and in the non-working electrical...
- Page 21 BrightLife Email: info@brightlife.com - www.sa-brightlife.com Circuit Cells Co. P.O. Box 6709, Riyadh 12281 BrightLife is a registered trade mark of Circuit Cells Co. All rights reserved ®...
