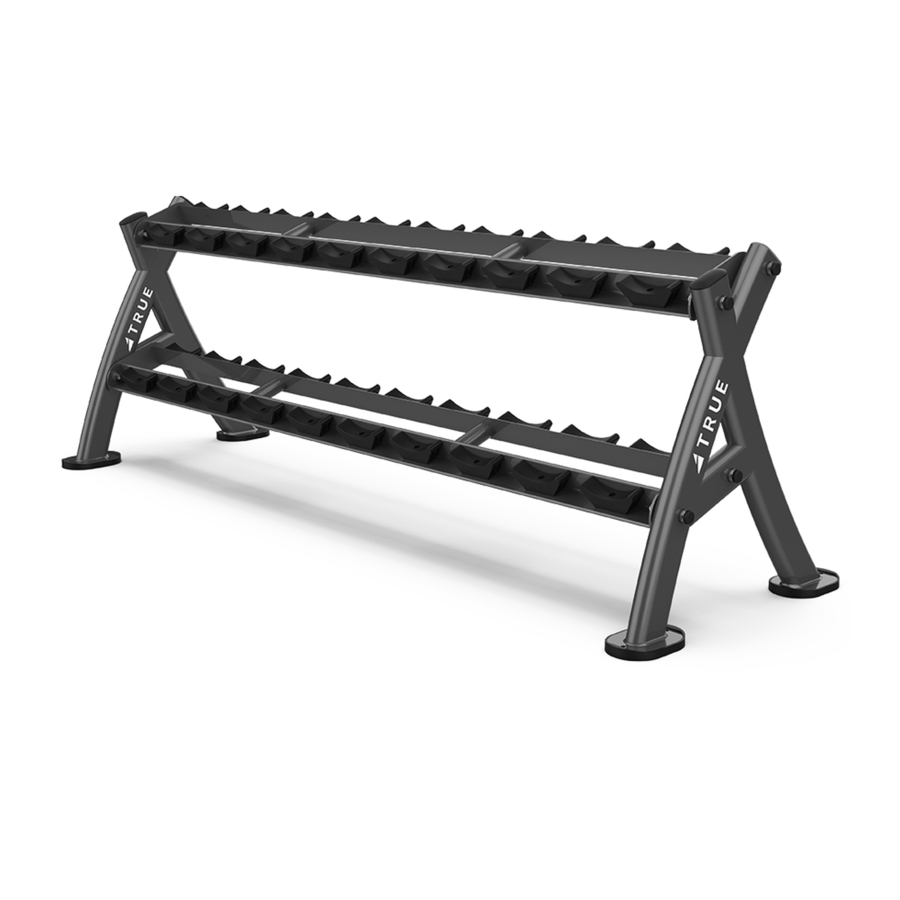

- Page 1 XFW4700 Dumbell Rack OWNER’S MANUAL Model # XFW4700 Revision 091418...
- Page 2 For your convenience, product questions can be answered by an Authorized Paramount Dealer or by contacting a TRUE Fitness Customer Service Representative at: 1-800-883-8783 or 1-800-721-2121 Office hours are Monday-Friday, 8:00 am - 5:00 pm CST Or email us at service@truefitness.com or paramountservice@truefitness.com...
-
Page 3: Table Of Contents
ABLE ONTENTS ......................AFETY ..............ENERAL ARE AND AINTENANCE ............... ENERAL NFORMATION ......................SSEMBLY ....................ARTS IAGRAMS ......................ARRANTY... -
Page 4: Safety
AFETY ACILITY AND AFETY RECAUTIONS 1. Review and understand all of the warning labels affixed to this machine and on the facility safety sign. 2. Be certain that the machine operation is understood before it is used. Refer to the instructional Procedure Label affixed to the machine. - Page 5 AFETY 12d. This equipment is designed for standard olympic size weight plates with a 50mm bore (1.9”). 12e. Do not exceed the maximum weight capacity of the machine. Maximum plate size is 45 lbs. (25 kg.). 13. On Selectorized and Cable equipped machines: 13a.
- Page 6 AFETY AINTENANCE AFETY RECAUTIONS 1. Refer to Maintenance Schedule label on the machine as well as this manual for when to perform maintenance. 2. Check the function of your machine DAILY by verifying the following: • Inspect cables and end fittings for any signs of wear. Replace if worn, frayed or damaged with original Paramount replacement components.
-
Page 7: General Care And Maintenance
13. Be sure all hardware is tight before using the machine. Retain these instructions for future reference. If you have any questions, do not hesitate to contact your Paramount dealer or TRUE Fitness at (800) 883-8783 or (800)721-2121 or service@truefitness.com or... -
Page 8: General Rack Information
ENERAL NFORMATION Shown below are the individual carton contents for the XFW-4700 dumbbell rack system. Carton requirements will vary depending upon the model that you have purchased. See the table below to determine the requirements for your unit. Carton: XFW47-1 - Side Frame (qty. - Page 9 ENERAL NFORMATION This rack is designed to accommodate dumbells with a minimum spacing of 5-1/4” (133 mm) as shown below. Side Frame Dimensions Tool Requirements: (2) 3/4” Wrenches or Ratchet and Socket...
-
Page 10: Assembly
SSEMBLY NSTRUCTIONS 1. Assemble the side frames and trays as HARDWARE CONFIGURATION FOR: LEFT & RIGHT SIDE FRAMES shown. DO NOT fully tighten hardware yet. 1, 2, 3, 4 NOTE: Be sure to correctly locate the thick SPACER WASHERS on the “tray” side of the frames. - Page 11 SSEMBLY NSTRUCTIONS 2. Make sure that the rack is in position and that all feet are contacting the floor. 3. DO NOT fully tighten each bolted connection yet. Tighten each bolt a little at a time, then move on to the next bolt. Verify that the feet are still in contact with the floor. Continue repeating this incremental tightening procedure until ALL bolts in the frame are fully tightened.
-
Page 12: Parts Diagrams
ARTS IAGRAMS BLACK 010BK TRUE... - Page 13 ARTS IAGRAMS...
-
Page 14: Warranty
Hours of operation 8:30am - 5:00 pm CST workmanship for a 10 years. The frame is warranted for labor and freight (for parts shipped from TRUE) for one year from date of purchase. * This limited warranty on structural frame does not include paint or coatings. - Page 15 DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. TRUE within 30 days of purchaser’s receipt of this Product. The serial number must be intact on the Product for this Limited Warranty to be valid.
