Sermatec Acrel ACR10R-D10TE4/C45 Installation

Acrel Three phase
Model : ACR1 0R-D1 0TE4/ C45
03

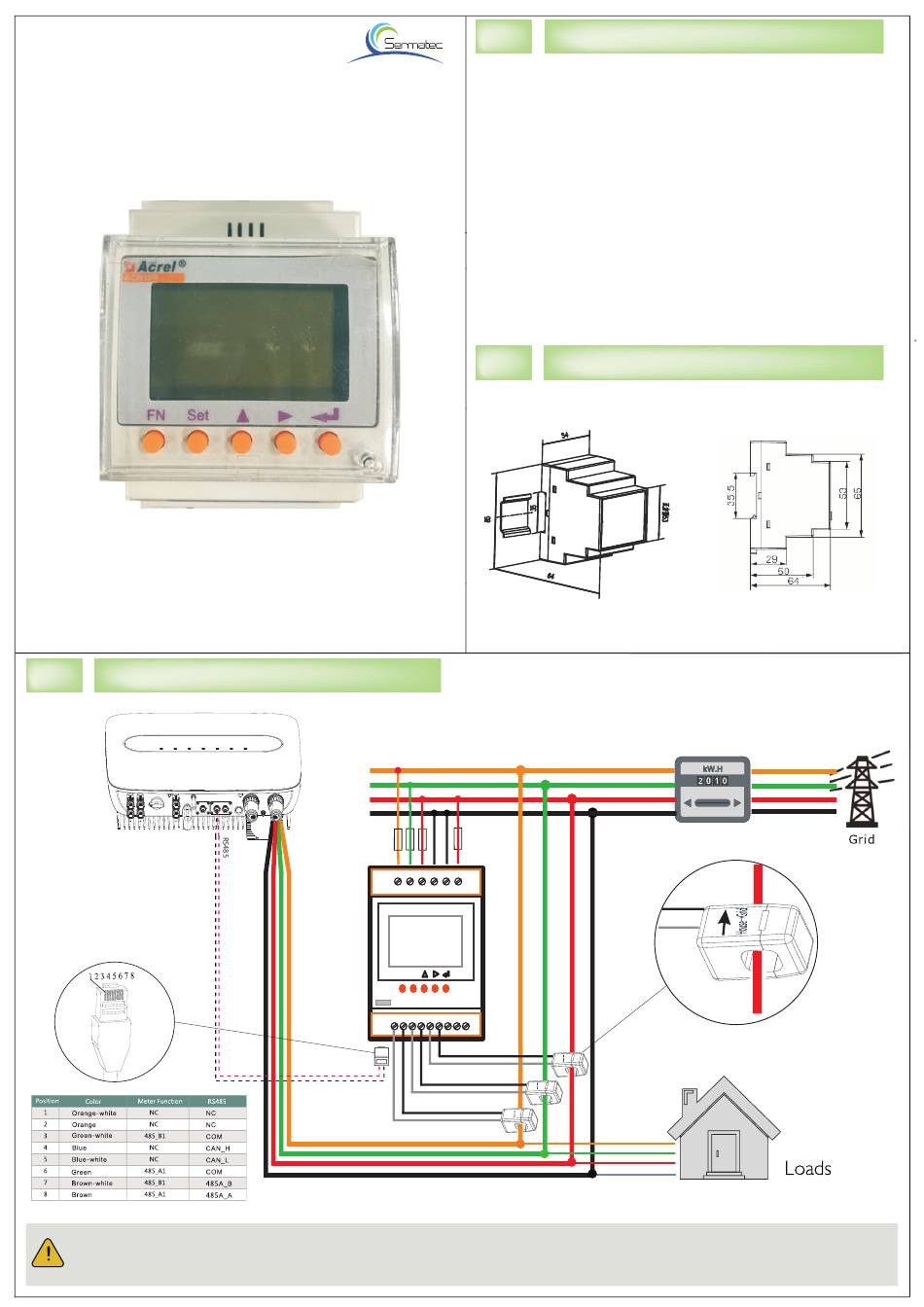

WIRING FOR THREE-PHASE METER
(1)Make sure AC cable is totally isolated from AC power before connecting Meter and CT.
(2)Incorrect connection or direction will cause incorrect data
Meter Installation
Fuse
0.5A
1 2 3
FN Set
Rs485
5 6 7 8
RS485
01

INTRODUCTION

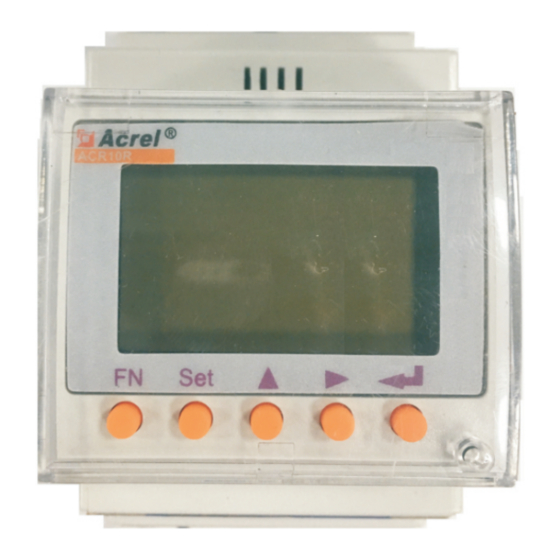

Acrel Smart Meter is designed with high precision
small dimensions, convenient operation and

installation.

It is available for both single-phase and three-phase
grid system connection to detect voltage, current,
power and energy.
Any fault or damage caused by misoperation or
disobeyal against the rules on manual is beyond
Acrel warrenty cover range.
NOTE:
Only suitable for RS485 cable connection on
RJ45 port of sermatec hybrid inverters.
INSTALLATION
02
(Model: ACR10R-D10TE4/C45
Fuse
3A
4 13 12
L(+) N(-)
L1 L2
L3 N
9 10 21 22 23
(Black)
S2
S1 (White)
S2
S1
S2
S1
.
)
L1
L2
L3
N
Main Meter
S2
(Black)
S1 (White)
