- Page 1 MANUAL v1.1 Distributed by TOPAG Lasertechnik GmbH | +49 6151 425978 | info@topag.de | www.topag.de MSTAGE MANUAL 4 AXIS TRANSLATION STAGE MSTAGE series Pitch...
-
Page 2: Table Of Contents
Table of contents Table of contents ............................ 1. Safety requirements ........................... 2. Features and advantages ........................3. What’s in the box? ................................4. Product description ..........................4.1.Mechanical specifications ............................. 5. Mounting ..................................... 5.1.Mounting holes ................................5.2.Mounting MEX motorised beam expander ........................ - Page 3 Claims will not be accepted and warranty repair will not be Optogama is not liable for damage or injury resulting directly carried out in case of improper use, incorrect service and or indirectly from use of this product for anything other than maintenance not according to product instructions.
-
Page 4: Safety Requirements
1. Safety requirements • All safety instructions must be followed. • All rules and regulations concerning the safe operation of lasers must be known and applied while installing and operating manual translation stage. • Even when wearing safety glasses avoid eye contact with direct or scattered laser light while assembling, installing and operating the device. -
Page 5: Features And Advantages

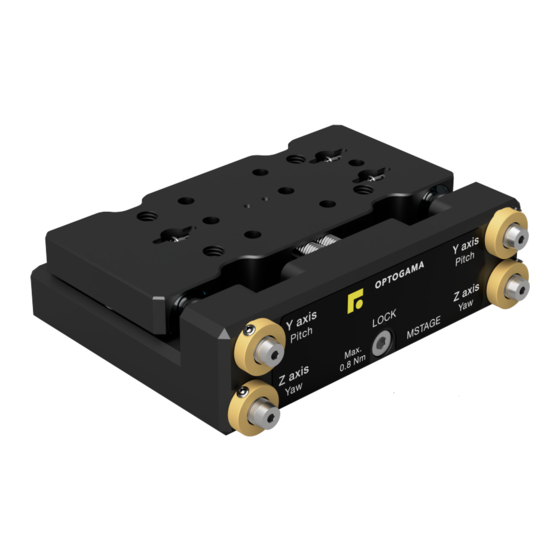

2. Features and advantages 4. Product description • Sapphire contact pads MSTAGE is an industrial 4-axis manual translation stage with locking mechanism. It has sapphire contact pads for • Platform’s locking mechanism prolonged accurate adjustment. • Industrial design There are four M6x0.25 microscrews for adjusting platform’s pitch, yaw, Y and Z axis. -
Page 6: Mounting
5. Mounting 5.2. Mounting MEX motorised beam expander 5.1. Mounting holes MSTAGE manual stage is suitable for MEX13, MEX18 MSTAGE is suitable for mounting any custom unit up to and MEX18-ACH motorised beam expanders. 1.5 kg when the manual stage is fixed horizontally and For expander mounting these steps must be followed: up to 0.6 kg when vertically. -
Page 7: Positioning The Stage
6. Positioning the stage MSTAGE has four M6x0.25 microscrews for adjusting platform’s pitch, yaw, Y and Z axis. Two microscrews control platform’s pitch and Z axis, while another two control yaw and Y axis. All of them can be adjusted with 2 mm HEX screwdriver. -
Page 8: Technical Drawings
7. Technical drawings... - Page 9 Distributed by TOPAG Lasertechnik GmbH | +49 6151 425978 | info@topag.de | www.topag.de...
