Summary of Contents for Phantos XMlite FS440

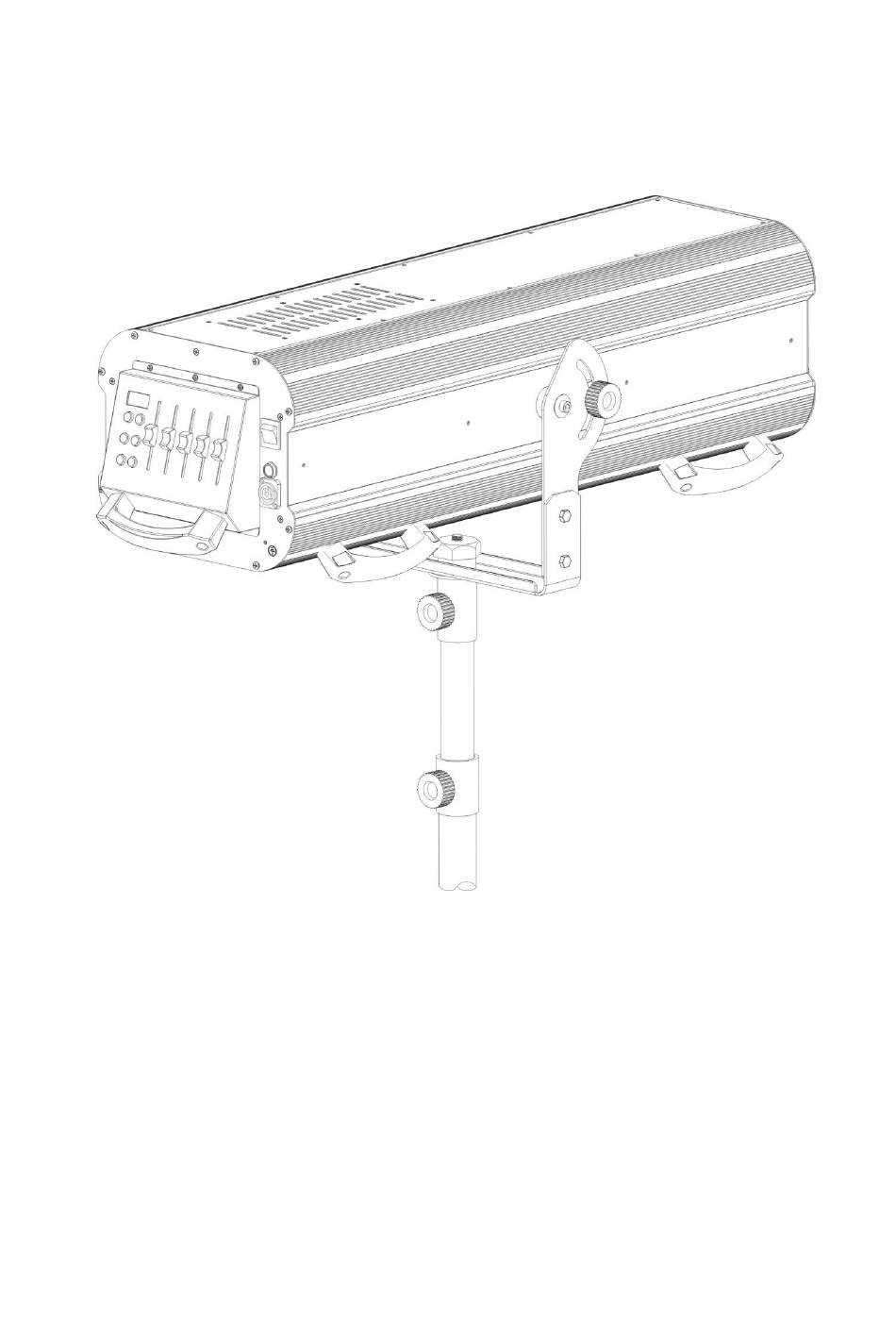

- Page 1 FOLLOW SPOT Weight：26KG Power：420W Color Tempreature：3200-6500K...
-
Page 2: Table Of Contents
Content 1.Content....................02 2.Caution .....................03 3.Dimension..................04 4.Product info..................05 5.Parts info..................06 6.Lamp change and replace....……………………....07 7. Control Panel.................. 08 Inside structure ................10 9. PCB....................10... -
Page 3: Caution
2 Caution 2.1, before installation, please check whether the mechanical fasteners for transport and loose, and do the regular maintenance. 2.2, to maintain voltage stability, otherwise easy to cause the lamp damage. 2.3, please check before the voltage is normal, it is not suitable for frequent switching power supply, power off, 2.4 You must need to wait for ten minutes to make a light bulb completely cooled again if need open again.. -
Page 4: Dimension
3.Dimension Colors 01 —white 02 —red 01 —6500K 02 —5600K 03 —yellow 04 —blue 03 —4300K 04 —3800K 05 —Green 06 —magenta 05 —3200K 06 —Frost... -
Page 5: Product Info
4.Product information 1.Technical Specifications Voltage : 200-240V/50-60Hz Lamp :YODN 15R 330W Lamp lifespan：1500hours Lamination output：4200lm Effect：13lm/w Equally：98％ Dimmer：linear dimmer Color wheel:5 color+ white Iris: can adjust Color temperature：3200-6500 color temperature +frost Focus：5-10 degree with focus IP20 Power：100-240V，50-60Hz, Total power：420W Light size：918x348x314mm Product weight：26kg Stand weight：6kg Flight case size：1022×... -
Page 6: Parts Info
5.Part information 01 —control panel 02 —handle 03 —stand handle 04 —light 05 —lens 5.1 Control panel 01 —display screen 02 —Channels rod 03 —Colors key 04 —Power switch 05 —Fuse 06 —Power input... -
Page 7: Lamp Change And Replace
6. Lamp model and replacement 1. Discharge the handle； 2.take apart the panel box 3.take part the lamp rear panel 4.take apart the screws for the lamp 5. use the screws driver to hold the metal. 6. discharge the power cable. -
Page 8: Control Panel
7. Control panel 1.Panel operation instruction When lamp off, press the red key for 3 seconds, the display show(on) for lamp on. When lamp on, press the white key for 3 seconds, the display show(OFF) for lamp off. When lamp off, please wait about 10 minutes if need lamp on.(better for the Lamp life.) COLOR TEM ：Color temperature adjust from 6500K-3200K，to the top is the wash. - Page 9 2. Menu Operation Blue Key: Save the update set and back to the main menu White Key: Down(or +),can plus continually if press after 1 second Red Key: Up(or -), can minus continually if press after 1 second Yellow key: Back to the menu(not save the data) Menu item Selection...
-
Page 10: Inside Structure
Inside structure 01 —Lamp socket 02 —Fan 03 —Driving board 04 —Focus module 05 —Slide bar 06 —zoom module 07 —belt 9. PCB...
