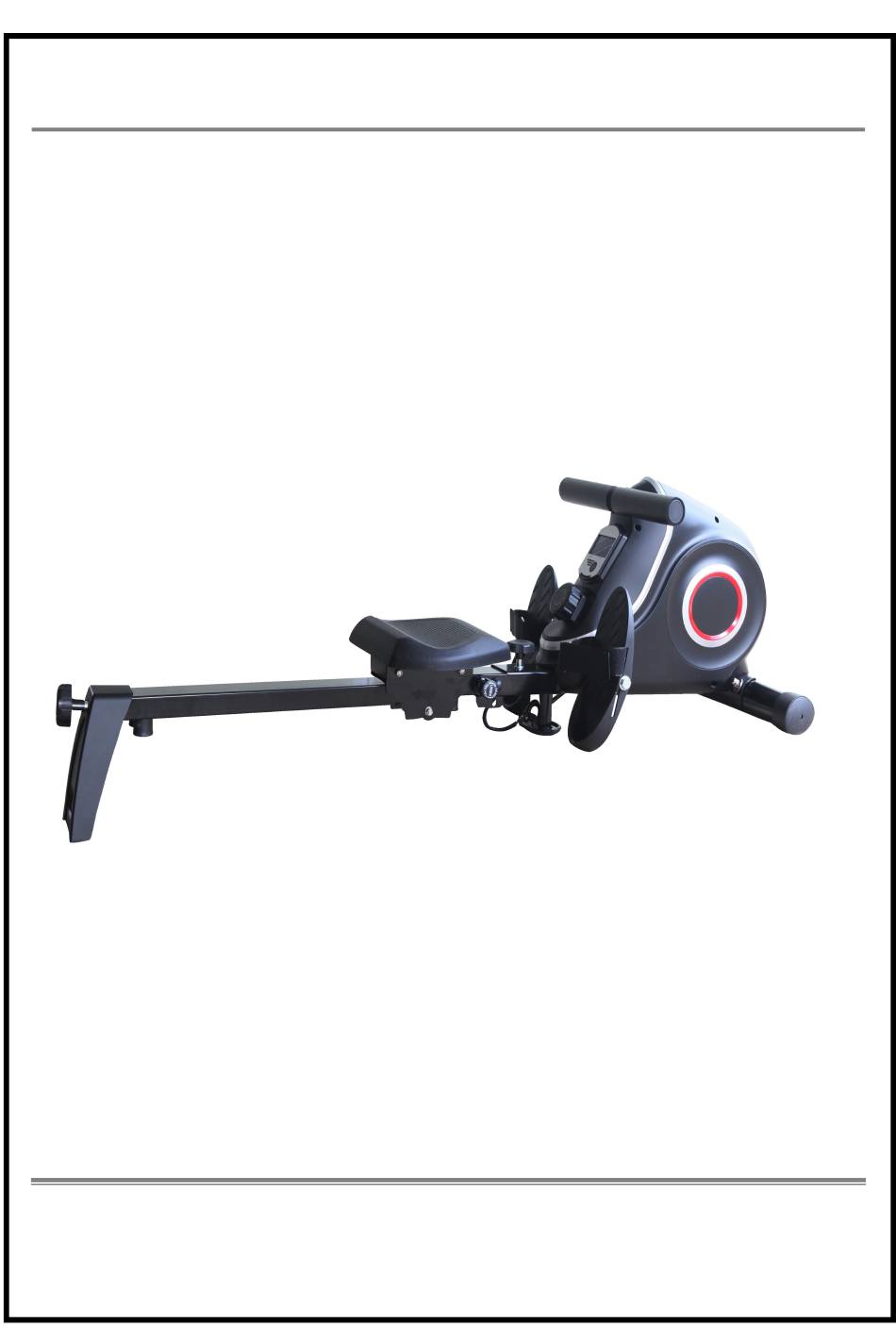

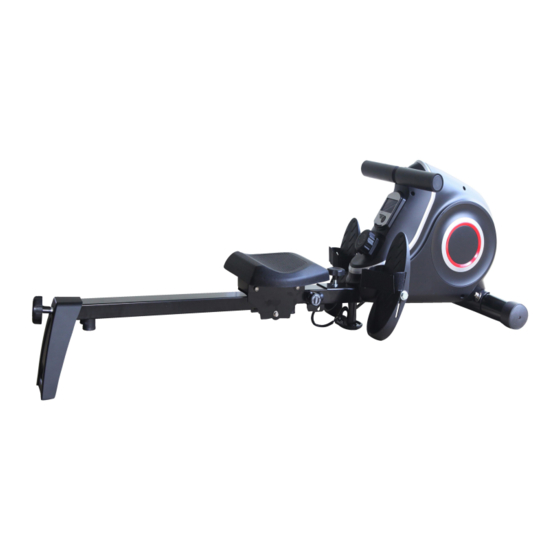

- Page 1 DURAFIT SCULLOS DFIRA001 DURAFIT SCULLOS USER MANUAL IMPORTANT! Please read all instructions carefully before using this product. Retain this manual for future reference. The specifications of this product may vary slightly from the illustrations and are subject to change without notice.
-
Page 2: Important Safety Notice
IMPORTANT SAFETY NOTICE Note the following precautions before assembling and operating the machine. 01- Read this Owner’s Manual and follow the instruction carefully before using the Rowing Machine. Make sure that it is properly assembled and tightened before use. 02- We recommend having two people for assembling this machine. 03- To lubricate all moving parts annually is recommended. - Page 3 EXPLOADED DIAGRAM - 2 -...
-
Page 4: Parts List
PARTS LIST Description Description Mainframe Magnet Knob M10×25 Alloy bushing End cap Bearing Foam grip PU wheel Handlebar Sleeve I Computer Fixer Plate Tension controller Phillips screw M6×20 Flat washer D10×2.0×φ20 Connection wire Nylon nut M10 Protective plate Flat washer D13×2.0×φ26 Rotary drum Pedal Bearing 6000... -
Page 5: Hardware Pack
HARDWARE PACK NOTE: Most of the listed assembly hardware has been packaged separately, but some hardware items have been preinstalled in the identified assembly parts. In these instances, simply remove and reinstall the hardware as assembly is required. Please reference the individual assembly steps and make note of all preinstalled hardware. - 4 -... - Page 6 ASSEMBLY INSTRUCTIONS PREPARATION: Before assembling, make sure that you will have enough space around the item; before assembling please check whether all needed parts are available. It is strongly recommended this machine to be assembled by two or more people to avoid possible injury.
- Page 7 STEP 3: Attach the Rear Support (29) to the Slide Rail (22) with Hexagon bolt (25), Flat washers (8) and Nylon nut (9). Fit the Rear Support Cover (28) to the Rear Support (29), and fixed with the Knob (2) and Phillips tapping screws (27) as shown.
- Page 8 STEP 5: The Rowing machine could be Folded-Up for storage. To fold the machine, first take off the Knob (2) and Flat washer (35), loosen and pull the Pop-pin Knob (15), and then fold up the Slide Rail (22), fix in place with the Pop-pin Knob (15). Fold the Rear Support Cover (28) and fix with the Knob (2) as shown.
-
Page 9: Functions And Operations
OPERATING TEMPERATURE 0OC~+40OC(32OF~104OF) STORAGE TEMPERATURE -10OC~+60OC(14OF~168OF) If you still can’t solve the problems after taking the solutions above, please contact our Customer Care @ contactus@durafit.in or 6383151885/7806811343 to resolve the issue through our Pan- India Service Network. - 8 -... -
Page 10: Batteries Replacement
BATTERIES REPLACEMENT Push the Clip at the bottom of the Computer as shown, dig off the Computer from the designed hole. (Watch out the connective Computer Wire) STORAGE AND MAINTENANCE 1. Keep the rowing machine in a clean dry place. 2. -
Page 11: Warm-Up Phase
USING YOUR EQUIPMENT Using your equipment will provide you with several benefits. It will improve your physical fitness, tone your muscles and in conjunction with a calorie controlled diet, help you lose weight. WARM-UP PHASE The purpose of warming up is to prepare your body for exercise and to minimize injuries. Warm up for two to five minutes before strength-training or aerobic exercising.
