The Whistler Group Inc. - Corporate Offices
3604 NW Frontage Road
Bentonville, AR 72712
1-800-531-0004
The Whistler Group Inc. - Customer Return Center
551 North 13th Street
Rogers, AR 72756
www.whistlergroup.com
P/N 303000 © 2009 The Whistler Group Inc.

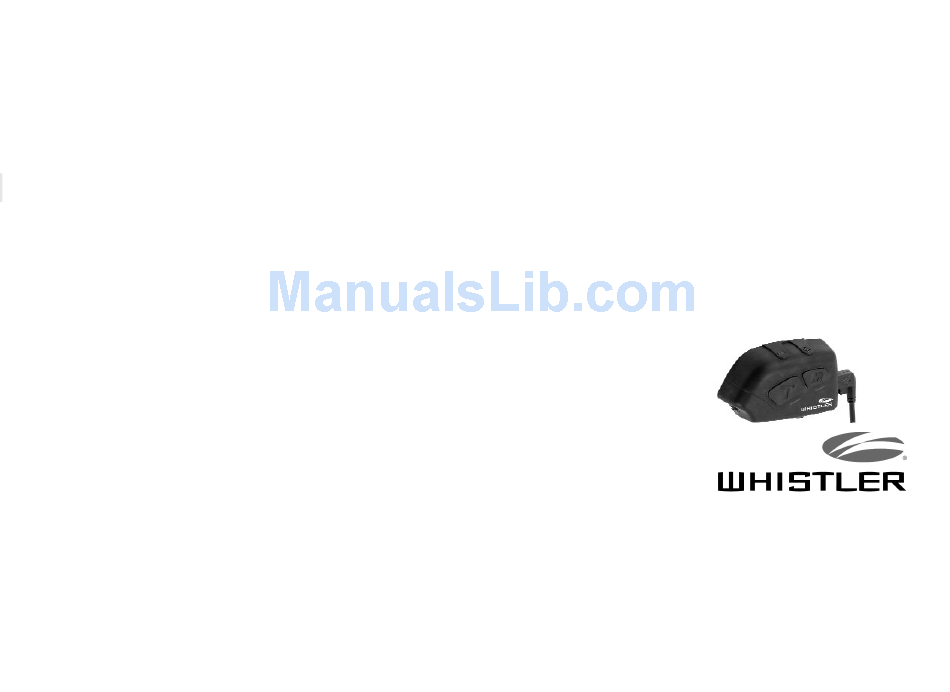

OWNER'S MANUAL
Whistler Bluetooth Headsets
Models:
BT2200 (Class2/CH2)
BT2300 (Class2/CH2)
BT3200 (Class1/CH2)
BT3300 (Class1/CH2)
Advertisement
Table of Contents
Summary of Contents for Whistler BT2200
- Page 1 The Whistler Group Inc. - Corporate Offices 3604 NW Frontage Road Bentonville, AR 72712 1-800-531-0004 The Whistler Group Inc. - Customer Return Center 551 North 13th Street Rogers, AR 72756 www.whistlergroup.com P/N 303000 © 2009 The Whistler Group Inc. OWNER’S MANUAL...
-
Page 2: Table Of Contents
Table of Contents Introduction ..........2-3 ®... -
Page 3: Introduction
Record the serial number of the unit in the space provided in the warranty section of the manual. To fully acquaint yourself with the operation of your Whistler we recommend reading this entire manual or visiting our FAQ page on our website www.whistlergroup.com Enjoy your Whistler and please drive safely. -
Page 4: What Is Bluetooth
Scientific, and Medical (ISM) 2.4 GHz short-range radio frequency bandwidth. Important information concerning the Whistler Bluetooth Headsets. 1). The paring between 2 headsets or headset and another device will be automatically interrupted if the reception distance is exceeded. -
Page 5: Feature - Components
• Stop using the product in case of smoke or Remove when complete. burning smell. • Do not disassemble, repair, or modify, • Do not substitute non Whistler cables, jacks, or the unit. charger. • Do not rotate the BT2200/3200 •... -
Page 6: Match Unit To Helmet Type
Match Unit to Helmet Type 1) Full Face Helment - W/microphone A BT2300/3300 3) Open Face Helment BT2200/3200 Storing 2) Flip-up Helment - When the unit is not in use please consider the following steps. W/microphone B 1). When not using the headset, please store it in a dry place and switch it off to save battery power. -
Page 7: Check Battery Status
Storing and Recharging Headset Battery Charge / Usage Time Usage Time Charge Model Time Stand-by Speaking/music/intercom BT2200/2300 ~180h ~ 3h BT3200/3300 ~90h The usage times may vary depending on the number of connected systems. The battery must be replaced by Whistler personnel. ~14h... -
Page 8: Installing Headset
Installing Headset Select mounting method based on helmet type. 1) Using Bracket A (for attaching to helmet)incl. 3M adhesive tape. Recommened to be placed on the left hand side Double sided adhesive tape II. Please prepare the tape I. Please clean the helment surface before on the bracket and attach it to the helmet... -
Page 9: Button Callouts
Button Callouts Button Functions Function ACTIVATE/DEACTIVATE CHANNEL 2 [+] KEY INCREASE VOLUME ACTIVATE/DEACTIVATE CHANNEL 1 [-] KEY DECREASE VOLUME MASTER KEY [M] PAIRING CHANNEL 2 AS MASTER TALK KEY [T] REDIALING, ACCEPT CALL RESET RESET OF ALL FUNCTIONS, ALL CHANNELS OFF MUTE KEY TEMPORARY MUTING OF CHANNEL 1 &... -
Page 10: Basic Functions And Operation
Basic Functions and Operation Function Key/Action/LED Activate channel 1 Press the [-’] key for 4 seconds until the red LED flashes. Press the [+] key for 3 seconds until the green LED flashes. If the Activate channel 2 headsets haven’t been paired before, the headset go into SLAVE mode and starts flashing rapidly. -
Page 11: Play Music From Mobile Phone
7 seconds until the red LED starts flashing rapidly. 3). On most cell phone’ s displays, you will see the name of the headset now (Whistler 200/300). After you choose the headset, you will be asked for a password. This will be 0000 in most cases. -
Page 12: Pairing To An Audio Device
Pairing to a Cell Phone Receiving a call while listening to music 1). While listening to music from your cell phone, you can receive calls at any time. 2). If you receive a call, the music will be muted and you will hear the ringing of the cell phone. -
Page 13: Operating And Disconnecting To The Audio Device
Intercom Function Headset Distance The BT2200/2300 is intended for communications between the driver and passenger. You will need one headset for each person. The BT3200/330 is intended for communications between the driver of one motorcycle to the driver of another. You will need one headset for each person. -
Page 14: Adjustment Of Microphone Sensitivity
Intercom Function Vox Function (continued) 4). When activating the VOX after is has turned off, a delay of 3 seconds is required before resuming conversation. The activation of the VOX will provide a sound in the headset. 5). Depending on the helmet type and motorcycle, ambient noises could activate the VOX at higher speeds (~60 MPH). -
Page 15: Cell Phone And Intercom
Intercom Function Cell phone and intercom 1). Please connect the phone to the headset on channel 1 as described. 2). Switch off channel 1 again and activate channel 2 as described. 3). Switch on both channels again. 4). You can now listen to music and make calls with your phone and use the intercom on channel 2. -
Page 16: Disconnect Headset From Music / Cell Phone
Intercom Function Disconnect headset from music / cell phone 1). Switch off the headset on channel 1 as described. 2). Switch off your cell phone / MP3 player. 3). As soon as you switch on the headset and the last connected device, the devices will automatically connected (last device search). -
Page 17: Specifications
84(W) x 44.5(H) x 20.5(D) mm Weights Specifications subject to change without notice. Your Whistler headset is expertly engineered and designed to exacting quality standards to provide you with reliable, trouble-free operation. If your unit has been correctly installed BT3200/3300 following the guidelines in this manual, but is not operating optimally, please refer to the troubleshooting guide below. -
Page 18: Fcc Information
Problem: The voice over the microphone is too low. Please make sure that the boom microphone is correctly placed close to your mouth. The white marking has to be in the direction of your mouth (BT2200/3200). In addition, the microphone sensitivity can be adjusted as required (page 24). -
Page 19: Warranty Information
Warranty Information Consumer Warranty This Whistler product is warranted to the original purchaser for a period of one year from the date of original purchase against all defects in materials and workmanship. This limited warranty is void if the unit is abused, modified, installed improperly, if the housing has been removed, or if the serial number is missing. - Page 20 Service Out of Warranty (Continued) The minimum out of warranty service fee for your Whistler product is $75.00 (U.S.). If you require out of warranty service, please return your unit as outlined in the section “Service Under Warranty”...
- Page 21 IMPORTANT: When returning your unit for service, be certain to include a daytime telephone number, and an email address (if applicable). Customer Service If you have questions concerning the operation of your Whistler detector, or require service during or after the warranty period, please call Customer Service at: 1-800-531-0004.
