System Hardware Components
Riptide Hub
On site gateway device for connecting to VRF Gateway and
other integrated devices
Compatible with the following Daikin VRV Models
FXAQ, FXDQ, FXEQ, FXFQ, FXHQ, FXLQ, FXMQ, FXMQ_MF, FXNQ, FXTQ, FXUQ, FXZQ, VAM, VRV4S1, VRV4S2, VRV-3S, VRV-3P,
VRV4S3, VRVX, VRV4-EU, VRV-3R, VRV3C, VRV-4R, VRV-M
©2018 Riptide - Put Your Facilities on Autopilot. All rights reserved.
Universal VRF Gateway
Translator of DIII-Net protocol connected to Daikin VRV via
F1F2 Out

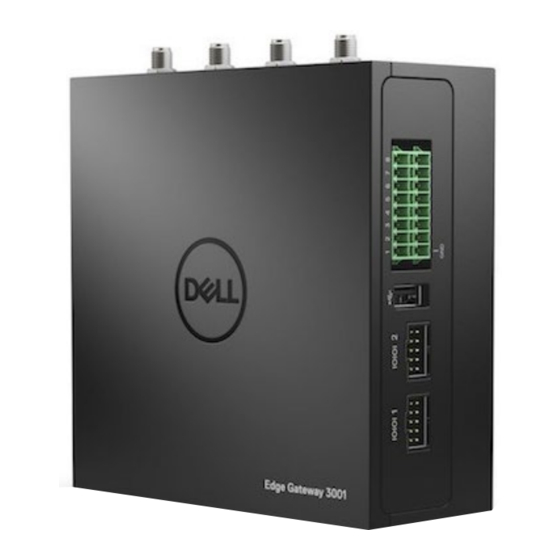

Riptide Edge
Processor
Intel® Atom™ E3805 dual core
Speed / Cache
1.33 GHz / 1 MB
I/O
1 x 10/100 Fast Ethernet (RJ-45) with PoE (15.4W)
Serial Interfaces: 2 x RS-232/422/485.
GPIO Multi-function I/O: 0-5V, 8 channel, independently programmable, DAC, ADC. Optional ZigBee module.
I/O (All models)
USB: 1x USB 2.0, 1x USB 3.0
Integrated MEMS: Accelerometer, Pressure, Temperature and Humidity
Integrated GPS
Wireless LAN: 2.4GHz, 802.11b/g/n/Bluetooth Low Energy 4.0
Optional zigbee on 3001
WWAN/Cellular: 3G or 4G LTE for select countries, US/Canada 4G LTE with AT&T or Verizon
(WWAN card is factory installed only)
Antenna ports for: Wi-Fi/BLE/GPS, 3G or 4G
Dimensions
125 mm wide x 125 mm high x 51 mm deep (4.9 x 4.9 x 2 inches)
Weight
1 kg +/- 0.02 kg (2.2lbs +/- 0.04lbs)
Form Factor
Fanless and headless. Mounting optimized for 75x75mm VESA, wall (standard) mounting and DINrail
mounting. Additional mounting options include perpendicular DIN-rail mount, quick- release DINrail mount,
and cable management control bars for standard mounting.
Environmentals
Ruggedized (shock and vibration resistant) for challenging environments. IP50 rating.
Operating Temperature2: -30C (-22F) to 70C (158F)* - true still air environment, no forced air or
airflow required inside a sealed enclosure).
Storage Temperature: -40C (0% RH) to 70C (20% RH)
Relative Humidity: Operating: 10% to 95% (non-condensing)
Storage/Drives
Industrial-grade Micro-SD card: 8GB / 16GB / 32 GB / 64 GB. Embedded multi-media controller
(eMMC): 8GB standard / 32GB option with WWAN.
Memory
2 GB, DDR3L – 1066 MHz
Operating Framework
Ubuntu Core 16 with Riptide Hub software
Notes
1. Ambient temperature specification is based on free air environment and recommended mounting
2. 2.5inches (63.5mm) open space around the device is recommended for air circulation
3. Actual maximum operating temperature depends on variables including airflow, mounting, and orientation
4. Temperature measured at the center of exposed heatsink base surface shall not exceed 83C
