Summary of Contents for Portacool ISLANDER

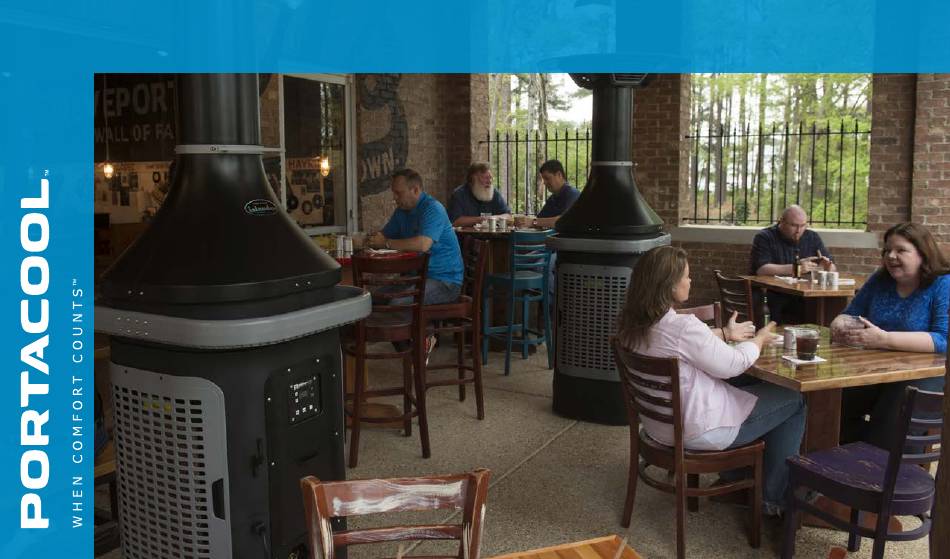

- Page 1 PORTACOOL ISLANDER OWNER’S MANUAL ™...

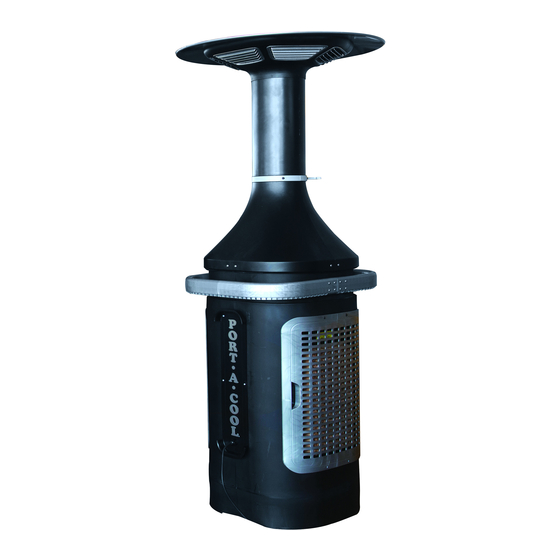

- Page 3 ISLANDER OVERVIEW Adjustable Louvers Air Stack Tilt and Roll Control Manual Handle Panel Water Fill Cooling Media Water Quick Adjustment Access Cover Valve Water Supply...
-
Page 4: Digital Control Panel
DIGITAL CONTROL PANEL The user interface includes touch sensitive buttons for operation of the Portacool Islander. The user interface also includes status indicator Two digits display the unit’s tempera- LEDs and a 7-segment display to show the cooling unit’s status. -
Page 5: Safety Information
• Never wash the evaporative cooler cabinet with a garden hose; water may harm the motor and electrical system. • If the product is damaged or malfunctions, do not continue to operate it. Refer to the warranty, troubleshooting or FAQ section, call Portacool, LLC, Technical Support at... -
Page 6: General Operation
OPERATING PROCEDURES Specifications Each Portacool evaporative cooler has its own set of operational specifications, sizes, weights, voltage frequency, current requirements, etc. Please ask for the specifications for your model from your distributor, check the serial number plate, or visit www.portacool.com for the specifications for your product. Placement of the Portacool Evaporative Cooler There are three primary considerations when deciding where to place the Portacool evaporative cooler. - Page 7 It is important to ensure that the water flow adjustment valve is properly adjusted when first starting the water flow in the Portacool evaporative cooler. Proper water adjustment should leave the pads saturated with water, but not flooded. Pads should appear wet. However, cascading amounts of water can actually reduce cooling efficiency.
-
Page 8: Maintenance And Storage
MAINTENANCE & STORAGE MAINTENANCE 1) Keep the product clean to ensure peak operating performance. 2) The rugged, corrosion-resistant construction ensures low maintenance will be required. Daily Maintenance The pump should be turned off approximately 15 minutes before the fan is turned off. This will allow the cooling pads to dry out and extend their life. -
Page 9: Troubleshooting
TROUBLESHOOTING The Portacool evaporative cooler consists of three systems — the fan system, the electrical system, and the water system. It is important to determine with which of the systems the problem is associated. Certain problems may be associated with more than one system. A careful check of all systems should be made to fully understand the extent of the problem. - Page 10 The following troubleshooting guide is intended to address the most common symptoms which may occur. If you are unable to resolve the issue, please call Technical Support. Turn off all power to the cooler before attempting to troubleshoot any of the following symptoms. SYMPTOM POSSIBLE CAUSES REMEDY...
-
Page 11: Technical Support
The defective part need to be returned to Portacool, LLC, labeled with the RMA number within 90 days of receipt of replacement parts. The customer / distributor can call Tech Support to get an RMA number to send the defective part back to Portacool, LLC. Once the part is received by Portacool, a replacement part will be sent at no charge. - Page 12 A. Yes. The introduction of outside air is what keeps the air fresh and optimizes the evaporative cooling process. The Portacool ISLANDER® is great for outdoor use, but can also be used in open interior areas by placing the unit next to a...
-
Page 15: Replacement Parts List
ACCDOOR-PAT-208 WATER FILL DOOR - BACK ACCESS PANEL MOUNTING DRAIN-PLUG-34 3/4” NPT PLUG FOR DRAIN PAC-PLB-14 1/4”X3/4” GHT BRASS FITTING Islander HOSE ADAPTER AIRDUCT-PAT-203 AIR DUCT 4 OUTLET LOUVER MOUNTING SECTION DUCTTOP-PAT-204 AIR DUCT TOP (2014) INTERNAL DIVERTER SECTION PADMF4019/G 4”... - Page 16 1-936-598-5651 • 1-888-COOLAID SUPPORT@PORTACOOL.COM VISIT PORTACOOL.COM MANR0004 OR CALL 1-936-598-5651 FOR MORE INFORMATION Portacool, LLC • Manufacturer of Portacool™ portable evaporative coolers and KÜÜL® Pads evaporative media 709 Southview Circle • Center, Texas 75935 • 936-598-5651 • www.portacool.com • www.kuulpads.com...
